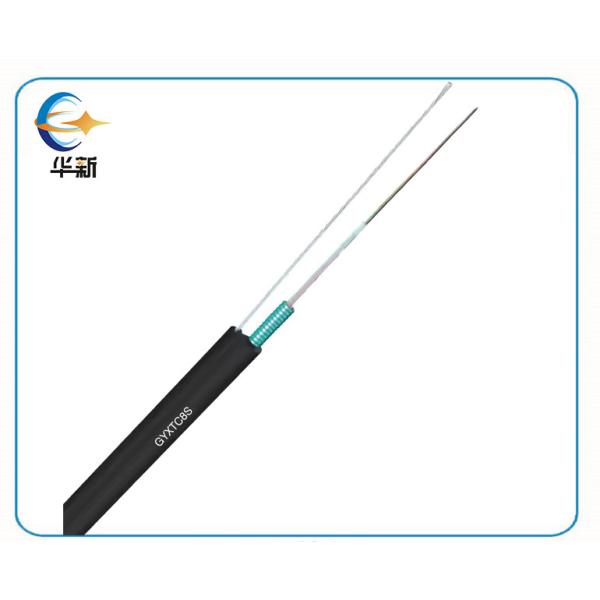

Aerial Fiber Optic Outdoor Armored Loose Tube Figure 8 GYXTC8S Fiber Optic Cable
Aerial Fiber Optic Outdoor Armored Loose Tube Figure 8 GYXTC8S Fiber Optic Cable
Aerial Fiber Optic Outdoor Armored Loose Tube Figure 8 GYXTC8S Fiber Optic Cable
Aerial Fiber Optic Outdoor Armored Loose Tube Figure 8 GYXTC8S Fiber Optic Cable
Specifications
Brand Name :
Huaxin or OEM
Model Number :
Outdoor Fiber Optic Cable GYXTC8S
Certification :
CE,TLC,ISO9001
Place of Origin :
China
MOQ :
2000M
Price :
$0.2/m
Payment Terms :
L/C,T/T
Supply Ability :
500km PER DAY
Delivery Time :
7-14work days
Packaging Details :
1000-2000km per tray, according to customer's requirement Plastic tray or wooden tray. Plastic or pearl cotton outer cover, suitable for ocean transportation
Description

Aerial Fiber Optic Factory Supply Outdoor Armored Loose Tube Figure 8 GYXTC8S Fiber Optic Cable Manufacturer Supplier

GYXTC8S Micro Uni-Loose Tube None Armor Cable is designed especially for aerial installations.

With fiber counts up to 24 fibers.

Basic Info.

Model NO.
GYXTC8S
Material Shape
Round Wire
Allowed Lateral Pressure
100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength
1000N<10000N
Certification
CE,TLC,ISO9001
Fiber Type
G652D, Om1 Om2 Om3 Om4 9/125 50/125 62.5/125
Fiber Count
2-24
Tube
Central Loose Tube
Armored
No Armored
Material of Jacket
PE/LSZH /Flame Retardant PE
Diameter of Self Support Member
2.0mm Steel Wire
Bend Radius
Static 10*Cable-D: Dynamic 20*Cable-D
Max Tension
1kn
Applications
Hanging on Poles.
Self-Supporting
Steel Wire
Transport Package
Wooden Drum Iron-Wooden Drum with Fumigated or Not
Specification
CE
Trademark
OEM
Origin
China
HS Code
85447000
Production Capacity
500km/Day

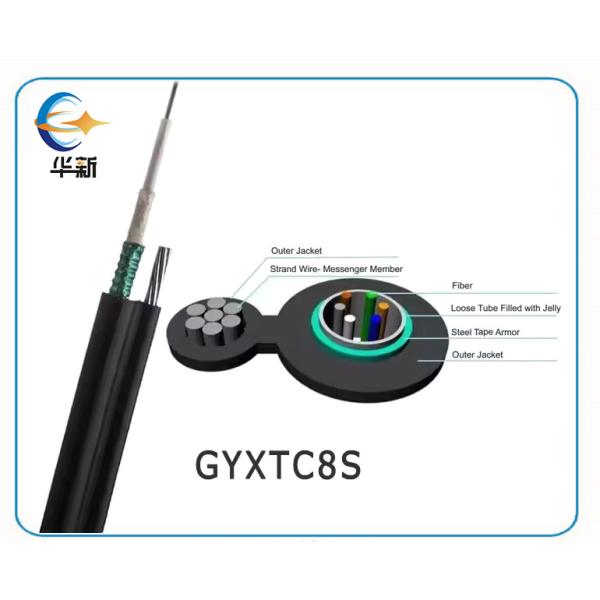

Product Construction:

Fiber:

2-24 fibers

Uni-loose tube gel-filled

Messenger member:

2.1mm galvanized steel

Outer Jacket:

Black UV and waterproof polyethylene (PE).

Features:

Uni-Loose tube gel-filled construction for superior fiber protection.

Self-supporting Figure 8 design.

Optical Characteristics:

Fiber Type

G.652

G.655

50/125^m

62.5/125^m

Attenuation

(+20X)

850 nm

<3.0 dB/km

<3.3 dB/km

1300 nm

<1.0 dB/km

<1.0 dB/km

1310 nm

<0.36 dB/km

<0.40 dB/km

1550 nm

<0.22 dB/km

<0.23 dB/km

Bandwidth

850 nm

>500 MHz-km

>200 Mhz-km

1300 nm

>500 MHz-km

>500 Mhz-km

Numerical Aperture

0.200±0.015 NA

0.275±0.015 NA

Cable Cut-off Wavelength cc

<1260 nm

<1450 nm

Structure and Technical Specifications

Fiber

Count

Nominal

Diameter

(mm)

Nominal

Weight

(kg/km)

Allowable Tensile Load

(N)

Allowable Crush Resistance(N/100mm)

Short Term

Long Term

Short Term

Long Term

2~12

5.4*10.5

44

1500

500

200

100

>12

Available upon the customer's request

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people

for more detailed information.

Packaging & Delivery

Package Size
80.00cm * 80.00cm * 80.00cm
Package Gross Weight
200.000kg

Aerial Fiber Optic Outdoor Armored Loose Tube Figure 8 GYXTC8S Fiber Optic Cable

Cable in stock, ship same day.

1 or 2km for a wooden roll.

One roll packed with carton.

Other length is also avaiable without MOQ.

Factory & Production

Aerial Fiber Optic Outdoor Armored Loose Tube Figure 8 GYXTC8S Fiber Optic Cable

Certifications

Aerial Fiber Optic Outdoor Armored Loose Tube Figure 8 GYXTC8S Fiber Optic Cable

Exhibitions

Aerial Fiber Optic Outdoor Armored Loose Tube Figure 8 GYXTC8S Fiber Optic Cable

FAQ
1. Are you real manufacturer?
Yes, our factory is located in Shandong, China,
2. Can you provide the samples?
Yes, Samples free of charge, but freight necessary to bear yourself.
3. What is the delivery time?
It takes 3-5 days for the samples, 7-15 days for the bulk production. It depends on the order quantity.
4. Can you supply customized products and logo? (OEM/ODM)
Yes, we can provide the OEM/ODM, please feel free to let us know your requirements.
5.Do you have warranty for your products?
Yes,-There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands
