GJFJBV Flat Fiber Optic Cable Double Protection Armor Layer Aramid Yarns Single Mode
GJFJBV Flat Fiber Optic Cable Double Protection Armor Layer Aramid Yarns Single Mode
Specifications
Brand Name :
HUAXIN/ OEM
Model Number :
Indoor Fiber Optic Cable GJFJBV duplex cable
Certification :
ISO9001,ISO14001,ISO45001,CE
Place of Origin :
CHINA
MOQ :
2000KM
Price :
$0.03-$0.1
Payment Terms :
L/C,T/T
Supply Ability :
2000KM PER DAY
Delivery Time :
5-30Work Days
Packaging Details :
1000-2000km per tray, according to customer's requirement Plastic tray or wooden tray. Plastic or pearl cotton outer cover, suitable for ocean transportation.
Description
GJFJBV Fiber Optic Cable Flat Double Protection Armor Layer Aramid Yarns Single Mode

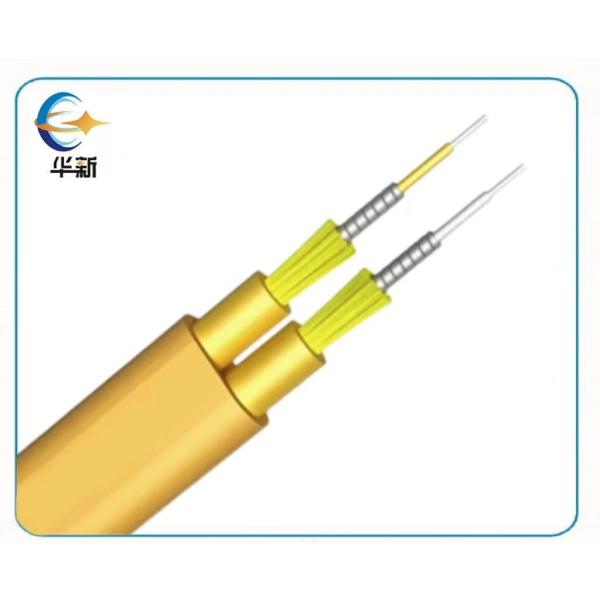

This armored Flat Twin Duplex Indoor Cable utilizes either 900μm or 600μm flame-retardant tight buffer fiber as the optical communication medium. The tight buffer fiber is reinforced with a layer of steel wire and aramid yarn serving as strength member units. This assembly is then extruded with a layer of PVC or LSZH material to act as the inner jacket. The cable is finalized with a layer of flat PVC or LSZH jacket, providing an outer sheath with low smoke, zero halogen, and flame-retardant properties.

Application

  • Indoor Distribution: Designed for indoor distribution, this cable is well-suited for communication within buildings
  • Compatibility with Communication Equipment: Tailored to meet the requirements of communication equipment,ensuring suitability and effective service
  • Pigtail Application: Ideal for use as a pigtail, seamlessly connecting with communication equipment for reliable performance

Characteristic

  • Flat Twin Configuration with Two Single Fibers: Structured with a flat twin configuration, the cable consists of two single fibers as the basic unit.
  • 0.6 Tight Buffer with Kevlar Yarn and Steel Armored: Each single fiber is equipped with a 0.6 tight buffer, reinforced with Kevlar yarn and steel armor for robust protection.
  • Flexible or Independent Strength Member in Outer Sheath: The outer sheath of the cable features flexibilityor an independent strength member, providing additional support and adaptability.
  • Excellent Mechanical and Environmental Performance: Engineered for superior mechanical and environmental performance, the cable is designed to withstand various conditions while maintaining reliable functionality.

Fiber characteristic

Fiber style Unit SM
G652		 SM
G652D		 MM
50/125		 MM
62.5/125		 MM
OM3-300
condition nm 1310/1550 1310/1550 850/1300 850/1300 850/1300
attenuation dB/km ≤ ≤ ≤ ≤3.0/1.0 ≤3.0/1.0
0.36/0.23 0.34/0.22 3.0/1.0 ---- ----
Dispresion 1550nm Ps/(nm*km) ---- ≤18 ---- ---- Dispresion
1625nm Ps/(nm*km) ---- ≤22 ---- ---- 　
Bandwith 850nm MHZ.KM ---- ---- ≧400 ≧160 Bandwith
1300nm MHZ.KM ---- ---- ≧800 ≧500 　
Zero dispersion wavelength nm 1300-1324 ≧1302,
≤1322		 ---- ---- ≧ 1295,
≤1320
Zero dispresion slope nm ≤0.092 ≤0.091 ---- ---- ----
PMD Maximum Individual Fibr 　 ≤0.2 ≤0.2 ---- ---- ≤0.11
PMD Design Link Value Ps(nm2*km) ≤0.12 ≤0.08 ---- ---- ----
Fibre cutoff wavelength λc nm ≧ 1180,
≤1330		 ≧1180,
≤1330		 ---- ---- ----
Cable sutoff wavelength λcc nm ≤1260 ≤1260 ---- ---- ----
MFD 1310nm um 9.2+/-0.3 9.2+/-0.3 ---- ---- ----
1550nm um 10.4+/-0.5 10.4+/-0.5 ---- ---- ----
Numerical Aperture(NA) 　 ---- ---- 0.200+/
-0.013		 0.275+/-0.
013		 0.200+/-0
.013
Step(mean of bidirectional
measurement)		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
Irregularities over fiber length and point dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10

Company Profile

GJFJBV Flat Fiber Optic Cable Double Protection Armor Layer Aramid Yarns Single Mode

Certification

GJFJBV Flat Fiber Optic Cable Double Protection Armor Layer Aramid Yarns Single Mode

Exhibition

GJFJBV Flat Fiber Optic Cable Double Protection Armor Layer Aramid Yarns Single Mode

Packaging and Transportation

GJFJBV Flat Fiber Optic Cable Double Protection Armor Layer Aramid Yarns Single Mode

FAQ

  • Do you accept customized packaging/labels?

We can provide OEM packaging (such as customer LOGO box label), but need to confirm the design in advance.

  • Can the length of optical fiber be customized?

Yes, we support customization service and can provide specific length of fiber optic products according to your requirements.

  • Can you provide samples?

We can provide free samples, but the shipping cost is borne by the customer.

  • Is the quality of your fiber optic cable products guaranteed?

All our fiber optic cable products are ISO 9001 certified.

  • How do I make a payment?

Support T/T (Telegraphic Transfer), L/C (Letter of Credit), 30% deposit, 70% final payment before shipment.
