Chemical Solution Explosion-Proof Internal Scraper Self-Cleaning Filter Housing
Chemical Solution Explosion-Proof Internal Scraper Self-Cleaning Filter Housing
Chemical Solution Explosion-Proof Internal Scraper Self-Cleaning Filter Housing
Chemical Solution Explosion-Proof Internal Scraper Self-Cleaning Filter Housing
Specifications
Brand Name :
HUATAO
Model Number :
HT008
Certification :
ISO,CE,SGS
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD4000-15000 PER SET
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500Sets/Month
Delivery Time :
20-50 DAYS
Packaging Details :
WOODEN CASE
Goods :
Chemical Solution Explosion-Proof Internal Scraper Self-Cleaning Filter Housing
Flow Rate :
Customized
Filtration Accuracy :
Min. 50micron
Filter body thickness :
4mm-8mm
Filter body material :
SS304 or SS316 or customized

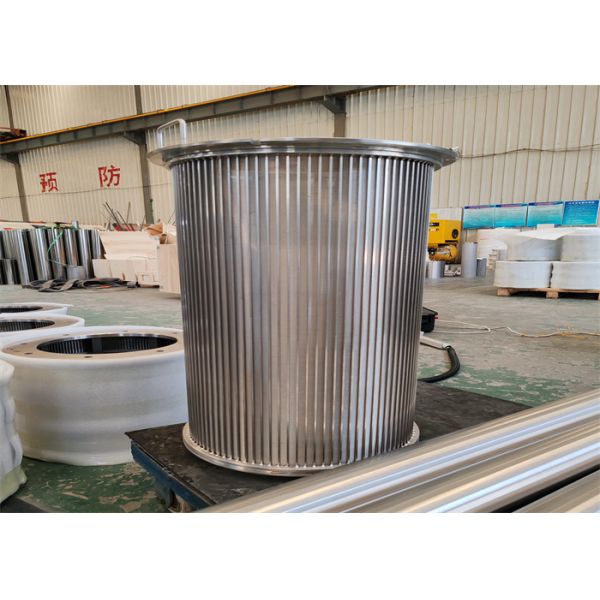

Filter Cartridge :
V-Slot with SS316
Scraper Material :
PTFE
Inlet/Outlet Diameter :
Customized
Filter Surface :
Mirror Polish/Sand Blasting
HS Code :
8421299090
Warranty Period :
1 Year
Working Pressure :
as per customer requirement
Description
Chemical Solution Explosion-Proof Internal Scraper Self-Cleaning Filter Housing
Introduction For Chemical Solution Explosion-Proof Internal Scraper Self-Cleaning Filter Housing
The inlet allows liquid to flow into the filter unit. In the course of filtering, impurities contained in the water will deposit onto the stainless steel filter mesh, accumulating layer by layer on the inside. Our self-cleaning filter can be configured to run automatically, semi-automatically, or manually as required.
Chemical Solution Explosion-Proof Internal Scraper Self-Cleaning Filter Housing
Technical Parameters For Chemical Solution Explosion-Proof Internal Scraper Self-Cleaning Filter Housing
Filter Model Filter Inner Dia. Filter Height Thickness Filter Area Filtration Precision
HT-D219 250mm 1000 3 0.2 50microns
HT-D273 300mm 1450mm 4mm 0.5
HT-D325 350mm 1600mm 4mm 0.6
HT-D400 450mm 1700mm 6mm 0.7
HT-D450 500mm 1750mm 6mm 0.9
HT-D550 600mm 1850mm 6mm 2.0
HT-D800 850mm 2000mm 6mm 2.5

Working Principle For Chemical Solution Explosion-Proof Internal Scraper Self-Cleaning Filter Housing

1)Automatic Cleaning —Mode 1 (Timed Cycle)

Motor:Operates and stops according to a preset schedule.When running,the motor drives the shaft to rotate,allowing the scraper to remove impurities accumulated on the filter cartridge .After the set running time is reached,the motor stops working.After the preset stopping time is reached,the motor starts running again .This cycle continues automatically.

Drain Valve:Opens and closes according to preset schedule; The loop control is identical to the motor loop control.

2)Automatic Cleaning —Mode 2 (Differential Pressure Start)

The device is equipped with pressure sensors at both the inlet and outlet to monitor the inlet pressure and outlet pressure.When the pressure difference between the inlet and outlet reaches the preset value,the device automatically transitions from the circulation state of Mode 1 to this mode;the motor activates, and the discharge process begins immediately.

3)Manual Cleaning:

The operating status of the motor and drain valve is controlled entirely via manual switches by worker.

Chemical Solution Explosion-Proof Internal Scraper Self-Cleaning Filter Housing

Feature For Chemical Solution Explosion-Proof Internal Scraper Self-Cleaning Filter Housing
1. High filtration accuracy, the minimum accuracy can reach 20 microns.
2. No disposable consumables are produced, saving consumable costs and environmental protection treatment costs.
3. High degree of automation, no need for manual cleaning, dual control of pressure difference and time, to achieve full automation of cleaning
4. Closed filtration to prevent leakage of hazardous materials, which is conducive to safe and efficient production.
Application Industry For Chemical Solution Explosion-Proof Internal Scraper Self-Cleaning Filter Housing
water treatment, paper making,petrochemical, sanitary, paint, ink,grease, food and beverage, etc.
Chemical Solution Explosion-Proof Internal Scraper Self-Cleaning Filter Housing
