Specifications
Place of Origin :
China, GuangdongChina
IO Processor: :
STM32F103
FMU Processor: :
STM32H753
compatible brand :
DJI
private mold :
No
Brand Name :
Holybro
Material :
PVC
MOQ :
1 piece
Price :
$645-650 / piece
Description
Product Features
IO Processor: STM32F103
brand name Holybro
FMU Processor: STM32H753
private mold No
place of origin Guangdong,China
Features

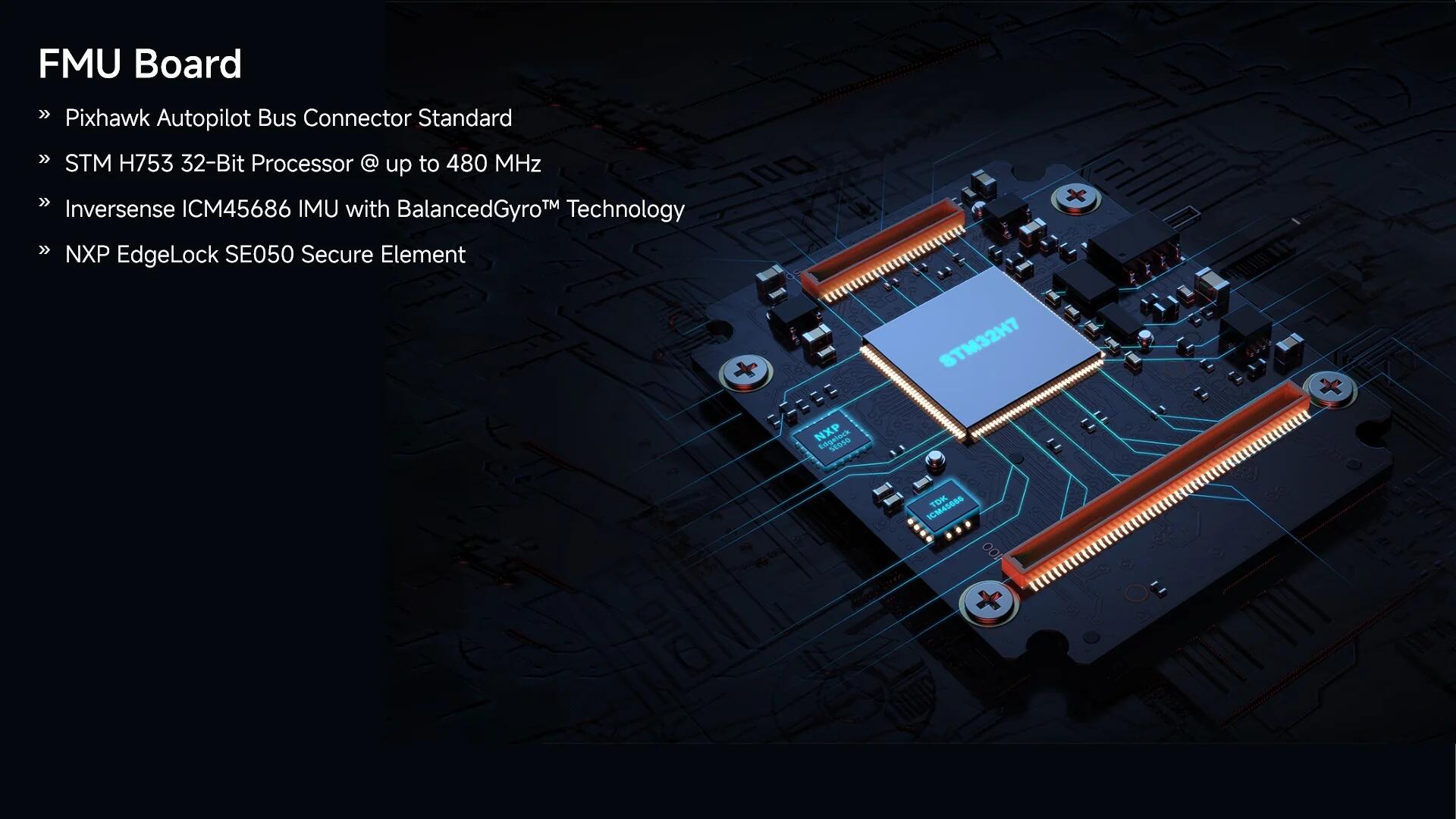

* FMU Processor: STM32H753
* 32 Bit Arm Cortex-M7, 480MHz, 2MB flash memory, 1MB RAM
* IO Processor: STM32F103
* 32 Bit Arm Cortex-M3, 72MHz, 64KB SRAM

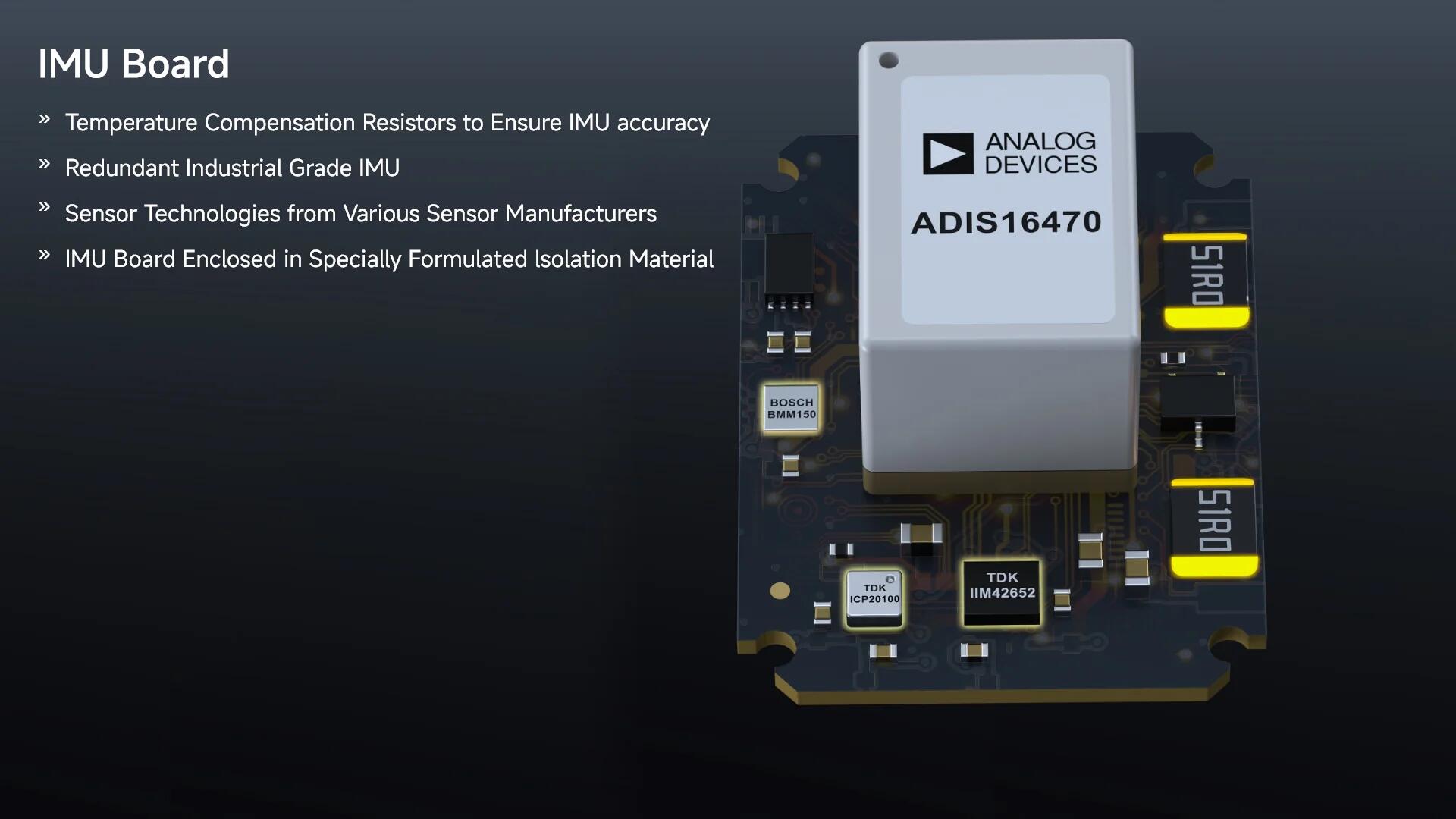

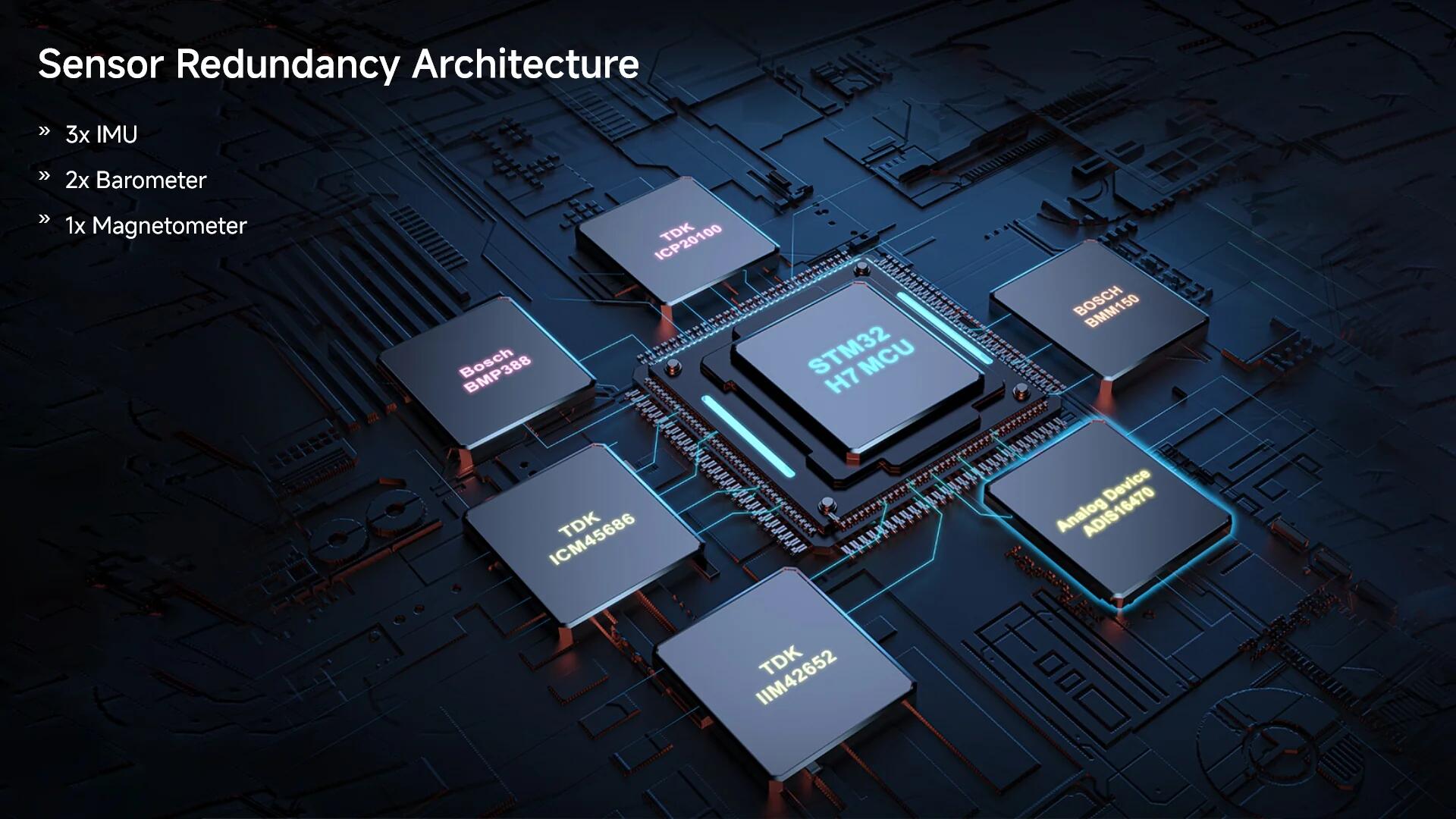

* On-board sensors
* Accel/Gyro: ADIS16470 * ±40g, Vibration Isolated, Industrial IMU Accel/Gyro: IIM-42652 * ±16g, Vibration Isolated, Industrial IMU
Accel/Gyro: ICM-45686 with BalancedGyro Technology * ±32g, Hard Mounted
Barometer: ICP20100Barometer: BMP388Mag: BMM150 Electrical data
* Voltage Ratings:
* Max input voltage: 6VUSB Power Input: 4.75~5.25VServo Rail Input: 0~36V
* Current Ratings:
* Telem1 output current limiter: 1.5AAll other port combined output current limiter: 1.5A
Mechanical data
* Dimensions
* Flight Controller Module: 38.8 x 31.8 x 30.1mmStandard Baseboard: 52.4 x 102 x 16.7mm (Aluminum)Mini Baseboard: 43.4 x 72.8 x 14.2 mm
* Weight
* Flight Controller Module: 50gStandard Baseboard: 72.5g (A
Product Description
Factory Outlet Holybro Pixhawk 6X Pro H753 Flight Controller Module Standard Base PM02D RC Racing Helicopter Airplane Aircraft
Factory Outlet Holybro Pixhawk 6X Pro H753 Flight Controller Module Standard Base PM02D RC Racing Helicopter Airplane Aircraft
Factory Outlet Holybro Pixhawk 6X Pro H753 Flight Controller Module Standard Base PM02D RC Racing Helicopter Airplane Aircraft
Factory Outlet Holybro Pixhawk 6X Pro H753 Flight Controller Module Standard Base PM02D RC Racing Helicopter Airplane Aircraft
Factory Outlet Holybro Pixhawk 6X Pro H753 Flight Controller Module Standard Base PM02D RC Racing Helicopter Airplane Aircraft
Factory Outlet Holybro Pixhawk 6X Pro H753 Flight Controller Module Standard Base PM02D RC Racing Helicopter Airplane Aircraft

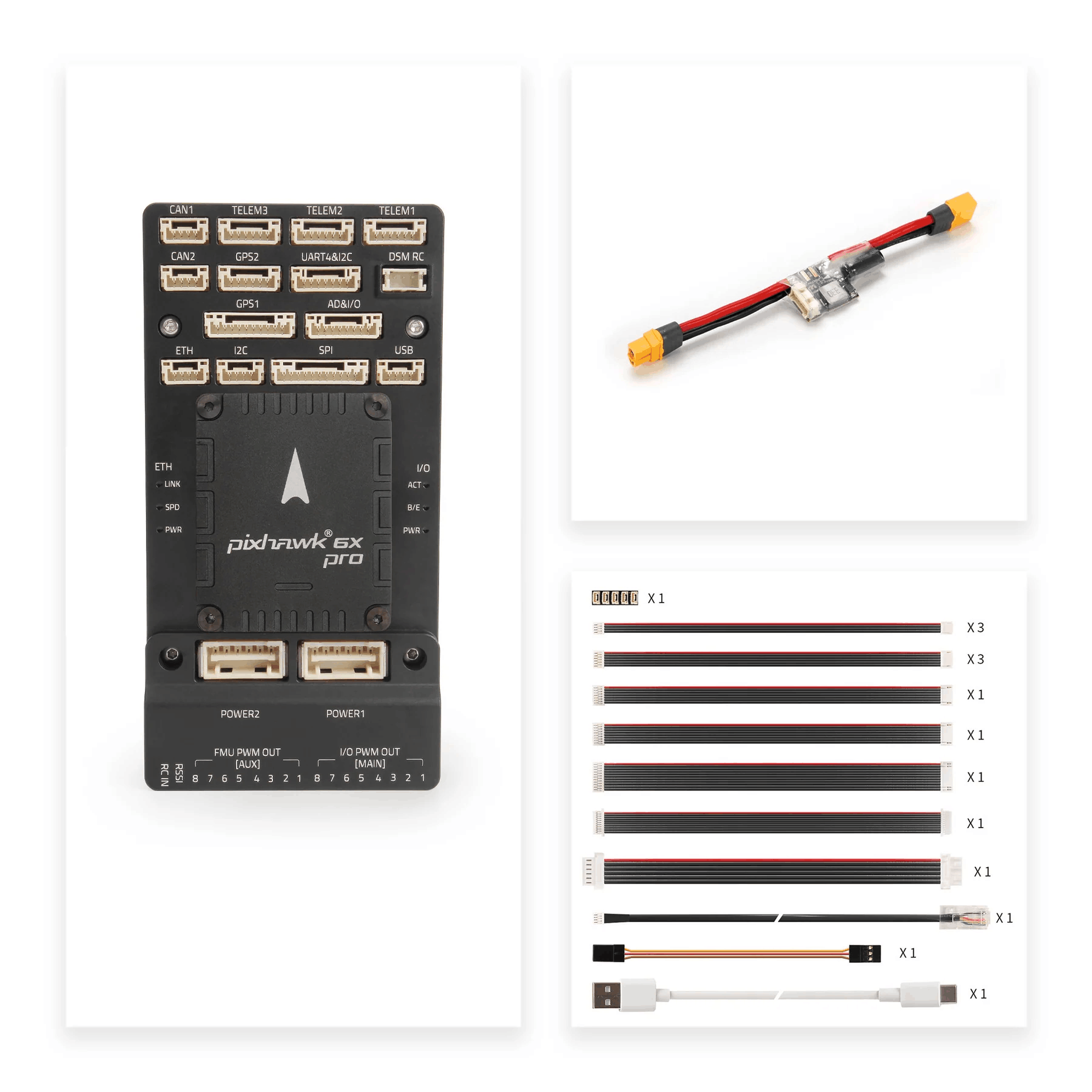

Package Includes
SKU 11070 includes:
* Pixhawk 6X Pro Flight Controller Module
SKU 20260/20261 includes:
* Pixhawk 6X Pro Flight Controller Module
* Pixhawk Standard Baseboard / Mini Baseboard
* PM02D HV Power Module
* Cable Set
