Holybro PM03D Power Module Compatible To Flight Controller Uses I2C Monitor W/ XT-30 60 Connectors For Pixhawk 5X DIY
Holybro PM03D Power Module Compatible To Flight Controller Uses I2C Monitor W/ XT-30 60 Connectors For Pixhawk 5X DIY
Holybro PM03D Power Module Compatible To Flight Controller Uses I2C Monitor W/ XT-30 60 Connectors For Pixhawk 5X DIY
Holybro PM03D Power Module Compatible To Flight Controller Uses I2C Monitor W/ XT-30 60 Connectors For Pixhawk 5X DIY
Holybro PM03D Power Module Compatible To Flight Controller Uses I2C Monitor W/ XT-30 60 Connectors For Pixhawk 5X DIY
Holybro PM03D Power Module Compatible To Flight Controller Uses I2C Monitor W/ XT-30 60 Connectors For Pixhawk 5X DIY
Holybro PM03D Power Module Compatible To Flight Controller Uses I2C Monitor W/ XT-30 60 Connectors For Pixhawk 5X DIY
Holybro PM03D Power Module Compatible To Flight Controller Uses I2C Monitor W/ XT-30 60 Connectors For Pixhawk 5X DIY
Holybro PM03D Power Module Compatible To Flight Controller Uses I2C Monitor W/ XT-30 60 Connectors For Pixhawk 5X DIY
Holybro PM03D Power Module Compatible To Flight Controller Uses I2C Monitor W/ XT-30 60 Connectors For Pixhawk 5X DIY
Holybro PM03D Power Module Compatible To Flight Controller Uses I2C Monitor W/ XT-30 60 Connectors For Pixhawk 5X DIY
Holybro PM03D Power Module Compatible To Flight Controller Uses I2C Monitor W/ XT-30 60 Connectors For Pixhawk 5X DIY
Specifications
MOQ :
1 piece
Brand Name :
Holybro
Max current sensing :
164A
XT-60 :
battery
Max current :
120A
compatible brand :
DJI
Place of Origin :
China, GuangdongChina
Maximum input voltage :
6S battery
Material :
PVC
private mold :
Yes
Rated current :
60A
Price :
$46 / piece
Description
Product Features
Max current sensing 164A
Rated current 60A
brand name Holybro
XT-60 battery
private mold Yes
place of origin Guangdong,China
Maximum input voltage 6S battery
Max current 120A
Products Description
Overview

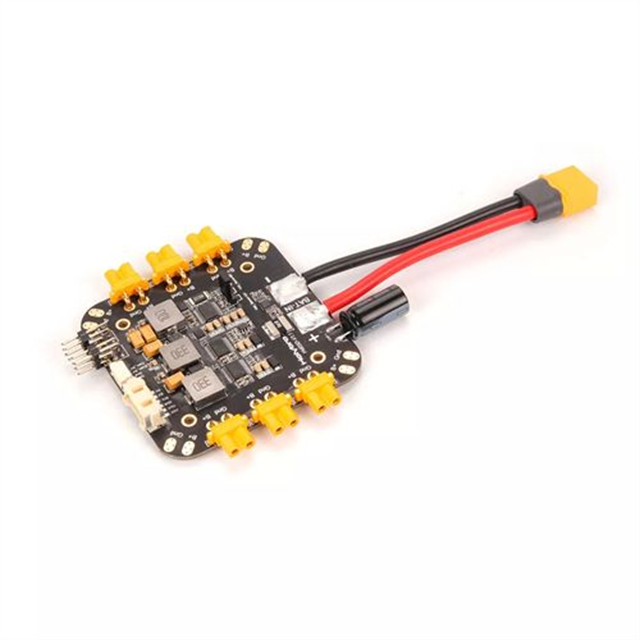

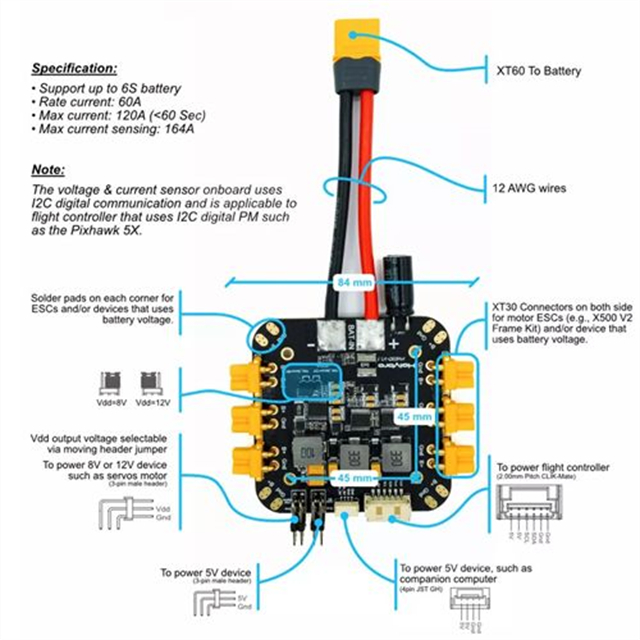

PM03D provides regulated power supply as well as current consumption and battery voltage measurements via I2C digital protocol all
through a 6pin 2.00mm CLIK-Mate cable. Compatible to flight controller that uses I2C power monitor such as the Pixhawk 5X and up.
It is design for multi-rotor like the X500 V2. It has both XT-30 & XT-60 connectors preinstalled for motor ESCs and Battery, as well as two 5V BEC and a selectable 8V/12V output different kinds of peripheral devices.
Note: This PM is not compatible with flight controller that uses analog PM such as the Pixhawk4, Pixhawk4 Mini, pix32 v5, or Durandal flight controllers.
Features
Plug & play, no additional setup required for QGroundcontrol & Mission Planner
XT-30 connectors and solder pads for easy motor ESC connection
Onboard voltage regulators: two 5.2V & one selectable 8V/12V
5V/A ports for powering companion computer or peripheral device
Selectable 8V or 12V triple row pin header for powering peripheral device
Product packaging
Holybro PM03D Power Module x 1
Details Images
Holybro PM03D Power Module Compatible To Flight Controller Uses I2C Monitor W/ XT-30 60 Connectors For Pixhawk 5X DIY
Holybro PM03D Power Module Compatible To Flight Controller Uses I2C Monitor W/ XT-30 60 Connectors For Pixhawk 5X DIY
Holybro PM03D Power Module Compatible To Flight Controller Uses I2C Monitor W/ XT-30 60 Connectors For Pixhawk 5X DIY
Holybro PM03D Power Module Compatible To Flight Controller Uses I2C Monitor W/ XT-30 60 Connectors For Pixhawk 5X DIY
Holybro PM03D Power Module Compatible To Flight Controller Uses I2C Monitor W/ XT-30 60 Connectors For Pixhawk 5X DIY
Holybro PM03D Power Module Compatible To Flight Controller Uses I2C Monitor W/ XT-30 60 Connectors For Pixhawk 5X DIY
