Specifications
Material :
Plastic
Place of Origin :
China, GuangdongChina
Brand Name :
HolyBro
private mold :
Yes
Tracks under low light conditions of :
5 lux
Price :
$115-125 / piece
compatible brand :
DJI
MOQ :
2 pieces
Description
Product Features
Tracks under low light conditions of 5 lux
private mold Yes
Material Plastic
place of origin Guangdong,China
Product Description
* Integrated Optical Flow and Rangefinder Module
* PixArt Optical Flow Sensor for Accurate Motion Tracking
* Broadcom ToF Sensor for Precise Distance Measurement
* Infrared LED for Optical Low-Light Performance
* DroneCAN Protocol
* PixArt PAA3905E1 Optical Flow Sensor * Tracks under low light conditions of >5 lux
* Effective Viewing angle up to 42°
* Wide working ranges from 80mm up to 30m
* Up to 7.4 rad/s
* 40 mW 120° viewing angle IR LED built onto the board for improved low-light operation
* Broadcom AFBR-S50LV85D Time-of-Flight Distance Sensor
* Integrated 850 nm laser light source
* Field-of-View (FoV) of 12.4° x 6.2° with 32 pixels
* Typical distance sensing range up to 30m
* Operation of up to 200k Lux ambient light
* Works well on all surface conditions
* Transmitter beam of 2° x 2° to illuminate between 1 and 3 pixels
* InvenSense ICM-42688-P 6-Axis IMU
* STM32F412CEU6 MCU
* Pixhawk Standard CAN Connector (4 Pin JST GH)
* Compact Form Factor
* Software-Controlled CAN Termination

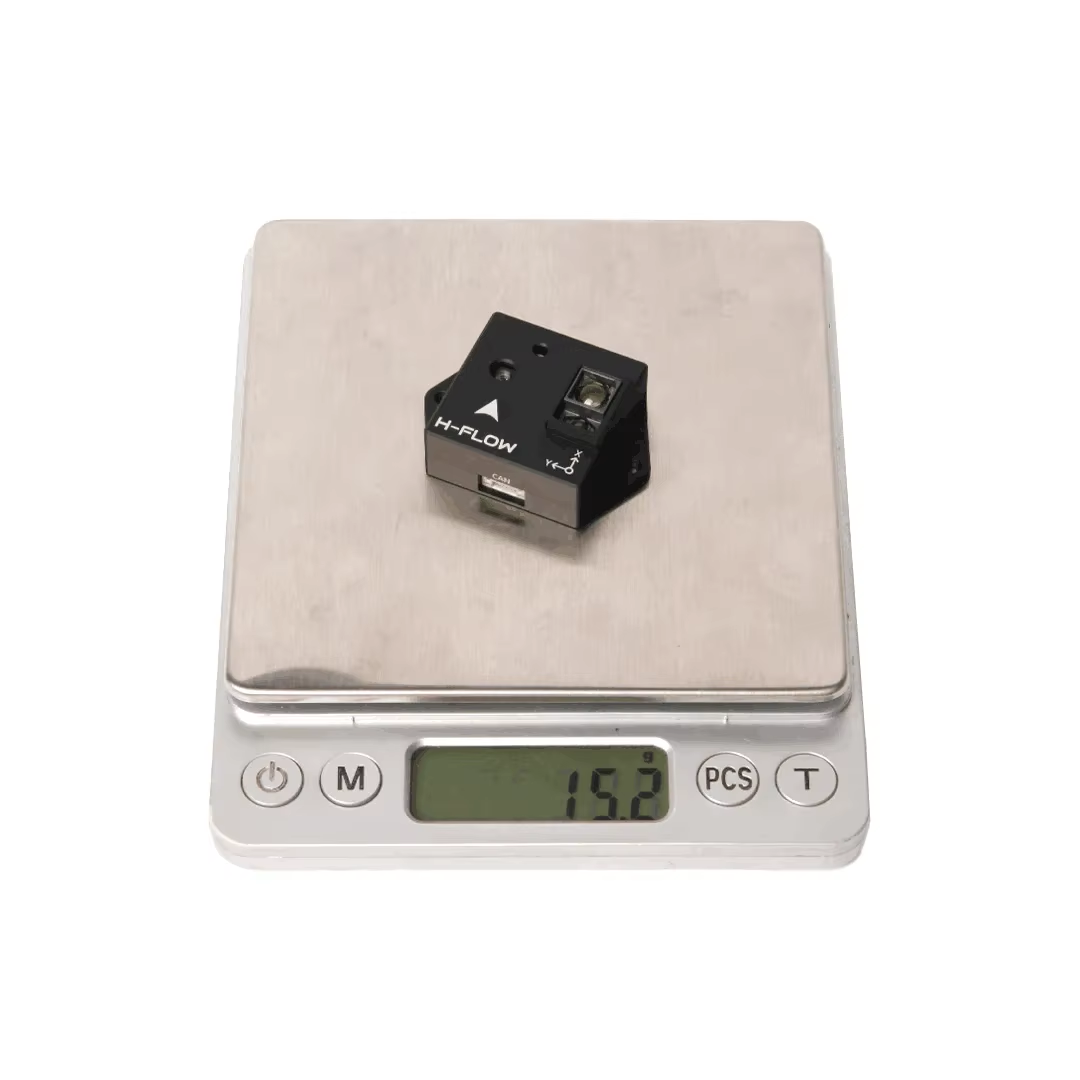

* Weight: 15.2g (3.5g without casing)
Holybro H-Flow Optical Flow Sensor Rangefinder Module DroneCAN Protocol Integrated Pixhawk Smart Camera RC DroneHolybro H-Flow Optical Flow Sensor Rangefinder Module DroneCAN Protocol Integrated Pixhawk Smart Camera RC DroneHolybro H-Flow Optical Flow Sensor Rangefinder Module DroneCAN Protocol Integrated Pixhawk Smart Camera RC DroneHolybro H-Flow Optical Flow Sensor Rangefinder Module DroneCAN Protocol Integrated Pixhawk Smart Camera RC DroneHolybro H-Flow Optical Flow Sensor Rangefinder Module DroneCAN Protocol Integrated Pixhawk Smart Camera RC DroneHolybro H-Flow Optical Flow Sensor Rangefinder Module DroneCAN Protocol Integrated Pixhawk Smart Camera RC Drone

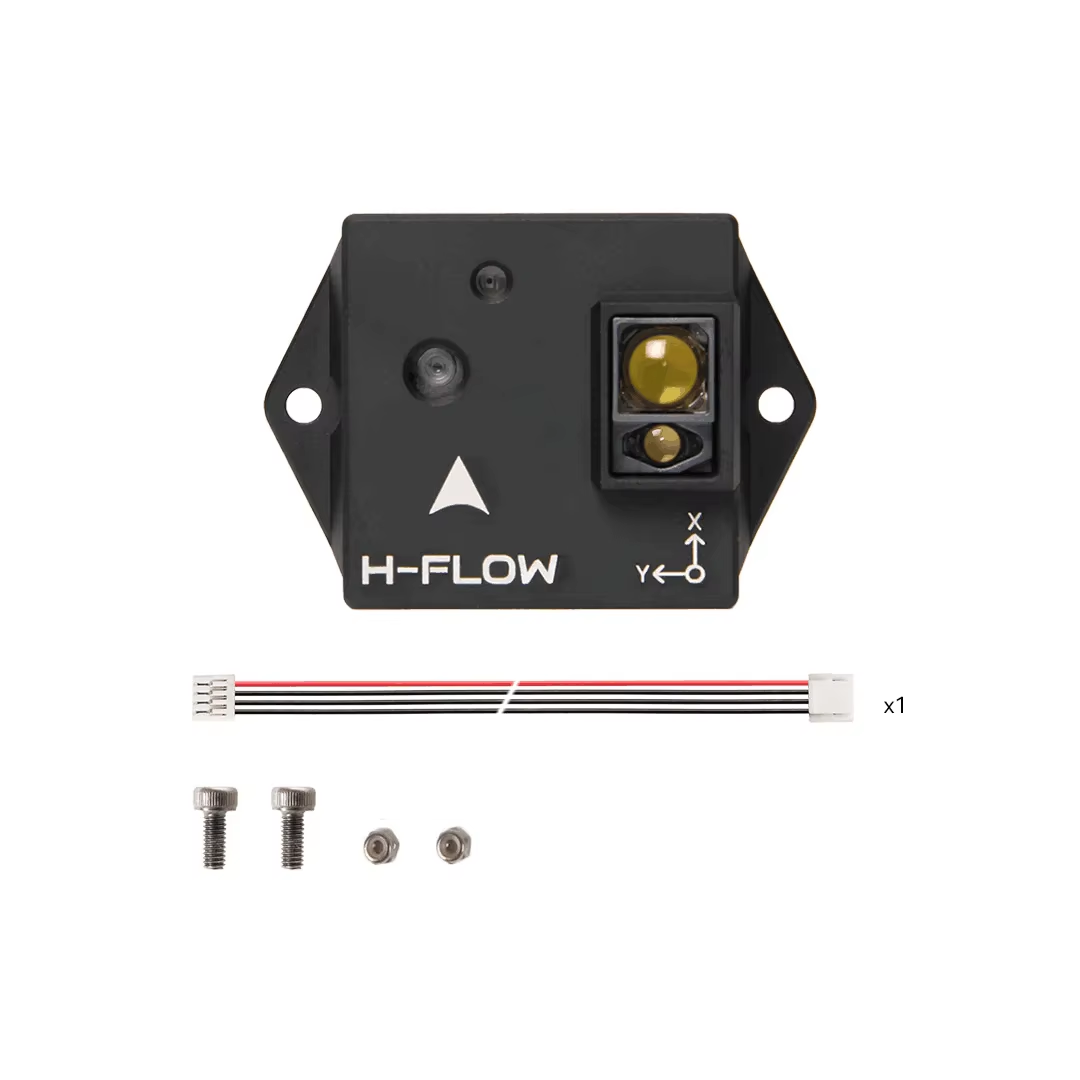

Package Includes:
1x H-Flow
4-pin GH cable
2x M2.5 Screws
2x M2.5 Nylon Locking Hex Nuts
