T-MOTOR MN3508 High Quality Multi-Rotor Fixed Wing Lightweight Brushless RC Quadcopter Motor
T-MOTOR MN3508 High Quality Multi-Rotor Fixed Wing Lightweight Brushless RC Quadcopter Motor
T-MOTOR MN3508 High Quality Multi-Rotor Fixed Wing Lightweight Brushless RC Quadcopter Motor
T-MOTOR MN3508 High Quality Multi-Rotor Fixed Wing Lightweight Brushless RC Quadcopter Motor
T-MOTOR MN3508 High Quality Multi-Rotor Fixed Wing Lightweight Brushless RC Quadcopter Motor
T-MOTOR MN3508 High Quality Multi-Rotor Fixed Wing Lightweight Brushless RC Quadcopter Motor
T-MOTOR MN3508 High Quality Multi-Rotor Fixed Wing Lightweight Brushless RC Quadcopter Motor
T-MOTOR MN3508 High Quality Multi-Rotor Fixed Wing Lightweight Brushless RC Quadcopter Motor
T-MOTOR MN3508 High Quality Multi-Rotor Fixed Wing Lightweight Brushless RC Quadcopter Motor
T-MOTOR MN3508 High Quality Multi-Rotor Fixed Wing Lightweight Brushless RC Quadcopter Motor
T-MOTOR MN3508 High Quality Multi-Rotor Fixed Wing Lightweight Brushless RC Quadcopter Motor
T-MOTOR MN3508 High Quality Multi-Rotor Fixed Wing Lightweight Brushless RC Quadcopter Motor
Specifications
compatible brand :
Autel
Customized :
Support Customization
private mold :
Yes
Configuration :
12N14P
MOQ :
1 piece
Max Continuous Current 180S :
14A/18A/23A
Shaft Diameter :
4mm
Place of Origin :
China, China
Material :
ABS
Brand Name :
T-motor
Size :
41.8x26.5mm
Price :
$62.90 / piece
Rated Voltage ( Lipo ) :
3-6S
Weight Excluding Cables :
103g
Noise :
Low Voice
Certification :
CE Rohs ISO FCC
Description
Product Features
Weight Excluding Cables 103g
Configuration 12N14P
Noise Low Voice
Size 41.8x26.5mm
Shaft Diameter 4mm
place of origin China
Certification CE Rohs ISO FCC
Max Continuous Current 180S 14A/18A/23A
brand name T-motor
Customized Support Customization
private mold Yes
Rated Voltage ( Lipo ) 3-6S
Product Description
Note:
We are the Official & Factory. OEM & ODM are workable.
Pls feel free to contact us for discount price or wholesales order.
T-MOTOR MN3508 High Quality Multi-Rotor Fixed Wing Lightweight Brushless RC Quadcopter Motor

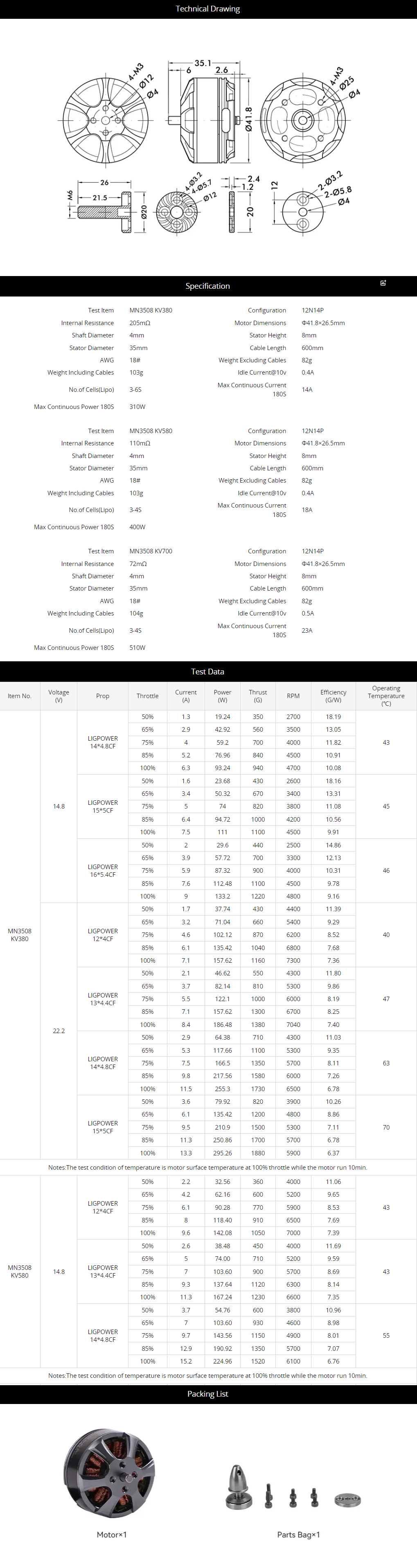

Shaft Diameter
4mm
Stator Diameter
35mm
AWG
18#
Weight Including Cables
103g
Configuration
12N14P
Motor Dimensions
41.8x26.5mm
Stator Height
8mm

KV380

Internal Resistance: 205m
No.of Cells(Lipo): 3-6S
Max Continuous Power 180S: 310W
Idle Current@10v: 0.4A
Max Continuous Current 180S: 14A

KV580

Internal Resistance: 110m
No.of Cells(Lipo): 3-4S
Max Continuous Power 180S: 400W
Idle Current@10v: 0.4A
Max Continuous Current 180S: 18A

KV700

Internal Resistance: 72m
No.of Cells(Lipo): 3-4S
Max Continuous Power 180S: 510W
Idle Current@10v: 0.5A
Max Continuous Current 180S: 23A
Navigator MN3508 Highlights:

* Max. thrust:1.8kg
* MTBF:About1000hours
* Features:Super Balance; High Strength Construction

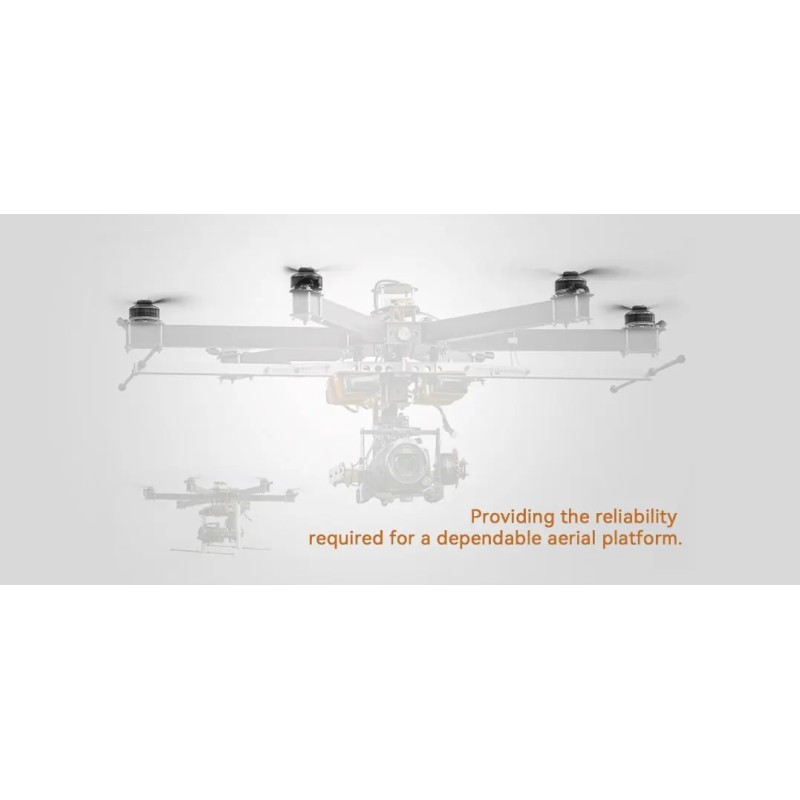

Application Areas:
Multi-rotors, VTOL, and Fixed-wing UAVs.
