Wholesale T-motor MN3510 360KV/700/630 Professional Brushless Motor For RC Drone Rotor Boat Robotics Hobbies UAV CF Prop
Wholesale T-motor MN3510 360KV/700/630 Professional Brushless Motor For RC Drone Rotor Boat Robotics Hobbies UAV CF Prop
Wholesale T-motor MN3510 360KV/700/630 Professional Brushless Motor For RC Drone Rotor Boat Robotics Hobbies UAV CF Prop
Wholesale T-motor MN3510 360KV/700/630 Professional Brushless Motor For RC Drone Rotor Boat Robotics Hobbies UAV CF Prop
Wholesale T-motor MN3510 360KV/700/630 Professional Brushless Motor For RC Drone Rotor Boat Robotics Hobbies UAV CF Prop
Wholesale T-motor MN3510 360KV/700/630 Professional Brushless Motor For RC Drone Rotor Boat Robotics Hobbies UAV CF Prop
Wholesale T-motor MN3510 360KV/700/630 Professional Brushless Motor For RC Drone Rotor Boat Robotics Hobbies UAV CF Prop
Wholesale T-motor MN3510 360KV/700/630 Professional Brushless Motor For RC Drone Rotor Boat Robotics Hobbies UAV CF Prop
Wholesale T-motor MN3510 360KV/700/630 Professional Brushless Motor For RC Drone Rotor Boat Robotics Hobbies UAV CF Prop
Wholesale T-motor MN3510 360KV/700/630 Professional Brushless Motor For RC Drone Rotor Boat Robotics Hobbies UAV CF Prop
Wholesale T-motor MN3510 360KV/700/630 Professional Brushless Motor For RC Drone Rotor Boat Robotics Hobbies UAV CF Prop
Wholesale T-motor MN3510 360KV/700/630 Professional Brushless Motor For RC Drone Rotor Boat Robotics Hobbies UAV CF Prop
Specifications
Brand Name :
T-Motor
compatible brand :
DJI
Outrunner/Inrunner :
Outrunner
Place of Origin :
China, GuangdongChina
Max Continuous current(A)180S :
15A/22A/25A
MOQ :
2 pieces
Max. efficiency current :
(2-8A)85%/(2-8A)82%/(4-10A)80%
Motor Dimension (Dia.*Len) :
41.8*28.5mm
Material :
PVC
Max Continuous Power(W)180S :
330W/495W/555W
Shaft Diameter :
4mm
private mold :
Yes
No.of Cells(Lipo) :
3-6S/3-4S
ldle current(10)@10v(A) :
0.4A Or 0.5A
Weight (g) :
97g
Price :
$71-79 / piece
Description
Product Features
Outrunner/Inrunner Outrunner
Max Continuous Power(W)180S 330W/495W/555W
Shaft Diameter 4mm
Max. efficiency current (2-8A)85%/(2-8A)82%/(4-10A)80%
place of origin Guangdong,China
Max Continuous current(A)180S 15A/22A/25A
brand name T-Motor
No.of Cells(Lipo) 3-6S/3-4S
private mold Yes
Motor Dimension (Dia.*Len) 41.8*28.5mm
ldle current(10)@10v(A) 0.4A Or 0.5A
Weight (g) 97g
Product Description
Wholesale T-motor MN3510 360KV/700/630 Professional Brushless Motor For RC Drone Rotor Boat Robotics Hobbies UAV CF Prop
Wholesale T-motor MN3510 360KV/700/630 Professional Brushless Motor For RC Drone Rotor Boat Robotics Hobbies UAV CF Prop
Wholesale T-motor MN3510 360KV/700/630 Professional Brushless Motor For RC Drone Rotor Boat Robotics Hobbies UAV CF Prop
Wholesale T-motor MN3510 360KV/700/630 Professional Brushless Motor For RC Drone Rotor Boat Robotics Hobbies UAV CF Prop
Wholesale T-motor MN3510 360KV/700/630 Professional Brushless Motor For RC Drone Rotor Boat Robotics Hobbies UAV CF Prop
Wholesale T-motor MN3510 360KV/700/630 Professional Brushless Motor For RC Drone Rotor Boat Robotics Hobbies UAV CF Prop
Wholesale T-motor MN3510 360KV/700/630 Professional Brushless Motor For RC Drone Rotor Boat Robotics Hobbies UAV CF Prop
Specification

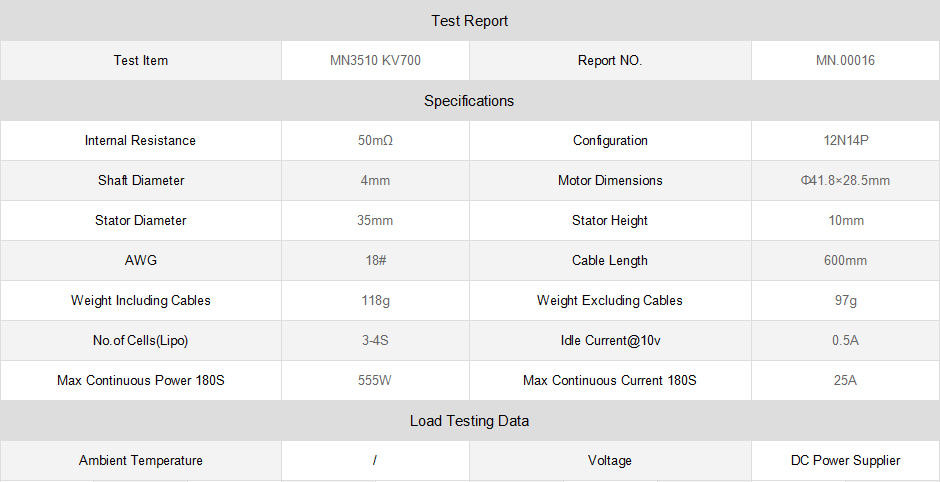

Test Report
Test Item
MN3510 KV700
Report NO.
MN.00016
Specifications
Internal Resistance
50m
Configuration
12N14P
Shaft Diameter
4mm
Motor Dimensions
41.8x28.5mm
Stator Diameter
35mm
Stator Height
10mm
AWG
18#
Cable Length
600mm
Weight Including Cables
118g
Weight Excluding Cables
97g
No.of Cells(Lipo)
3-4S
Idle Current@10v
0.5A
Max Continuous Power 180S
555W
Max Continuous Current 180S
25A
