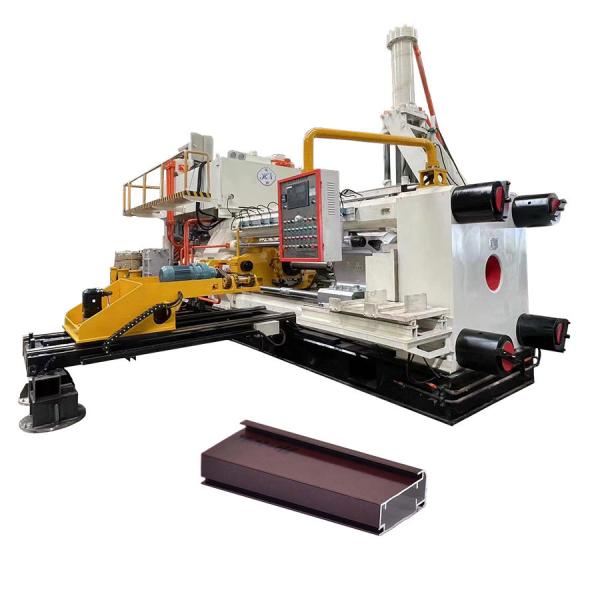

2200MT Aluminium Profile Manufacturing Machine Aluminum Extruder
2200MT Aluminium Profile Manufacturing Machine Aluminum Extruder
Specifications
Brand Name :
Huanan
Certification :
ISO
Place of Origin :
Guangdong
MOQ :
1 Pcs
Payment Terms :
LC,T/T
Supply Ability :
5pcs/ 2 Months
Packaging Details :
Wooden pallet
Power :
Electric energy
Size :
Customizable
Use :
Aluminum Extrusion
Motor :
Servo or ordinary motor
Functional :
Automatic or semi-automatic
Surface treatment :
Heat treatment
Material :
Steel Forging
Color :
Customized
Description
2200MT Aluminium Profile Manufacturing Machine Aluminum Extruder
Product Specifications
Power Electric energy
Size Customizable
Use Aluminum Extrusion
Motor Servo or ordinary motor
Functional Automatic or semi-automatic
Surface treatment Heat treatment
Material Steel Forging
Color Customized
Product Overview

The 2200MT aluminum extrusion press delivers optimal performance for manufacturers requiring large, complex profiles without the expense of ultra-high-tonnage presses, combining heavy-duty capability with operational efficiency.

Technical Parameters
2200MT/2420UST Technical Parameters
Standard Billet Size (Outer diameter) Φ203mm
Standard Billet Size (Length) 400-1100mm
Main Piston Φ920mm
Machine extrusion force 25Mpa (2208T)
Dimensions of mold base cavity (Diameter) Φ480mm
Dimensions of mold base cavity (Depth) H480mm
Mechanical size L10500mm x W7800mm x H5200mm
Overall weight 185T
Total Power 524KW
Main oil pump (Hilectro brand) HP12981-G102W-R1P4 *4
Liquid cooling driver Hi300-132KW *4
Main oil pump (Germany Rexroth) A15VSO-210 31.5MPa variable pumps
Auxiliary pump (Tokyo Keiki) SQP43-60-38+A2F28
Advantages of Short-Stroke Back Loading Structure
  • 30% increased rigidity compared to traditional extruders due to reduced frame opening
  • Improved hydraulic efficiency with reduced oil consumption and enhanced control accuracy
  • 15% reduction in non-extrusion time through elimination of gasket circulation system
  • Additional 15% time savings from servo motor-driven translation manipulator
2200MT Aluminium Profile Manufacturing Machine Aluminum Extruder
Application Fields

This aluminum extrusion machine serves multiple industries including:

  • Construction Industry
  • Industrial Trade
  • New Energy Industry
  • Photovoltaic Industry

Aluminum profiles produced are used in structural components, decorative elements, and building systems including roofs, walls, windows, curtain walls, partitions, and industrial structures.

2200MT Aluminium Profile Manufacturing Machine Aluminum Extruder
Technical Characteristics
  • Proven design with low failure rates for critical components
  • Minimal vibration and impact, reducing oil leakage risks
  • High-speed response with efficient operation and reduced downtime
  • Precision control with ±0.1mm extrusion speed accuracy
  • Advanced automation reduces operator requirements
Equipment Gallery
2200MT Aluminium Profile Manufacturing Machine Aluminum Extruder 2200MT Aluminium Profile Manufacturing Machine Aluminum Extruder
Frequently Asked Questions
Q1: How is the quality of Huanan Brand machine and the service life?
Huanan Brand is recognized as top-tier extrusion equipment in China. With proper maintenance, the machine lifespan typically exceeds 15 years, with many well-known aluminum manufacturers among our satisfied customers.
Q2: How to choose the right type machine?
Provide your profile sectional drawing dimensions and intended products. Our engineers will calculate and recommend the optimal machine configuration for your requirements.
Q3: Will Huanan provide installation service?
Our technicians will conduct on-site installation and operator training once the equipment arrives at your facility and installation conditions are met.
Q4: What is the delivery time of Huanan Machines?
Delivery times vary by machine size: 600-1000MT (30 days), 1250-1800MT (45-60 days), 2000-3000MT (180 days), 3000MT+ (6-12 months). Complete production lines require 3-10 months.
Q5: What services Huanan can do for you?
We provide comprehensive support including technical consultation, production proposals, design/manufacturing, documentation, shipping, installation, training, and lifetime maintenance.
