High Productivity 600T Aluminum Extruder Extrusion Press Machine
High Productivity 600T Aluminum Extruder Extrusion Press Machine
Specifications
Brand Name :
Huanan
Model Number :
HN-600T
Certification :
ISO
Place of Origin :
Guangdong
MOQ :
1 Pcs
Price :
$86600-$94600
Payment Terms :
LC,T/T
Supply Ability :
5pcs/ 2 Months
Delivery Time :
3 Months
Packaging Details :
Wooden pallet
Power :
Electric energy
Size :
Customizable
Use :
Aluminum Extrusion
Motor :
Servo or ordinary motor
Functional :
Automatic or semi-automatic
Surface treatment :
Heat treatment
Material :
Steel Forging
Color :
Customized
Description
High Productivity 600T Aluminum Extruder Extrusion Press Machine
Product Specifications
Power Electric energy
Size Customizable
Use Aluminum Extrusion
Motor Servo or ordinary motor
Functional Automatic or semi-automatic
Surface treatment Heat treatment
Material Steel Forging
Color Customized
Product Overview

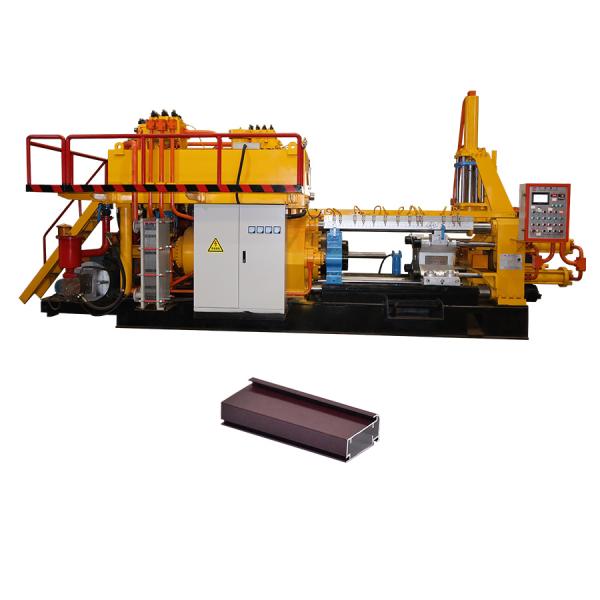

The 600T press machine is ideal for diversified and small-batch production (such as window and door profiles, heat sinks, etc.). With smaller molds, downtime for switching between different profiles is minimized.

Technical Specifications
Standard Billet Size - Outer diameter Φ90mm
Standard Billet Size - Length 500mm
Machine extrusion force 21Mpa 617T(678UST)
Dimensions of mold base cavity - Diameter Φ190mm
Dimensions of mold base cavity - Depth H200mm
Equipment dimension - Mechanical size L7000mm×W2900mm×H3200mm
Equipment dimension - Overall weight 26T
Equipment dimension - Total Power 83KW
Motor - Main oil pump (Hilectro brand) HP12981-G102W-R1P4
Motor - Liquid cooling driver Hi300-90KW
Hydraulic pump - Main oil pump (Germany Rexroth) A15VSO175 variable pumps
Hydraulic pump - Auxiliary pump (Tokyo Keiki) SQP43-60-38
Key Advantages
  • Short-stroke back loading structure increases frame rigidity by 30%
  • Reduced hydraulic oil consumption enhances speed and pressure control accuracy
  • 15% reduction in non-extrusion time through elimination of gasket circulation system
  • Additional 15% reduction in non-extrusion time with servo motor-driven translation manipulator
High Productivity 600T Aluminum Extruder Extrusion Press Machine
Applications

This automatic aluminum extrusion press machine serves multiple industries including construction, industrial trade, new energy, and photovoltaic sectors. It produces various aluminum profiles for:

  • Roofs, walls, doors and windows, frames
  • Reticulated shell structures and grid structures
  • Glass curtain wall support systems and awnings
  • Pedestrian bridges and interior/exterior decorative panels
  • Partitions, ceilings, suspended ceilings, railings and handrails
High Productivity 600T Aluminum Extruder Extrusion Press Machine
Technical Features
  • Mature structure with low failure rate for critical components
  • Minimal impact and vibration reduces oil leakage likelihood
  • Rapid response times with high efficiency and minimal non-extrusion periods
  • Precise extrusion speed control (±0.1mm accuracy)
  • High automation and intelligent production capabilities
Product Images
High Productivity 600T Aluminum Extruder Extrusion Press Machine High Productivity 600T Aluminum Extruder Extrusion Press Machine
Frequently Asked Questions
Q1: How is the quality of Huanan Brand machine and the service life?
Huanan Brand is one of China's leading automatic aluminum extrusion equipment manufacturers. Customer feedback indicates a machine lifespan of 15+ years under normal conditions, with many well-known aluminum manufacturers among our clients.
Q2: How to choose the right type machine?
Please provide details about your products and profile sectional drawing dimensions. We'll calculate the most suitable machine size for your requirements.
Q3: Will Huanan provide installation service?
Our technicians will visit your factory for installation and employee training once the machine arrives and installation conditions are met.
Q4: What is the delivery time of Huanan Machines?
  • 600-1000MT: 30 days
  • 1250-1800MT: 45-60 days
  • 2000-3000MT: 180 days
  • 3000MT+: 6-12 months
Complete production lines typically require 3-10 months.
Q5: What services Huanan can do for you?
We provide comprehensive one-station services including technical consultation, production proposals, design/manufacturing/inspection, shipping documentation, installation, training, and lifetime maintenance support.
