​​HUAHENG M Series Automatic Pipe to Pipe Orbital Welding System​​
​​HUAHENG M Series Automatic Pipe to Pipe Orbital Welding System​​
Specifications
Description

​​HUAHENG M Series Automatic Pipe to Pipe Orbital Welding System​​

​​HUAHENG M Series Automatic Pipe to Pipe Orbital Welding System​​

HUAHENG M Series Orbital Pipe Welding System FAQ:

Q1: What is the HUAHENG M Series orbital pipe welding system?

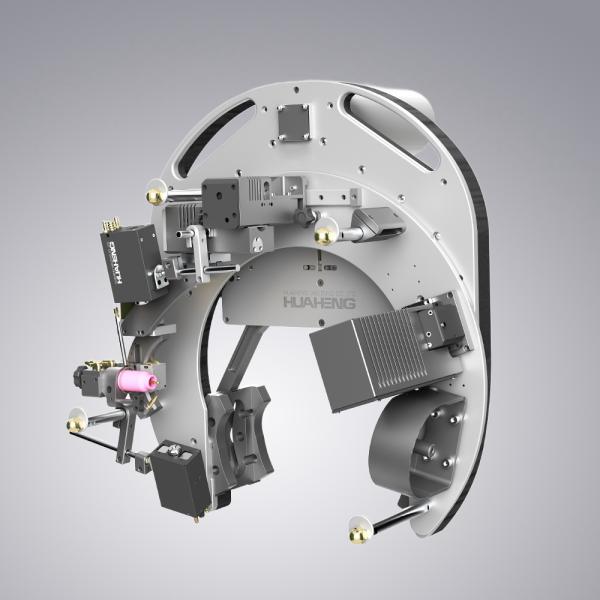

A: The HUAHENG M Series is a high-precision automatic all-position orbital pipe welding system, equipped with HUAHENG’s proprietary M Series digital control platform and OPS09 digital welding power source. It integrates intelligent control, real-time HD molten pool monitoring, and servo-driven welding execution, delivering stable, efficient, and X-ray qualified welding for industrial pipe connections.

Q2: What are the core advantages of the M Series welding system?

A:

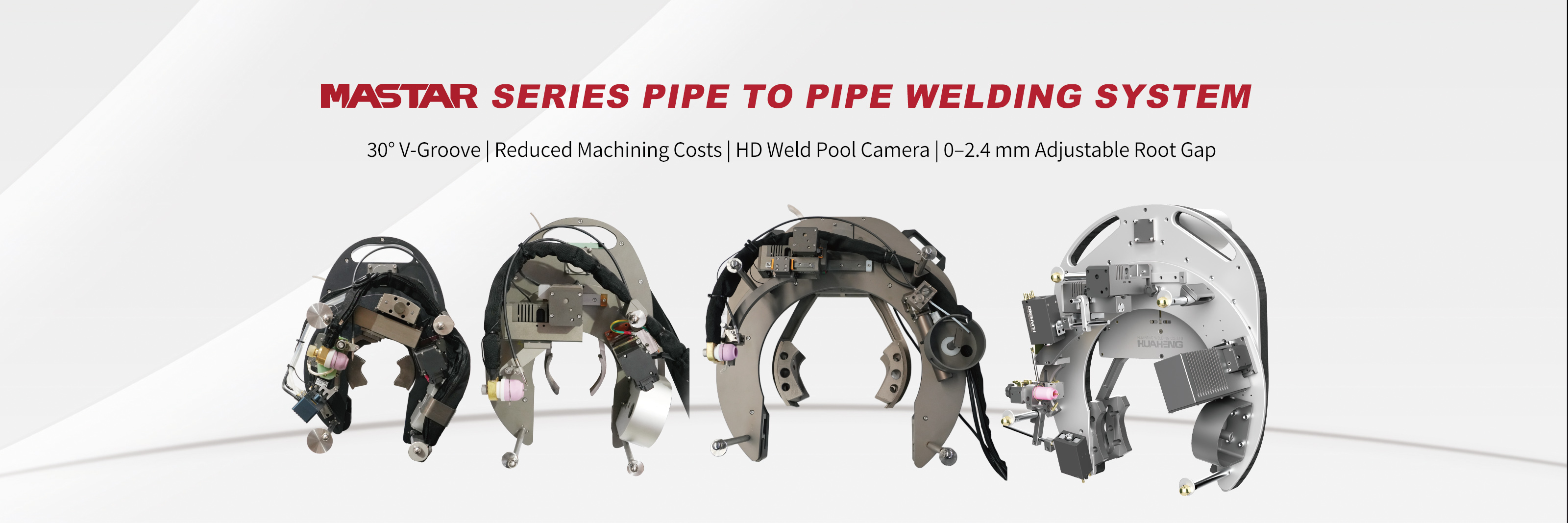

  • Requires only a 30° V-bevel, significantly reducing pipe bevel processing cost
  • Supports assembly gap tolerance 0–2.4 mm, lowering fit-up difficulty and improving on-site efficiency
  • Equipped with HD digital molten pool camera for real-time welding process monitoring
  • Delivers X-ray qualified weld quality with high consistency and low defect rate
  • High efficiency, 3-5 times faster than manual welding
  • Cost-effective with strong reliability and complete after-sales service network
  • Proprietary M Series digital control technology for stable performance

Q3: What pipe diameter range does the M Series support?

A: The system covers a wide range of pipe sizes, with a minimum welding pipe diameter of φ21.3mm and maximum of φ323.9mm, suitable for most industrial pipeline applications.

Q4: What are the key features of the OPS09 digital welding power source?

A:
  • Built-in HUAHENG M Series intelligent control system
  • Welding current accuracy controlled within 1A for full-process precision
  • High-performance servo drive for rotation, wire feeding, oscillation, and AVC
  • Max wire feeding speed up to 6000 mm/min
  • Max oscillation speed up to 1800 mm/min
  • Programmable torch angle for full-position welding
  • Dual-angle HD digital molten pool imaging system
  • Supports multi-pass continuous welding without arc stopping

Q5: What are the main application scenarios of the M Series welding system?

A: It is designed for automatic orbital pipe welding in narrow spaces, confined areas, high-altitude operations, heavy-wall pipe connections, and critical pipeline construction. It replaces manual welding to achieve safe, stable, and high-quality welding in hard-to-reach working conditions, ideal for on-site engineering installation and factory prefabrication.

Q6: Which industries use the HUAHENG M Series welding system?

A: It is widely used in petrochemical, oil & gas, marine shipbuilding, boiler manufacturing, nuclear power, engineering installation, food & medical, and pressure vessel industries.

Q7: Can the M Series welding system handle heavy-wall pipe welding?

A: Yes. The M Series is specially designed for heavy-wall and thick-wall pipe welding, with stable arc performance, precise digital control, and high deposition efficiency, ensuring reliable welding quality that meets strict industrial radiographic inspection standards.

Q8: What materials and specifications does the M Series support?

A:
  • Weldable materials: carbon steel, stainless steel, alloy steel
  • Standard wire diameter: 1.0 mm
  • Compatible with 4 in (100 mm) 1 kg standard wire spools
  • Equipped with special wire feeding wheels for stainless steel
  • Shielding gas: argon
  • Cooling method: water cooling
