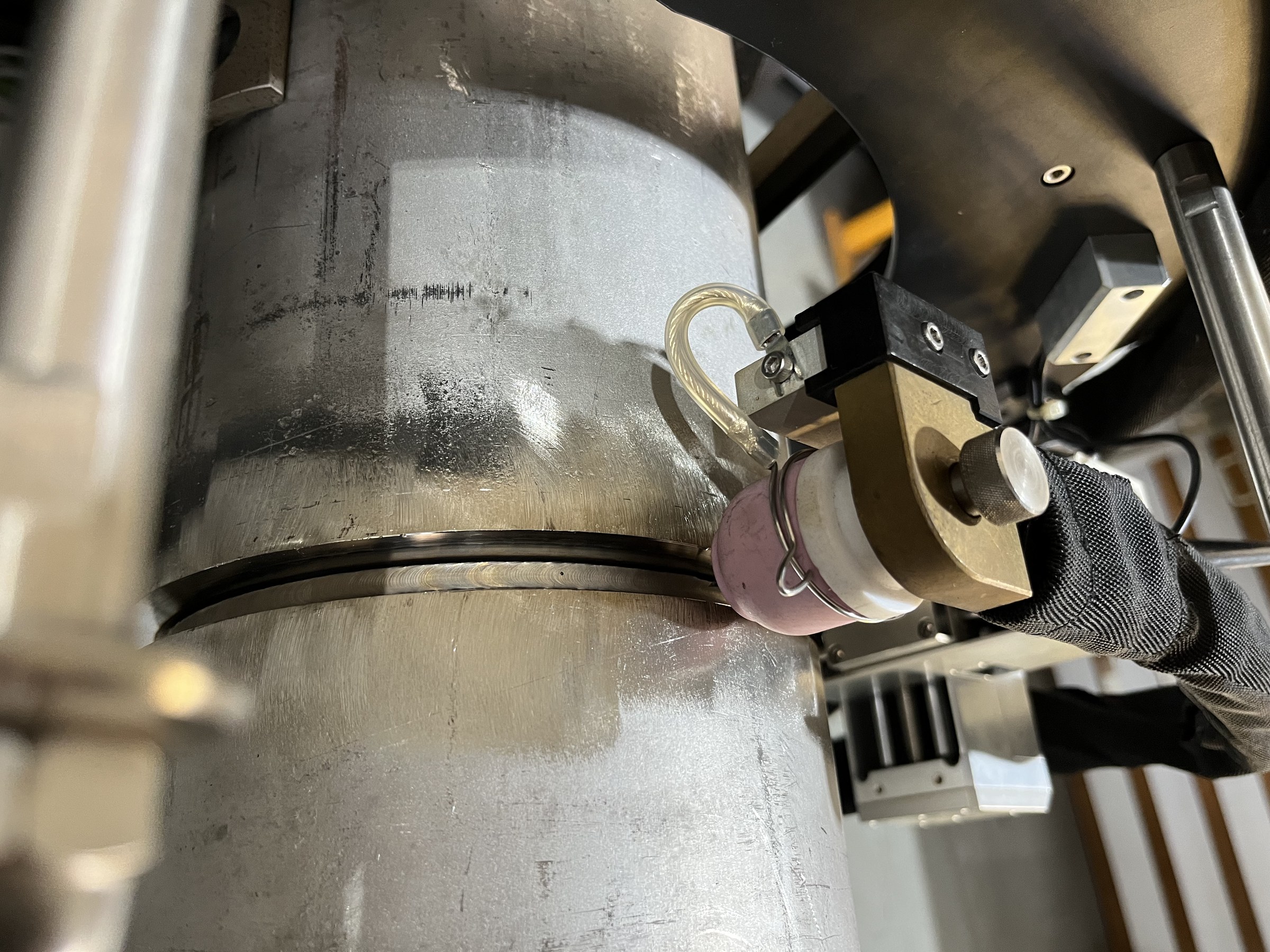

TOA Series Orbital Pipe Welding Head
TOA Series Orbital Pipe Welding Head
TOA Series Orbital Pipe Welding Head
TOA Series Orbital Pipe Welding Head
TOA Series Orbital Pipe Welding Head
TOA Series Orbital Pipe Welding Head
TOA Series Orbital Pipe Welding Head
TOA Series Orbital Pipe Welding Head
TOA Series Orbital Pipe Welding Head
TOA Series Orbital Pipe Welding Head
Specifications
Wire diameter(mm） :
Φ1.0（Standard）
Weldable material :
Carbon steel, stainless steel
Model :
TOA series
Cooling flow(ml/min） :
≥300
Protective gas :
Argon
Model Number :
TOA
Cooling method :
Water
Description

TOA Series
Pipe to Pipe TIG Orbital Welding Heads

Specially designed for automatic pipe-to-pipe butt joints. Compatible with iOrbital5000 and external wire feeders for precise orbital TIG welding.

Contact us
iOrbital5000 Programmable compatible
AVC & OSC External wire feeder support
Water Cooling Long continuous working time
TOA Series Orbital Pipe Welding Head

Description

System overview and applications

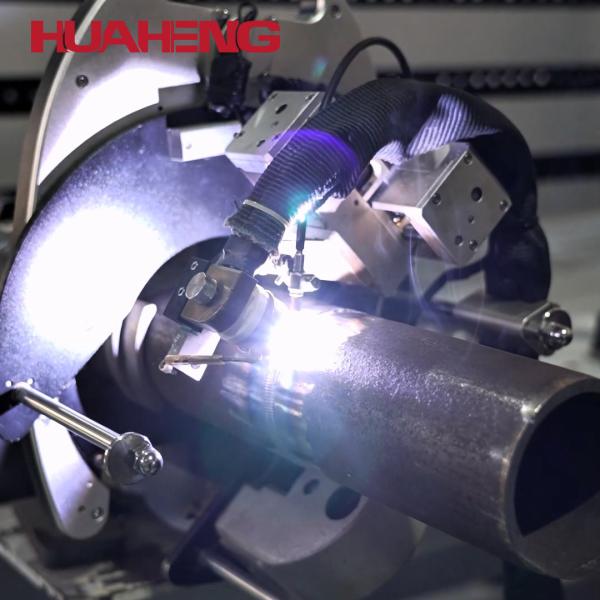

This welding head is specially designed for tube to tube TIG welding, suitable for carbon steel and stainless steel tube to tube butt joints. It's fit for fusion welding or wire feeding with an external TB1501 integrated wire feeder with AVC & OSC functions. It is compatible with iOrbital5000 programmable controllers to achieve accurate orbital TIG welding for tube/tube welding with high repeatability. It is mainly applied in chemical, food, medicine, engineering installation, boiler, nuclear and so on.

TOA Series Orbital Pipe Welding Head
TOA Series Orbital Pipe Welding HeadTOA Series Orbital Pipe Welding Head

Performance

Core features and capabilities

Suitable for carbon steel and stainless steel pipe welding.
Welding head circulating water cooling ensures long continuous working time.
Supports both self-melting and wire feeding welding modes.

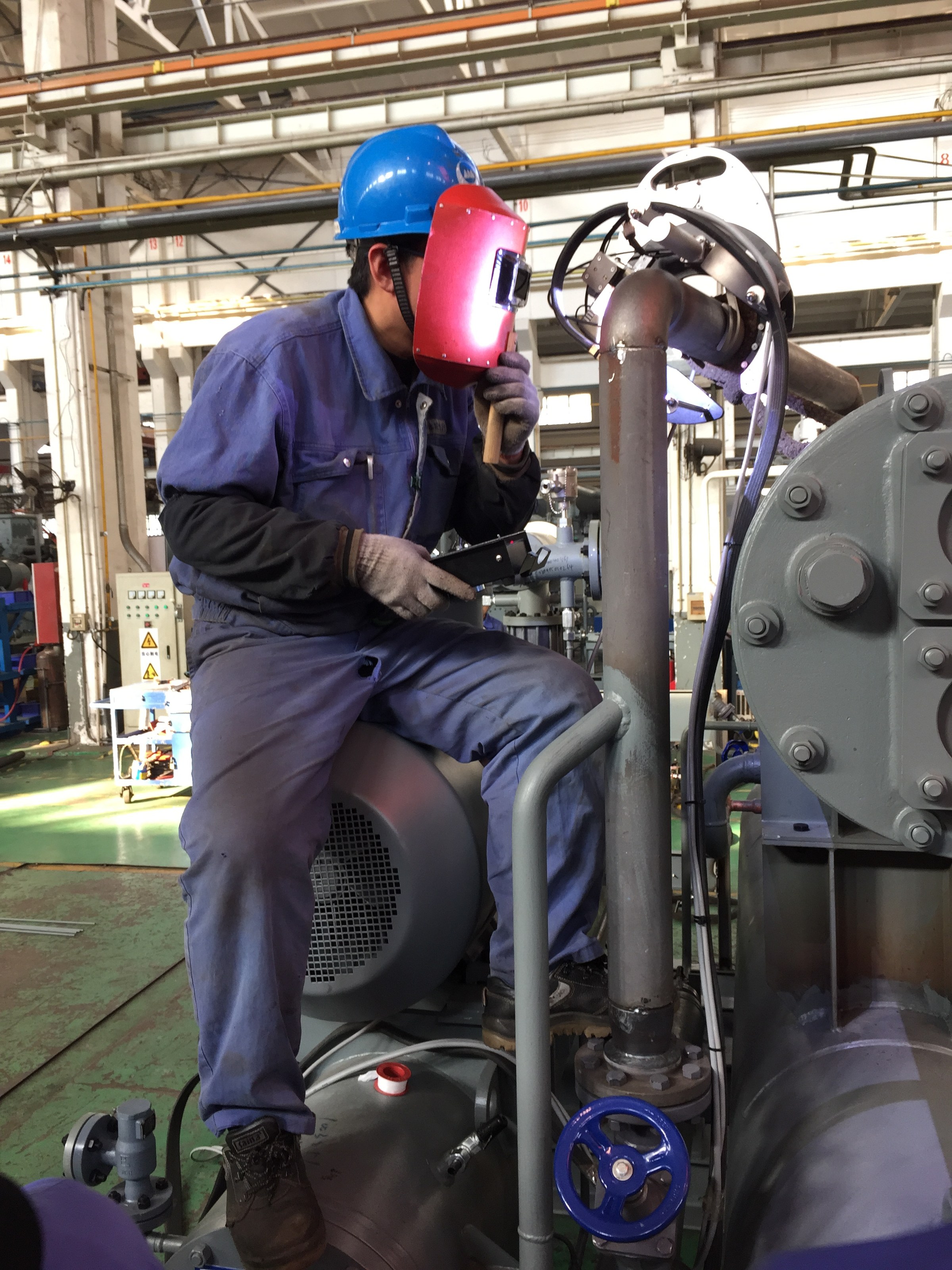

Widely used in on-site installation of various joints such as pipe, pipe elbow, pipe flange, pipe valve, etc.

Technical Parameter

Specifications for TOA77 to TOA320 models

Parameter TOA77 TOA130 TOA180 TOA230 TOA320
Weldable pipe diameter - Inner clamp (mm) Φ19.05～Φ45
(3/4″～1 3/4″)		 Φ38.1～Φ76
(1 1/2″～3″)		 Φ50.8～Φ114.3
(2″～4 1/2″)		 Φ120～Φ178
(4 1/2″～7")		 Φ150～Φ230
(6″～9″)
Weldable pipe diameter - Outer clamp (mm) Φ45～Φ77
(1 3/4″～3″)		 Φ76～Φ130
(3″～5″)		 Φ114.3～Φ180
(4 1/2″～7″)		 Φ178～Φ230
(7″～9″)		 Φ230～Φ324
(9″～12 3/4″)
Tungsten electrode diameter (mm) Φ2.4, Φ3.2 Φ2.4, Φ3.2 Φ2.4, Φ3.2 Φ2.4, Φ3.2 Φ2.4, Φ3.2
Spinning speed (rpm) 0.19～3.8 0.11～2.2 0.09～1.8 0.05～1.0 0.026～0.52
Yaw width (mm) 20 40 40 40 40
Arc length height (mm) 40 40 40 40 40
Maximum wire feed speed (mm/min) 1800 1800 1800 1800 1800
Dimension A (mm) 220 300 375 425 550
Dimension B (mm) 180 235 285 300 315
Dimension C (mm) 112～132 156～196 184～224 195～235 230～270
Dimension D (mm) 92 165 225 250 297
Dimension E (mm) 82 132 182 232 328
Dimension F (mm) 320 400 525 570 680
Weight (kg) 5.5 (without cable) 10.8 (without cable) 19.5 (without cable) 21.5 (without cable) 36 (without cable)
Overall Dimensions (mm) 370×220×320 435×300×400 445×375×525 465×425×570 430×610×680
