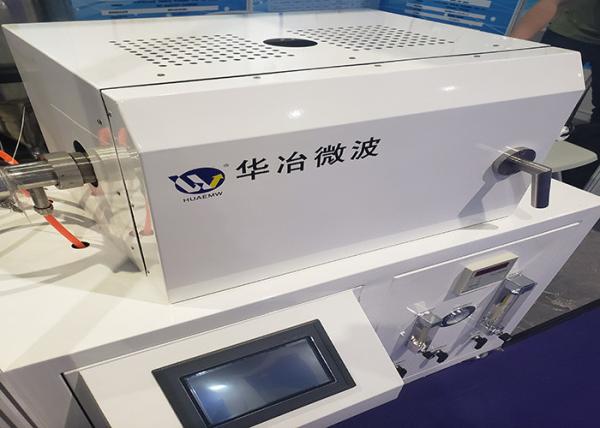

Sliding High Temperature Tube Furnace Equipment Multiple Temperature Segments
Sliding High Temperature Tube Furnace Equipment Multiple Temperature Segments
Specifications
Brand Name :
Huaemw
Model Number :
HY-ZGS1512
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Delivery Time :
1~12weeks
Heating Source :
Microwave
Working Temperature :
0~1150℃
Features :
Automatic Sliding
Usage :
Fast Heating/Cooling Process
name :
Microwave Tube Furnace
warranty :
1 year
Description

Sliding Tube Equipment, Fast Heating and Cooling, Multiple Temperature Segments

  • Product Features

HY-ZGS1512 allows the furnace body to automatically slide from one side to the other side, which ensures the furnace to reach a fast heating and cooling rates.

HY-ZGS1512 can set 40 segments of temperature and heating time, the temperature is continuously ajustable.

HY-ZGS1512 is safe to operate, the microwave leakage intensity is less than 2mW/cm2.

HY-ZGS1512 has one magnetrons with a output power of 1.5kW.

HY-ZGS1512 has a compact structure and has a proper overall dimension.

  • Applications

HY-ZGS1512 can be applied to microwave synthesis and pyrolysis.

  • Technical Parameters
Parameters HY-ZGS1512
Power Voltage 220V±10V 50Hz
Rated Power 3KW
Thermal
Insulation System		 Tmax 1200°C
Working Temperature 0~1150°C
Heating Space
(diameter×width)		 Φ40×130mm
Temperature Control
System		 Temperature
Measurement Method		 thermocouple
Temperature
Measurement Range		 0°C~1300°C
Temperature
Control Precision		 ±0.1%
Control
System		 Auto, Manual and Isothermal Controlling Mode,
PLC+Touch Screen		 40 segments of programmable technical parameters,
data storage and export,
real-time curve data display,
dynamic data display
Atmosphere System Static Ultimate
Vacuum Degree		 ≤100Pa
Atmosphere Range quick pre-vacuum pumping,
capalble of oxidizing gas, inert gas, weak reducing gas etc.
Safety System Magnetron Alarm over temperature alarm
Furnace Door Protection Alarm furnace door shutdown sensor
Overall
Dimension		 Furnace Body(L×W×H) ca. 530×1000×1200mm
Rack(L×W×H) ca. 900×1200×1500mm
