Specifications
Material :
Tungsten Carbide
Body material :
40Cr
Shank :
SDS PLUS/MAX
Flute :
2 Flute
Process :
Milled Flutes and Auto-Welded Tip
Name :
SDS-Plus Hammers
Brand Name :
XRTOOLS
Model Number :
6x110
Certification :
ISO9000
Place of Origin :
CHINA
MOQ :
100pcs
Price :
$0.28-20/pc
Payment Terms :
L/C, T/T, , Western Union
Supply Ability :
50000pcs/per day
Delivery Time :
25-30days
Packaging Details :
PVC bag;Plastic tube,Blister Card,Plastic Hook
Tip material :
YG8C
Size :
5-52mm
Finish :
sandblasted
Use :
granite and marble
Description

Product Overview

Our Professional SDS Series Drill Bits represent a complete drilling solution for the modern construction industry. Ranging from precision 5mm SDS Plus bits for delicate interior fixings to heavy-duty 52mm SDS Max core bits for massive infrastructure projects, this series is engineered to deliver maximum impact energy.

Whether navigating the reinforced concrete of European urban developments, the high-density stone in the Middle East, or the extreme-cold masonry challenges in Russia, our bits provide the durability and speed required by world-class contractors.

SDS Plus & SDS Max Drill Bits: Full Size Range (5mm to 52mm) for Rotary Hammers

Technical Specifications & Size Chart

We maintain a comprehensive inventory covering all standard and specialized industrial dimensions.

Series Diameter Range (D) Total Length (L1) Head Geometry Primary Application
SDS Plus 5.0mm – 16mm 110mm – 460mm 2-Cutter / 4-Cutter Interior fixings, electrical, plumbing
SDS Plus 18mm – 32mm 210mm – 600mm 4-Cutter (Cross) Heavy anchoring, rebar penetration
SDS Max 12mm – 25mm 340mm – 540mm 4-Cutter Carbide Structural masonry, stone drilling
SDS Max 28mm – 52mm 540mm – 1000mm Multi-Cutter Core Through-wall piping, demolition

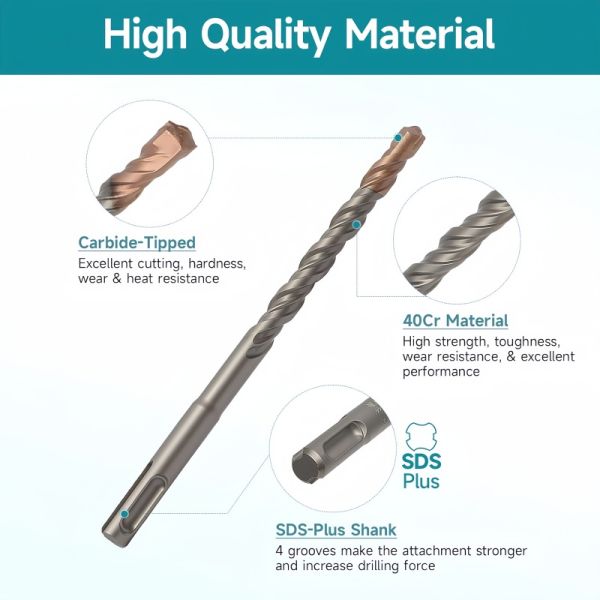

Engineering & Material Superiority

  • Dual-System Compatibility: Precision-machined shanks ensure 100% compatibility with SDS Plus (10mm) and SDS Max (18mm) chucks from all major global brands.

  • YG8C Tungsten Carbide Tips: All bits feature industrial-grade carbide tips, vacuum-brazed at 1100°C. This ensures the cutting head remains intact during high-torque encounters with rebar or flint.

  • Reinforced 40Cr Steel Body: The bit body is crafted from high-density 40Cr alloy steel, optimized via a proprietary tempering process to achieve high torsional strength and impact resistance.

  • Advanced Flute Geometry: Featuring U-Double Flutes for the Plus range and Turbo Flutes for the Max range, ensuring rapid dust extraction to prevent overheating and jamming.

SDS Plus & SDS Max Drill Bits: Full Size Range (5mm to 52mm) for Rotary Hammers

Key Advantages for Global Distributors

  • Universal Standards: Manufactured in strict accordance with DIN 8039 and ISO 5468 standards, facilitating easy import compliance in the EU and CIS regions.

  • Climate Resilience: Specifically treated to maintain structural integrity in extreme temperature ranges (from -40°C in Russia to +50°C in Middle Eastern deserts).

  • Sand-Blasted Anti-Rust Finish: Every bit undergoes a high-pressure sand-blasting process to create a work-hardened, corrosion-resistant surface.

Packaging & Customization (OEM)

  • Retail Solutions: Individual PVC tubes, square plastic hangers, or high-impact double-blister packs.

  • Master Sets: Customized 5-piece to 15-piece sets in high-density ABS cases or professional metal frames.

  • Private Labeling: We provide high-definition Laser Marking on the shank for your brand logo and localized technical specifications (Russian/English/Arabic).

FAQ (Frequently Asked Questions)

Q1: Can I use SDS Plus bits in an SDS Max hammer?

A1: Not directly. However, we provide specialized SDS Max to SDS Plus adapters to allow you to use our full range of bits across different power tools.

Q2: What is the maximum drilling depth available for the 52mm SDS Max bit?

A2: We stock lengths up to 1000mm (1 meter) for deep-hole through-wall applications. Custom lengths can be manufactured for bulk orders.

Q3: How do your bits perform when hitting rebar in reinforced concrete?

A3: Our 4-Cutter (Cross Head) design is specifically engineered for this. It prevents the bit from jamming and maintains a perfectly round hole, even when slicing through light steel reinforcement.
