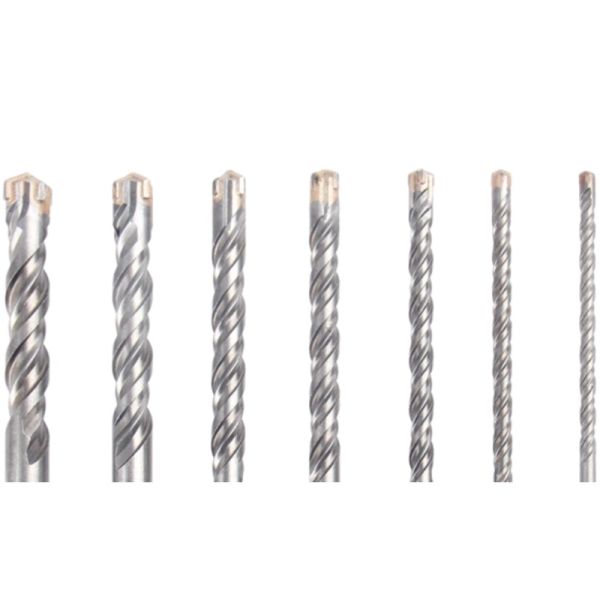

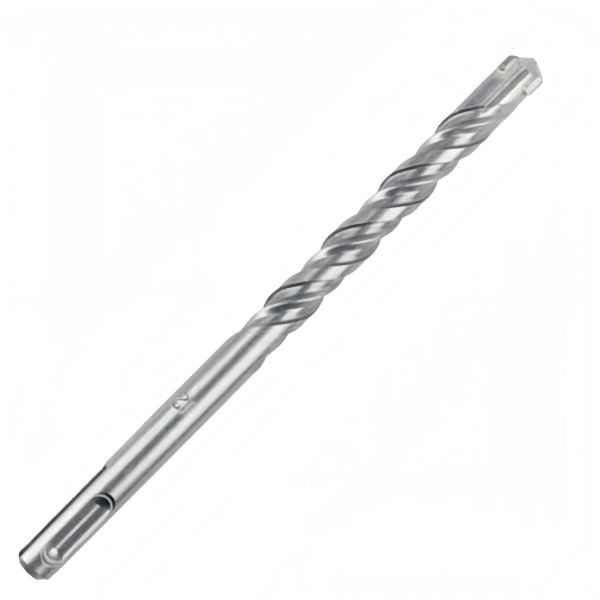

Carbide Cross Head SDS Max Rotary Hammer Drill Bit With Tip U Flute
Carbide Cross Head SDS Max Rotary Hammer Drill Bit With Tip U Flute
Carbide Cross Head SDS Max Rotary Hammer Drill Bit With Tip U Flute
Carbide Cross Head SDS Max Rotary Hammer Drill Bit With Tip U Flute
Carbide Cross Head SDS Max Rotary Hammer Drill Bit With Tip U Flute
Carbide Cross Head SDS Max Rotary Hammer Drill Bit With Tip U Flute
Carbide Cross Head SDS Max Rotary Hammer Drill Bit With Tip U Flute
Carbide Cross Head SDS Max Rotary Hammer Drill Bit With Tip U Flute
Carbide Cross Head SDS Max Rotary Hammer Drill Bit With Tip U Flute
Carbide Cross Head SDS Max Rotary Hammer Drill Bit With Tip U Flute
Carbide Cross Head SDS Max Rotary Hammer Drill Bit With Tip U Flute
Carbide Cross Head SDS Max Rotary Hammer Drill Bit With Tip U Flute
Specifications
Process :
Milled Flutes and Auto-Welded Tip
tip Material :
Tungsten Carbide
Size :
6*110mm – 50*1320mm
Use :
Concrete and Hard Stone
Name :
rotary hammer drills
Body material :
40Cr Steel with Heat Treatment
Flute :
Multi Cutter
Shank :
SDS-Plus/max Shank
Finish :
Sand Blasted
Brand Name :
XRTOOLS
Model Number :
10-40mm
Certification :
ISO9000
Place of Origin :
CHINA
MOQ :
100pcs
Price :
$0.28-20/pc
Payment Terms :
L/C, T/T, , Western Union
Supply Ability :
50000pcs/per day
Delivery Time :
25-30days
Packaging Details :
PVC bag;Plastic tube,Blister Card,Plastic Hook
Description

Electric 40 Cr Steel SDS Plus Hammer Masonry Concrete Drill Bit

Description

1 Hardened core reduces bit breakage.
2 Innovative tip design maximizes carbide surface contact for longer life.
3 Hardened core reduces bit breakage.
4 Quickly exit the hole while allowing the concrete hammer drill bit to remain cool.
5 Compatible with all SDS Plus sized rotary hammer drills.

Carbide Cross Head SDS Max Rotary Hammer Drill Bit With Tip U Flute

SDS Masonry Drill Bit of specifications :

Diameter Flute Length Overall Length Diameter Flute Length Overall Length
mm mm mm Inch Inch Inch
8.0-20.0 100 220 5/16″-1-1/4″ 4″ 9″
8.0-40.0 160 280 5/16″-1-3/4″ 6″ 11″
8.0-40.0 220 340 5/16″-1-3/4″ 9″ 14″
8.0-40.0 250 370 5/16″-1-3/4″ 10″ 15″
10.0-40.0 280 400 3/8″-1-3/4″ 11″ 16″
12.0-40.0 385 505 7/16″-1-3/4″ 15″ 20″
14.0-40.0 420 540 1/2″-1-3/4″ 17″ 22″
16.0-40.0 450 570 5/8″-1-3/4″ 18″ 23″
16.0-40.0 800 920 5/8″-1-3/4″ 32″ 37″
16.0-50.0 1200 1320 5/8″-2″ 47″ 52″

feature:

1. Tungsten carbide tip ensuring fast cut speeds and maximum life.

2. Ideal for drilling holes in concrete, brick, stone, and masonry.

3. Optimized design allows the material to quickly exit the hole while allowing the concrete hammer drill bit to remain cool.

4. High-quality SDS bit designed to work in masonry applications, brick, stone, concrete, block, etc.

5. Compatible with all SDS Plus-sized rotary hammer drills.

Carbide Cross Head SDS Max Rotary Hammer Drill Bit With Tip U Flute

What is a SDS max drill bit?


The SDS Max is, as the name implies, are larger and have more indentations in them for a better grip on the bit.

You usually find SDS Max drills used for commercial work, such as the construction, renovation, or demolition

of larger buildings.
