Specifications
Use :

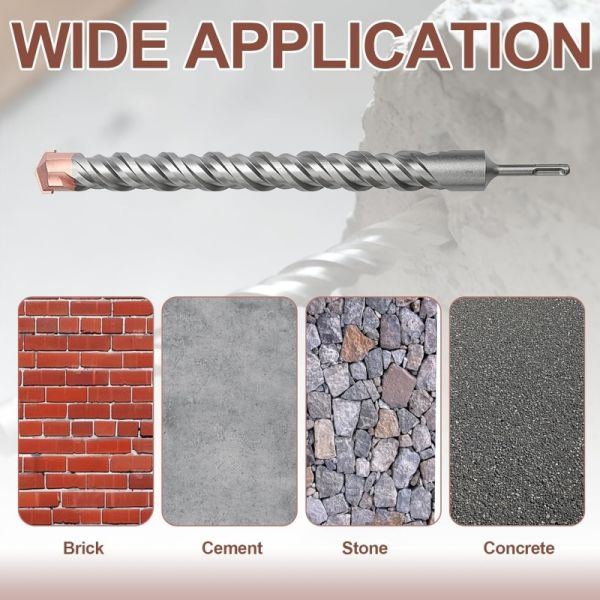

concrete, bricks, walls, stones etc
Shank :
SDS Hex
Material :
Tungsten Carbide
Flute :
single / double , U flute/ L flute
Size :
8mm - 20mm
Body material :
40Cr
Name :
rotary hammer drill bits
Tip material :
YG8C
Brand Name :
XRTOOLS
Model Number :
12X160
Certification :
ISO9000
Place of Origin :
CHINA
MOQ :
100pcs
Price :
$0.28-20/pc
Payment Terms :
L/C, T/T, , Western Union
Supply Ability :
50000pcs/per day
Delivery Time :
25-30days
Packaging Details :
PVC bag;Plastic tube,Blister Card,Plastic Hook
Finish :
sandblasted
Process :
Milled Flutes and Auto-Welded Tip
Description

Bricks / Concrete 10mm Sds Hammer Drill Bits With Single / Double

introduction

High quality sds hammer drill bits to work in masonry applications; brick, stone, concrete, and block

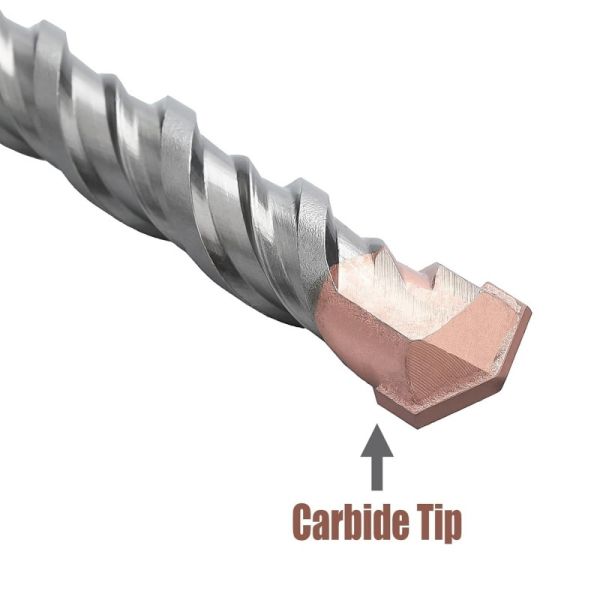

SDS hammer drill bit feature 2-flute self-centering carbide tip ensuring fast cut speeds and MAXIMUM life

Our SDS drill bits haExtended life – our concrete bits optimized design allows material to quickly exit the

hole while allowing the concrete hammer drill bit to remain cool

Bricks Concrete SDS Drill Bit Single Double Hammer Drill Bits

the differences of SDS Drill Bit :

SDS & SDS Plus SDS Max
Shank Size Ø10mm Ø18mm
Drill Size 5/32 to 1 1/8-inches(≈ 4mm to 28mm) ½” to 2-inches
(≈ 12.5mm to 50mm)
Profile Symmetric. (2 closes slots and 2 open grooves) 3 Open grooves and 2 closed slots.
PowerTool SDS and SDS plus rotary hammers SDS Max Roto hammers, Jackhammers and demolition hammers.
Uses Light Duty Applications Heavy-duty applications
1 Core bits up to 4” thin wall 2 Drilling ledger boards 3 Drill holes in brick, concrete and masonry up to 1” in diameter. 1 Core drill bits up to 6” walls 2 Concrete demolition 3 Professional demolition and construction work.

size:

Dia. Flute Length Overall Length
8.0 5/16 400 450
10.0 3/8 400 450
12.0 15/32 400 450
13.0 1/2 400 450
14.0 9/16 400 450
15.0 19/32 400 450
16.0 5/8 400 450
18.0 23/32 400 450
20.0 3/4 400 450
22.0 7/8 400 450
24.0 15/16 400 450
25.0 1 400 450
26.0 - 400 450
28.0 - 400 450
10.0 3/8 550 600
12.0 15/32 550 600
14.0 9/16 550 600
16.0 5/8 550 600
18.0 23/32 550 600
20.0 3/4 550 600
16.0 5/8 750 800
12.0 15/32 950 1000
14.0 9/16 950 1000
16.0 5/8 950 1000
18.0 23/32 950 1000
20.0 3/4 950 1000

SDS bits are designed for use with a rotary hammer drill. The SDS bit is placed into the end of the drill and is

held in place by twisting the chuck of the drill, locking the bit in the collar. The SDS masonry bit is not held

solidly in the chuck of the drill but slides up and down like a piston.
