Steam Generator Requirements for Industrial Shrink Tunnels
Steam Generator Requirements for Industrial Shrink Tunnels
Steam Generator Requirements for Industrial Shrink Tunnels
Steam Generator Requirements for Industrial Shrink Tunnels
Specifications
Brand Name :
YN
Model Number :
YN24-0.7-D
Certification :
CE
Place of Origin :
shanghai
MOQ :
1 SET
Price :
USD1100-1500/SET
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
100 sets /month
Delivery Time :
3 days
Packaging Details :
export wooden case
Electric power :
27KW
Rated pressure :
0.7 M pa
Rated evaporation :
34.4 kg/h
Steam temperature :
170℃
Voltage :
380V 3P 50HZ
Water inlet caliber :
DN15
Description

Steam generator requirements for industrial shrink tunnels (Parameter) :

1.Type: YN-0.7-D
2.Electric power: 27KW
3.Rated pressure:0.7 M pa(7kg, 7bar)
4.Rated evaporation:34.4 kg/h
5.Steam temperature:170℃
6.Voltage: 380V 3P 50HZ
7.Water inlet caliber: DN15
8.Steam caliber: DN15
9.Drain outlet caliber: DN15
10.power wire: 10mm2
11.Dimension:660*420*1230mm(L*W*H)mm
12.Weight: 120 KG
13. Heating tube: 2 groups
14. heating tube: 316L stainless steel
15.Produce steam within 10 minutes
16. Water tank: 304L stainless steel
17. With 4 movable wheels
18. LCD intelligent controller

Steam generator requirements for industrial shrink tunnels Characteristics:

1. Unique Internal Structure Design That Is Exempted from Applying for a Boiler Use Certificate

2. Use LCD Automatic Intelligent Electronic Control System

3. The Use of High-quality Core Components—Electric Heating Pipe

4. Use High-quality Components

5. Multiple Safety Interlock Protection

6.Putting Reasonable Electric Load into Use Could Save Energy and Extend Life

Cycle

El 7.Extremely Easy to Install and Use

B 8. Scientific Design and Attractive Appearance

9. 9.Use Electricity Is More Environmentally Friendly and More Economical

1 1 0.Heating Tube is Made of Quality 316L Stainless Steel

Steam Generator Requirements for Industrial Shrink Tunnels

Steam Generator Requirements for Industrial Shrink Tunnels

Steam Generator Requirements for Industrial Shrink Tunnels

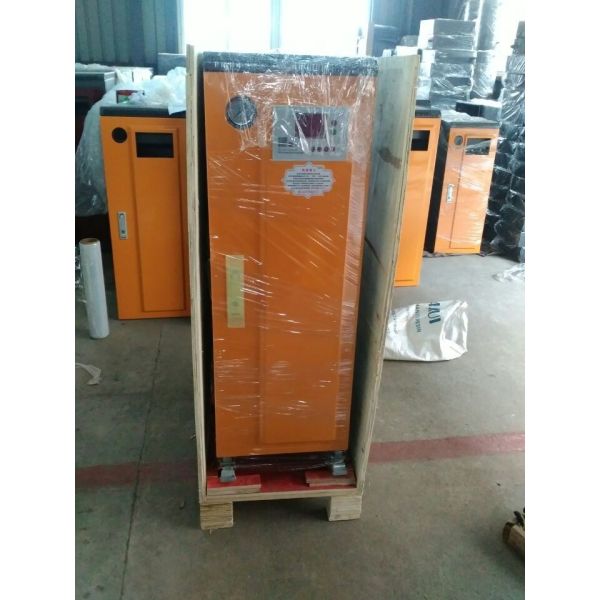

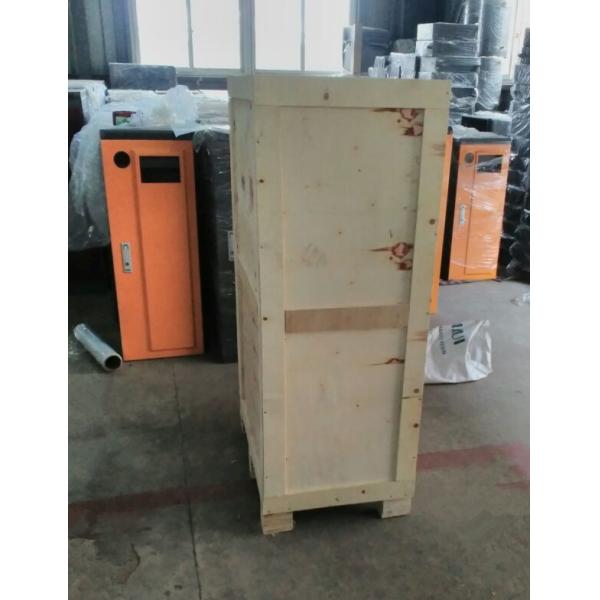

Steam generator requirements for industrial shrink tunnels PACKING DETAILS

Steam Generator Requirements for Industrial Shrink Tunnels

Steam Generator Requirements for Industrial Shrink Tunnels
