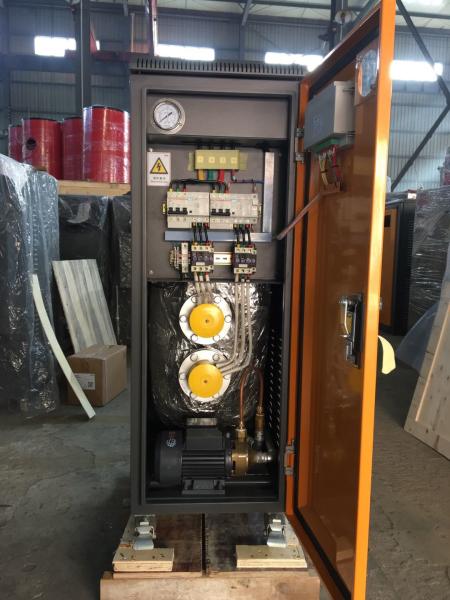

24KW 34.4kg/hr Automatic Electric Steam Boiler/Steam Generator

Specifications

Brand Name :

Model Number :

YN24-0.7-D

Certification :

Place of Origin :

shanghai

MOQ :

1 SET

Price :

USD1500-2000/SET

Payment Terms :

Western Union, L/C, T/T

Supply Ability :

100 sets /month

Delivery Time :

3 days

Packaging Details :

export wooden case

Electric power :

27KW

Rated pressure :

0.7 M pa

Rated evaporation :

34.4 kg/h

Steam temperature :

170℃

Voltage :

380V 3P 50HZ

Water inlet caliber :

DN15

Description

24KW Electric Steam Boiler (Parameter)

1.Type: YN-0.7-D
2.Electric power: 27KW
3.Rated pressure:0.7 M pa(7kg, 7bar)
4.Rated evaporation:34.4 kg/h
5.Steam temperature:170℃
6.Voltage: 380V 3P 50HZ
7.Water inlet caliber: DN15
8.Steam caliber: DN15
9.Drain outlet caliber: DN15
10.power wire: 10mm2
11.Dimension:660*420*1230mm(L*W*H)mm
12.Weight: 120 KG
13. Heating tube: 2 groups
14. heating tube: 316L stainless steel
15.Produce steam within 10 minutes
16. Water tank: 304L stainless steel
17. With 4 movable wheels
18. LCD intelligent controller

Characteristics

1. Unique Internal Structure Design That Is Exempted from Applying for a Boiler Use Certificate

2. Use LCD Automatic Intelligent Electronic Control System

3. The Use of High-quality Core Components—Electric Heating Pipe

4. Use High-quality Components

5. Multiple Safety Interlock Protection

6.Putting Reasonable Electric Load into Use Could Save Energy and Extend Life

Cycle

El 7.Extremely Easy to Install and Use

B 8. Scientific Design and Attractive Appearance

9. 9.Use Electricity Is More Environmentally Friendly and More Economical

1 1 0.Heating Tube is Made of Quality 316L Stainless Steel

PACKING DETAILS
