High-performance Steam Shrink Tunnel for Bottle Cap Sealing Howfond
High-performance Steam Shrink Tunnel for Bottle Cap Sealing Howfond
High-performance Steam Shrink Tunnel for Bottle Cap Sealing Howfond
High-performance Steam Shrink Tunnel for Bottle Cap Sealing Howfond
High-performance Steam Shrink Tunnel for Bottle Cap Sealing Howfond
High-performance Steam Shrink Tunnel for Bottle Cap Sealing Howfond
Specifications
Brand Name :
Howfond
Model Number :
HF-2300M
Certification :
CE
Place of Origin :
china
MOQ :
1 set
Price :
USD2400
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
500 sets per month
Packaging Details :
export wooden case
material :
stainless steel
length :
2300mm
Blower powder :
Ø12, 0.25KW
Powder supply of blower :
220V 3P 60Hz or 220V 1P 50Hz
Entrance /exit height :
Max 350mm
Running pressure :
Max 0.6Mpa
Weight :
230kg
Description

Hot selling Heat Cap Seal Shrink Tunnel/bottle shrink wrapping machine/shrink sleeve steam tunnel

1. Brief Introduction

Steam shrink tunnel is used for shrinking sleeve labels to label kinds of bottles: different and irregular round bottles, square bottles, flat bottles and women-shaped bottles. By shrinking PVC or PET sleeve labels to seal bottles caps /necks, cover bottles body even shrink wrap bottle bottom.

To get smooth shrink effect, we usually adjust the heights and positions of the 3 sections of steam spray tubes insides of tunnel. Bottles run on the conveyor, the shrink usually goes from down to top of bottles.

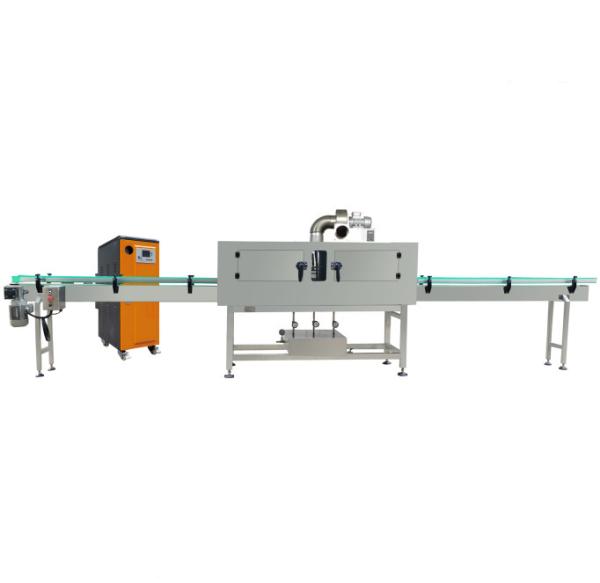

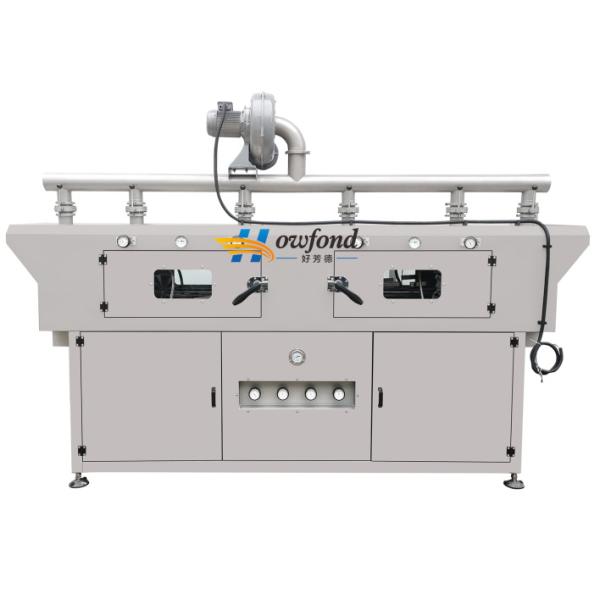

Steam Shrink Tunnel

2.Advantage of Howfond’s Steam shrink tunnel.

1)our steam pipes is SS316 are with Electrolytic polishing which will make the steam pipes not rust .
2)there is speed control on the blowing fan which can control the steam inside to make the shrinking better
3)the blowng fan and tunnel feet is both stainless steel
4)water tray under the conveyor to avoid the steam water fall on the flower .
5)we use round steam pipes with 0.5mm hole on it instead of square steam pipes , round steam pipes can save at least 30% steam and make better shrinking

High-performance Steam Shrink Tunnel for Bottle Cap Sealing Howfond

High-performance Steam Shrink Tunnel for Bottle Cap Sealing Howfond

High-performance Steam Shrink Tunnel for Bottle Cap Sealing Howfond

High-performance Steam Shrink Tunnel for Bottle Cap Sealing Howfond

High-performance Steam Shrink Tunnel for Bottle Cap Sealing Howfond

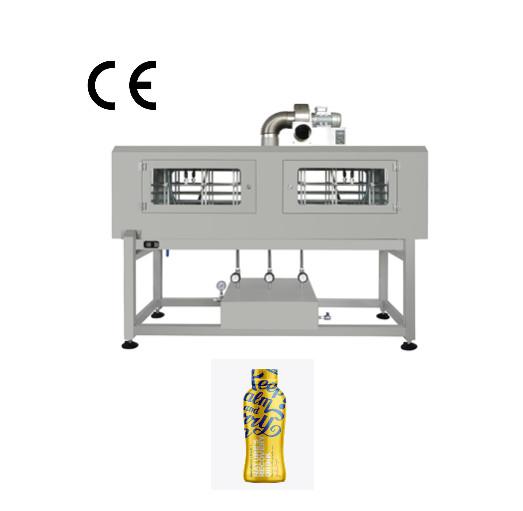

Steam Shrink Tunnel

3. Parameters

Item Models HF-1200M HF-1500M HF-2000M HF-2300M
Length of tunnel 1.2meters 1.5meters 2.0meters 2.3meters
Blower powder Ø12, 0.25KW Ø12, 0.25KW Ø12, 0.25KW Ø12, 0.25KW
Powder supply of blower 220V 3P 60Hz or 220V 1P 50Hz
Entrance /exit height Max 350mm
Entrance /exit width 130~210mm (fixed size once confirmed)
Running pressure Max 0.6Mpa Max 0.6Mpa Max 0.6Mpa Max 0.6Mpa
Weight 180kg 200Kg 220kg 230kg
Steam consumption 18kg/h 21kg/h 24kg/h 24kg/h
Conveyor speed 0~35m/minute 0~35m/minute 0~35m/minute 0~35m/minute
Outline size (m) L1.2*W0.4*H1.5 L1.5*W0.4*H1.5 L2.0*W0.4*H1.5

L2.3*
