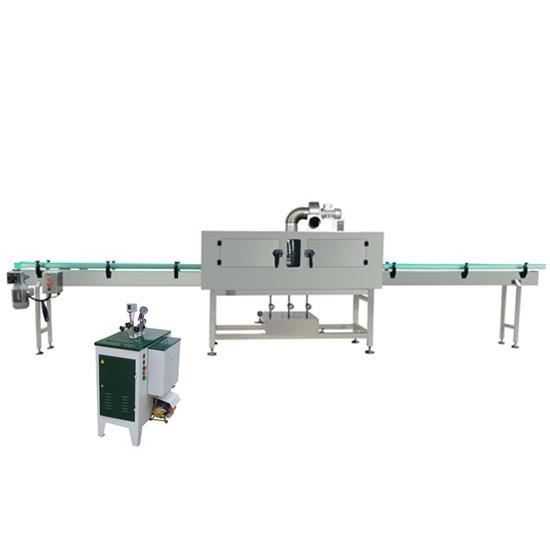

Energy Saving Steam Shrink Tunnel for Bottling Plant
Energy Saving Steam Shrink Tunnel for Bottling Plant
Energy Saving Steam Shrink Tunnel for Bottling Plant
Energy Saving Steam Shrink Tunnel for Bottling Plant
Energy Saving Steam Shrink Tunnel for Bottling Plant
Energy Saving Steam Shrink Tunnel for Bottling Plant
Energy Saving Steam Shrink Tunnel for Bottling Plant
Energy Saving Steam Shrink Tunnel for Bottling Plant
Specifications
Brand Name :
Howfond
Model Number :
HF-1500M
Certification :
CE
Place of Origin :
china
MOQ :
1 set
Price :
USD2400
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
500 sets per month
Packaging Details :
export wooden case
material :
stainless steel
length :
1500mm
Blower powder :
Ø12, 0.25KW
Powder supply of blower :
220V 3P 60Hz or 220V 1P 50Hz
Entrance /exit height :
Max 350mm
Running pressure :
Max 0.6Mpa
Weight :
200kg
Description

Keywords
energy saving steam shrink tunnel, low consumption steam tunnel, cost effective steam machine, bottling plant steam tunnel

Small steam shrink tunnel for small business Introduction :

This energy-saving steam shrink tunnel reduces steam consumption, helping factories lower operating cost in daily production.

Energy Saving Steam Shrink Tunnel for Bottling Plant

Energy Saving Steam Shrink Tunnel for Bottling Plant

Energy Saving Steam Shrink Tunnel for Bottling Plant

Energy Saving Steam Shrink Tunnel for Bottling Plant

2.Advantage of Howfond’s Fully automatic steam shrink tunnel

(1)Full body of tunnel is made of SS304 stainless steel.

(2)Inside of tunnel , flexible tubes are made of SS316,
(3)Round steam jet pipes save 30% steam at least.
(4)No rusting because of Electropolishing for steam jet pipes and flexible tubes.
(5)Blower motor for steam exhausting is varied and adjustable.
(6)Needle valve,precise steam consumption controlling.
(7)SICION tube to ground for water out.

3.Stainless steel steam shrink tunnel manufacturer Parameters

Item Models HF-1200M HF-1500M HF-2000M HF-2300M
Length of tunnel 1.2meters 1.5meters 2.0meters 2.3meters
Blower powder Ø12, 0.25KW Ø12, 0.25KW Ø12, 0.25KW Ø12, 0.25KW
Powder supply of blower 220V 3P 60Hz or 220V 1P 50Hz
Entrance /exit height Max 350mm
Entrance /exit width 130~210mm (fixed size once confirmed)
Running pressure Max 0.6Mpa Max 0.6Mpa Max 0.6Mpa Max 0.6Mpa
Weight 180kg 200Kg 220kg 230kg
Steam consumption 18kg/h 21kg/h 24kg/h 24kg/h
Conveyor speed 0~35m/minute 0~35m/minute 0~35m/minute 0~35m/minute
Outline size (m) L1.2*W0.4*H1.5 L1.5*W0.4*H1.5 L2.0*W0.4*H1.5 L2.3*W0.4*H1.5

kunshan Howfond Machinery Co.,Ltd.

Add:No.18 DongTing North Rd(215400),ED-Zone,TaiCang City,Jiangsu Province.
Skype: alicehongjin
Tel: +86-0512-89571370
Mobile/WeChat :+86-15692118327
