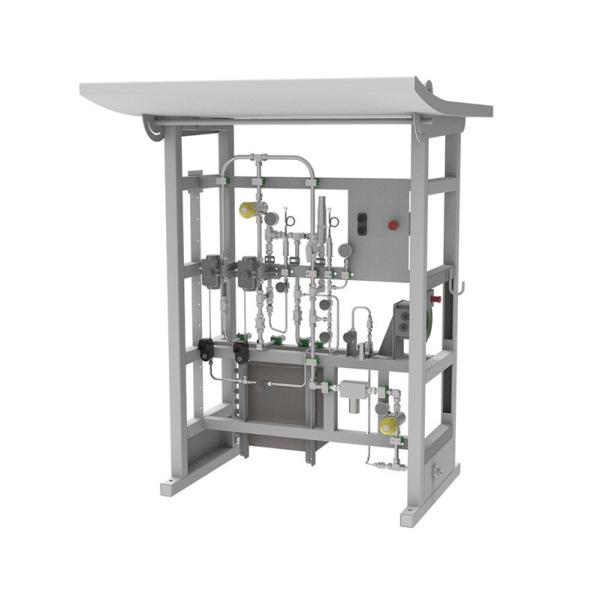

efficient high quality safe Hydrogen loading/unloading post
efficient high quality safe Hydrogen loading/unloading post
Specifications
product name :
hydrogen loading/unloading post
certifications :
Ex ATEX
OEM :
yes
control :
refueling process is automatic
data safe :
power-off data protection
application scenarios :
hydrogen plant, HRS
Description

The hydrogen loading/unloading post consists of the electrical control system, mass flow meter, emergency shut-down valve, breakaway coupling and other pipelines and valves, with the function of intelligently completing the gas accumulation metering.

  • Product features
  • Specifications
  • Ask now

Product features

With hose cycle life self-test function.

Hydrogen loading/unloading post

● The GB type has obtained the Ex certificate; The EN type has obtained the ATEX certificate.
● The refueling process is automatically controlled, and the refueling amount and unit price can be automatically displayed (the liquid crystal display is luminous type).
● It has the function of power-off data protection and data delay display.

● When the power is suddenly off during the refueling process, the electric control system will automatically save the current data and continues to extend the display, successfully completing the refueling settlement.
● Super large storage capacity, the post can store and query the latest refueling data.
● It has the preset refueling function of fixed gas volume and deposit amount, and the rounded amount stops during the refueling process.

● It can display real-time transaction data and check historical transaction data.
● It has the function of automatic fault detection and can automatically display the fault code.
● The pressure value can be directly displayed during the refueling process, and the refueling pressure can be adjusted within the specified range.
● It has the function of safe pressure relief during refueling.

● With IC card payment function.
● MODBUS communication interface can be used, which can monitor the status of the hydrogen unloading post and can realize the network management of the filling equipment.
● With emergency shutoff function.
● With hose breakaway protection function.

Application Scenario

Hydrogen loading post --- mainly used in hydrogen plants, fill the hydrogen into 20MPa hydrogen trailer by hydrogen loading post.
Hydrogen unloading post---mainly used in hydrogen refueling stations, unloads hydrogen @ 20MPa from the hydrogen trailer into the hydrogen compressor for pressurizing through the hydrogen unloading post.
