high quality high safety Hydrogen Nozzle with two pressure degrees
high quality high safety Hydrogen Nozzle with two pressure degrees
Specifications
product name :
Containerized LNG station
OEM :
yes
application scenario :
vehicle
stock :
yes
function :
refuel hydrogen vehicle
pressure degrees :
35Mps 70Mpa
Description

The core parts for gas dispenser of compressed hydrogen include: mass flowmeter for hydrogen, hydrogen refueling nozzle, breakaway couplin for hydrogen, etc. Among which the mass flowmeter for hydrogen is the core part for gas dispenser of compressed hydrogen and the type selection of flowmeter can directly influence the performance for gas dispenser of compressed hydrogen.

  • Product features
  • Specifications
  • Ask now

Product features

Patented seal structure is adopted for the hydrogen refueling nozzle.

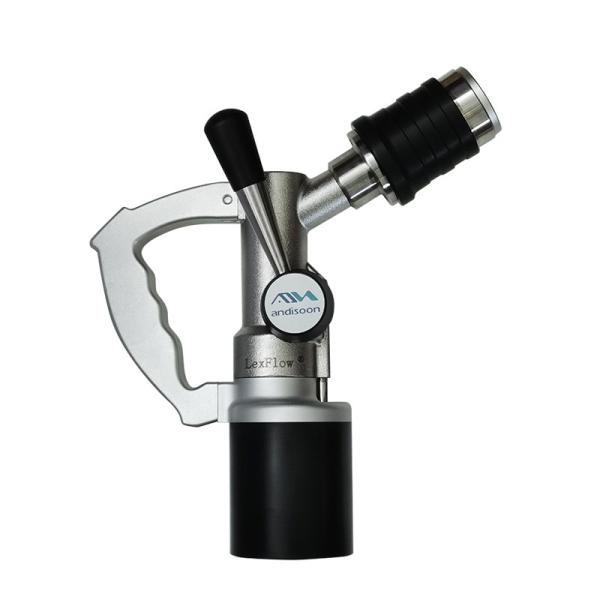

Hydrogen Refueling Nozzle

● Anti-explosion grade: IIC.
● It is made of high-strength anti-hydrogen-embrittlement stainless steel.

Specifications

Mode

T631-B

T633-B

T635

Working medium

H2, N2

Ambient Temp.

-40℃～＋60℃

Rated working pressure

35MPa

70MPa

Nominal diameter

DN8

DN12

DN4

Air inlet size

9/16"-18 UNF

7/8"-14 UNF

9/16"-18 UNF

Air outlet size

7/16"-20 UNF

9/16"-18 UNF

-
Communication line interface

-

-

Compatible with SAE J2799/ISO 8583 and other protocols

Main materials

316L

316L

316L Stainless Steel

Product weight

4.2kg

4.9kg

4.3kg

Application scenario

Hydrogen Dispenser Application
