Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H014A3DQIST4N10
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Display content :
240×240 dots
Dimensions (mm) :
27.56×30.7×1.82
Field of view window size :
Full viewing angle
Backlight brightness :
400cd/m2
driver chip :
ST7789
Interface :
SPI-4L
Operating Temperature: :
-20~70℃
Description

If you want to buy, please go to https://www.display-lcd.com/

TFT-H014A3DQIST4N10 | 1.4 Inch IPS TFT LCD Display Module | 240x240 Square Screen for Smartwatch

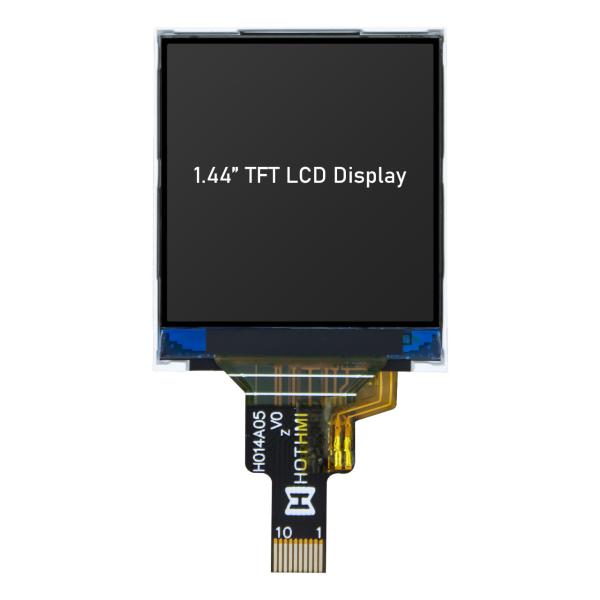

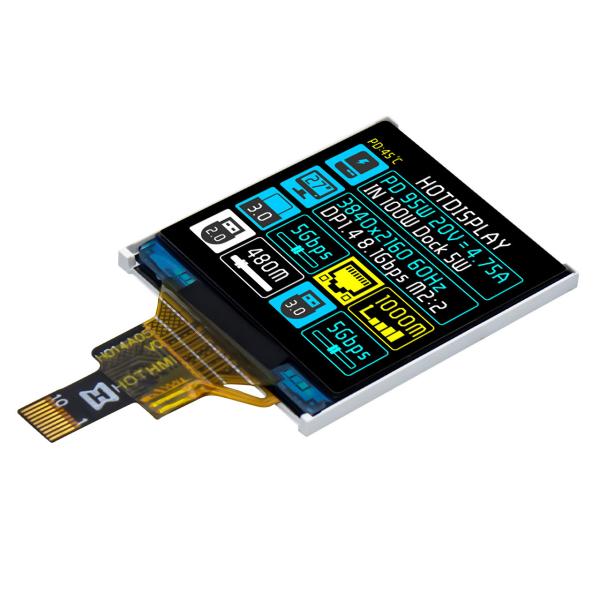

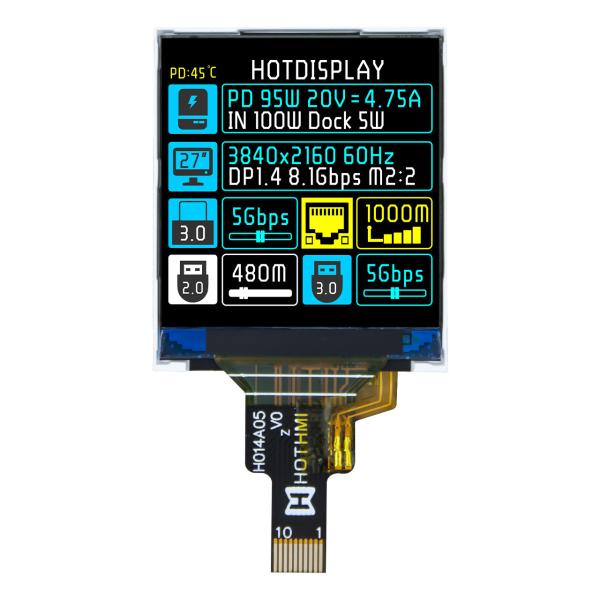

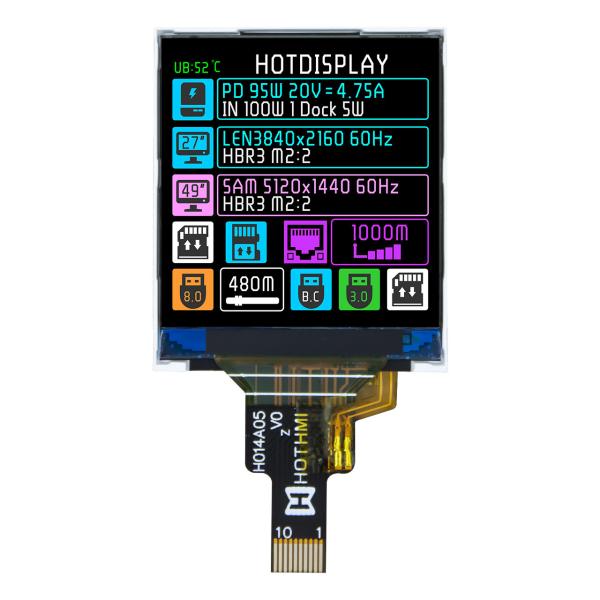

TFT-H014A3DQIST4N10 is a 1.4-inch square TFT LCD display module with a resolution of 240x240, a built-in ST7789 controller, an optional touch screen, high picture quality, IPS wide viewing angle, support for 8080 8-bit, 9-bit, 16-bit, 18-bit parallel interface and 3-wire, 4-wire serial interface, 65K/262K true color, FPC connection (optional connector), 2.8V voltage, and support for vertical display.

This product is presented to users in a 1.4 square appearance, with a delicate body, but the content that can be displayed is not monotonous at all. The application range can be smart wearables, electronic equipment, instrumentation and other products. Suitable for 8051 PIC, AVR, ARDUINO, ARM, Raspberry Pi and other single-chip microcomputer development platforms. All materials meet environmental protection requirements and RoHS standards.

This is a display version with FPC flexible cable. The ST7789 controller has strong compatibility. Developers can develop driver boards according to the functions of specific products. If this model is not suitable, we also provide the same size 128x128 resolution TFT-H014A1QQTST5N26. Of course, if the developer lacks development experience, we also provide models with driver boards for this display: 1.4-inch SPI display module HTM-H014A3-SPI-V0, 1.44-inch 128x128 resolution TFT module LCM-TFT014T1QQS4LN08D.

project Parameter Description unit
TFT series Standard TFT
Diagonal size 1.4” Inch
Resolution 240 × RGB × 240 (TFT) dots
Dimensions 27.56x30.7x1.82 mm
Effective area (AA) 25.2x25.2 mm
LCD type Square TFT
Display perspective 80/80/80/80 (IPS)
Aspect ratio 1:1
Backlight type LED, white
TFT driver IC ST7789
Touch panel None
Surface Glossy
Brightness 400 cd/㎡
Operating temperature -20~+70 °C
Storage temperature -30~+80 °C
