Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H013A6QQIGC7N10-V1
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Display content :
240x240 dots
Dimensions (mm) :
35.6x38.1x1.6
Field of view window size :
Full View
Backlight brightness :
750cd/m2
driver chip :
GC9A01
Interface :
SPI
Operating Temperature: :
-20~70℃
Description

1.28 inch TFT LCD round display | 240x240 Round IPS Display

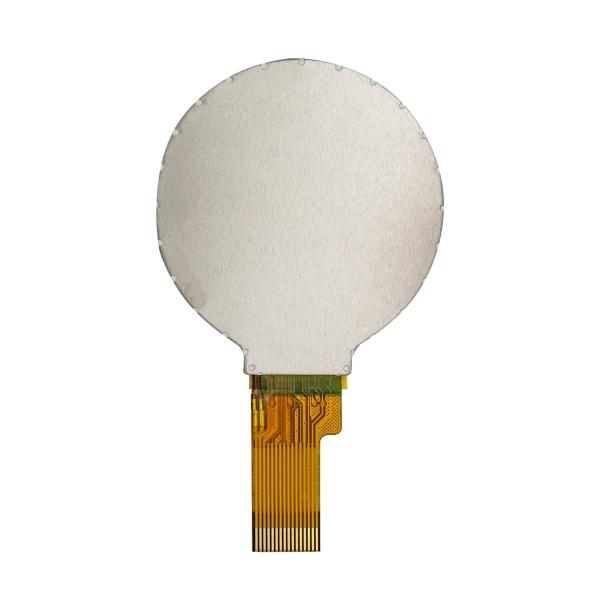

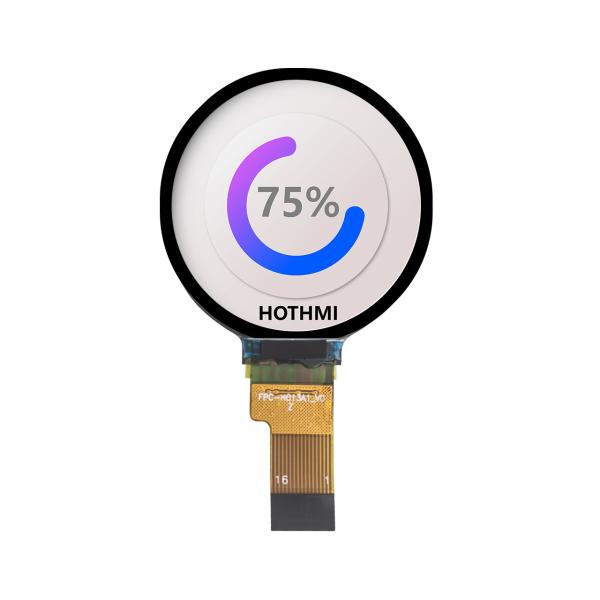

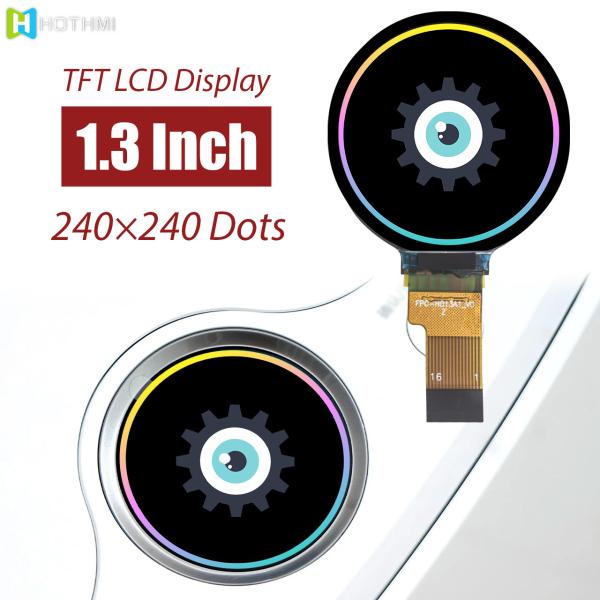

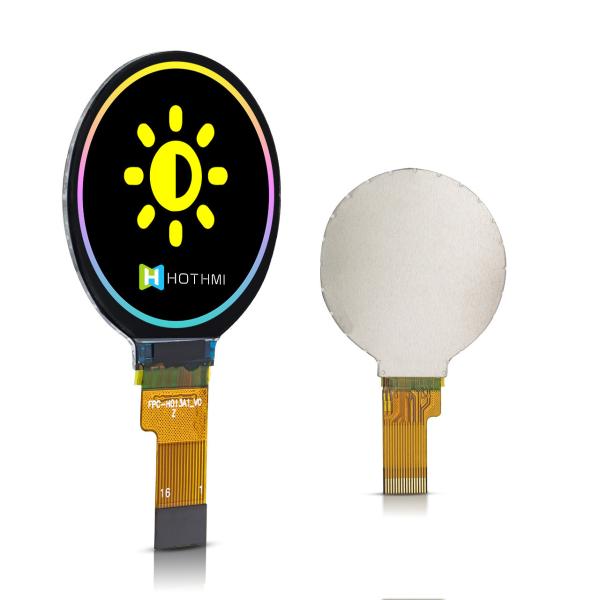

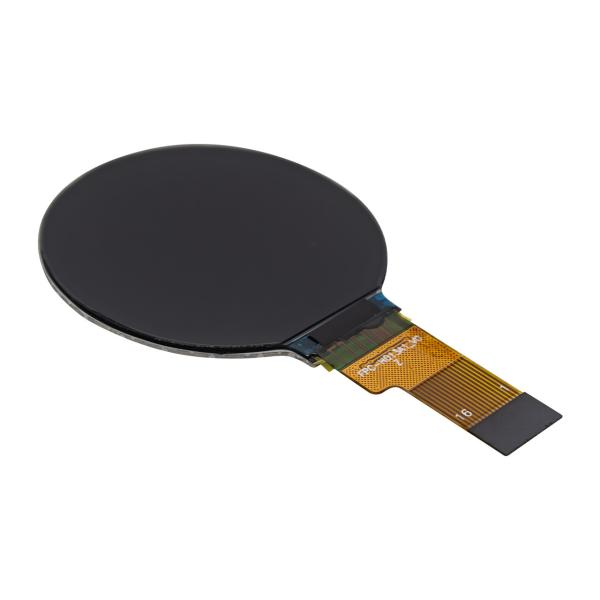

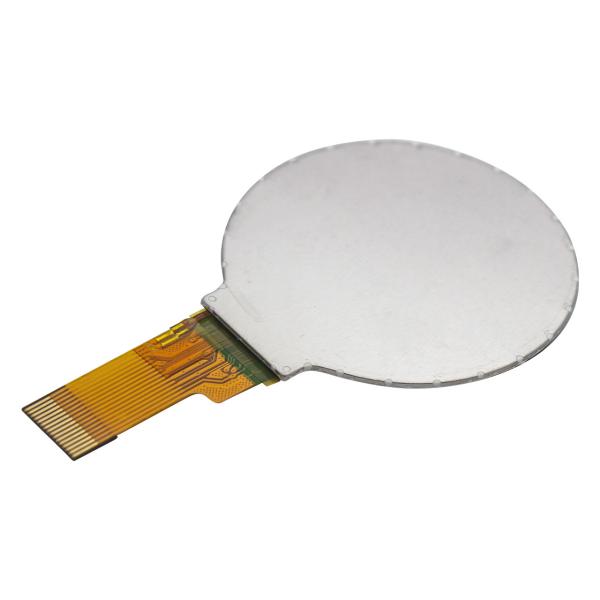

This1.28 inch TFT LCD round display is a 1.28-inch circular TFT LCD display with a resolution of 240x240 pixels. This circular TFT display consists of an IPS TFT-LCD panel with a built-in GC9A01 driver IC, which can communicate via an SPI interface.

This 1.28 inch TFT LCD round display adopts an IPS panel, which has higher contrast, a pure black background when the display or pixel is turned off, a wider viewing angle of Left: 80 / Right: 80 / Top: 80 / Bottom: 80 degrees (typical), a contrast ratio of 1,000:1 (typical), a brightness of 750 nits (typical), and an anti-glare surface panel. If customers need a capacitive touch screen, please choose model TFT-H013A6QQIGC7N10-V1.

The supply voltage of LCM is 1.8V to 2.8V, with a typical value of 2.8V. The operating temperature is -20℃ to +70℃, and the storage temperature is -30℃ to +80℃. The display modules are suitable for compact devices such as smart meters, Android/RK motherboards, wearable devices and instrument applications. They are also ideal for home automation products, white products and video systems. This model also has a shorter cable TFT-H013A6QQIGC7N10 . For the same size circular display, we also provide 16PIN MIPI interface TFT-H013A1HQIST3N16 circular display, which may provide you with more choices.

ITEM PARAMETER DESCRIPTION UNIT
TFT series TFT-H013A6QQIGC7N10-V1
Diagonal size 1.28” Inch
Resolution 240x240 Dot
Dimensions 35.6x38.1x1.6 mm
Active area (AA) 32.4x32.4 mm
LCD type 1.28” TFT Module mm
Display viewing angle Full View
Aspect ratio 1:1
Backlight type LED white
TFT driver IC GC9A01
Brightness 750cd/m2 cd/m2
Operating temperature -20~70℃ ℃
Storage temperature -30~80℃

℃
