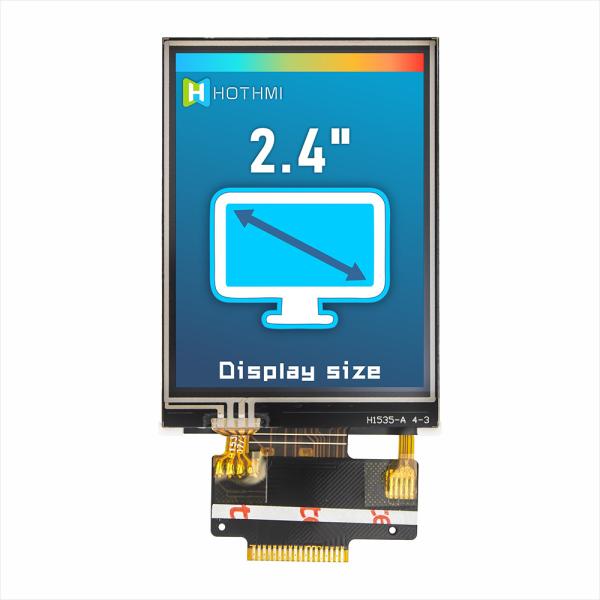

2.4 Inch TFT Display Module With Resistive Touchscreen | ST7789 Driver IC
2.4 Inch TFT Display Module With Resistive Touchscreen | ST7789 Driver IC
2.4 Inch TFT Display Module With Resistive Touchscreen | ST7789 Driver IC
2.4 Inch TFT Display Module With Resistive Touchscreen | ST7789 Driver IC
2.4 Inch TFT Display Module With Resistive Touchscreen | ST7789 Driver IC
2.4 Inch TFT Display Module With Resistive Touchscreen | ST7789 Driver IC
2.4 Inch TFT Display Module With Resistive Touchscreen | ST7789 Driver IC
2.4 Inch TFT Display Module With Resistive Touchscreen | ST7789 Driver IC
2.4 Inch TFT Display Module With Resistive Touchscreen | ST7789 Driver IC
2.4 Inch TFT Display Module With Resistive Touchscreen | ST7789 Driver IC
2.4 Inch TFT Display Module With Resistive Touchscreen | ST7789 Driver IC
2.4 Inch TFT Display Module With Resistive Touchscreen | ST7789 Driver IC
2.4 Inch TFT Display Module With Resistive Touchscreen | ST7789 Driver IC
2.4 Inch TFT Display Module With Resistive Touchscreen | ST7789 Driver IC
2.4 Inch TFT Display Module With Resistive Touchscreen | ST7789 Driver IC
2.4 Inch TFT Display Module With Resistive Touchscreen | ST7789 Driver IC
2.4 Inch TFT Display Module With Resistive Touchscreen | ST7789 Driver IC
2.4 Inch TFT Display Module With Resistive Touchscreen | ST7789 Driver IC
Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H024B26QVTST3R18
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Display content :
240x320 dots
Dimensions (mm) :
42.72x60.26x3.65
Field of view window size :
Full viewing angle
Backlight brightness :
350cd/m2
driver chip :
ST7789
Interface :
SPI
Operating Temperature: :
-20~70℃
Description

If you want to buy, please go to https://www.display-lcd.com/

2.4" TFT Panel | 240x320 Resistive MCU TFT Display | ST7789 Controller

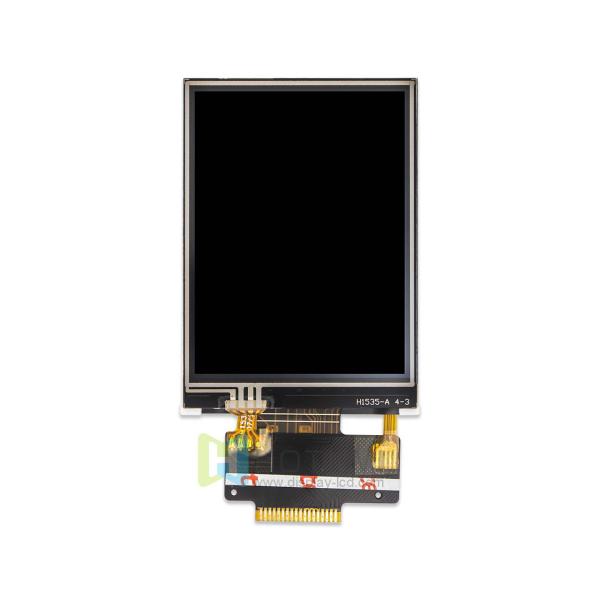

This 2.4-inch TFT panel features a resistive touchscreen and a 240x320 pixel resolution. The TFT panel boasts a high contrast ratio of 800:1, delivering deep blacks and vibrant colors. IPS technology enables full viewing angles, providing stunning clarity, excellent color reproduction, enhanced image consistency, and high contrast.

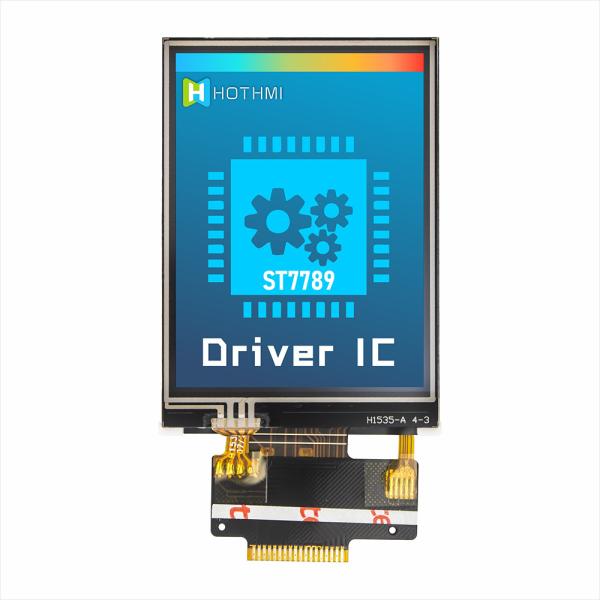

The TFT-H024B26QVTST3R18 incorporates an ST7789 controller and uses an MCU serial interface to transmit data to the display. It is compatible with the C8051/Arduino/STM32 series. This model features a resistive touchscreen for accurate touch control, allowing smooth operation even with a fingertip. It is suitable for a wide range of applications, including industrial control systems, home automation, and portable electronics.

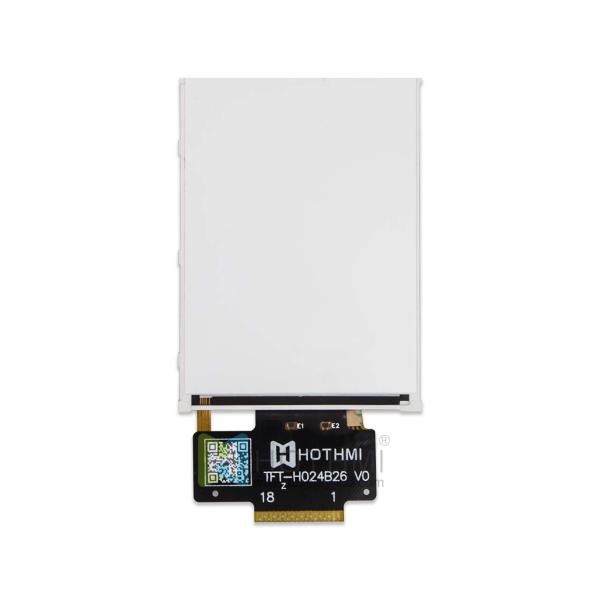

Constructively, this 2.4-inch TFT panel utilizes an FPC (flexible flat cable) connection, ensuring easy electrical connection and allowing developers to conveniently connect the display to their development board. Our displays are RoHS-compliant and adhere to strict environmental and safety standards.

The non-touch version of this product is the TFT-H024B26QVTST4N18. Users can also choose the capacitive touch model TFT-H024A16QVIST4C10in this series. If users do not have development capabilities, we also provide a module with an intelligent driver board: HTM-H024B25-UART-A01.

ITEM PARAMETER DESCRIPTION UNIT
TFT series TFT-H024B26QVTST3R18
Diagonal size 2.4” Inch
Resolution 240x320 Dot
Dimensions 42.72x60.26x3.65 mm
Active area (AA) 36.72x48.96 mm
LCD type TFT LCD Display mm
Display viewing angle Full View
Aspect ratio 2:3
Backlight type LED white
TFT driver IC ST7789V
Brightness 1700 cd/m2
Operating temperature -20~70℃ ℃
Storage temperature -30~80℃ ℃
