Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H020A4QVIST6N40
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Display content :
240x320 dots
Dimensions (mm) :
35.7x51.2x2.3
Field of view window size :
Full View
Backlight brightness :
600cd/m2
driver chip :
ST7735
Interface :
MCU
Operating Temperature: :
-30~85℃
Description

TFT-H020A4QVIST6N40 | 2.0-inch IPS TFT LCD display | 240x320 pixels | MCU 8Bit interface | 40-pin FFC ZIF connection | Optional capacitive/resistive touch screen | Arduino display

TFT-H020A4QVIST6N40 | 2.0 inch IPS TFT LCD display | 240x320 pixels | MCU 8Bit Interface

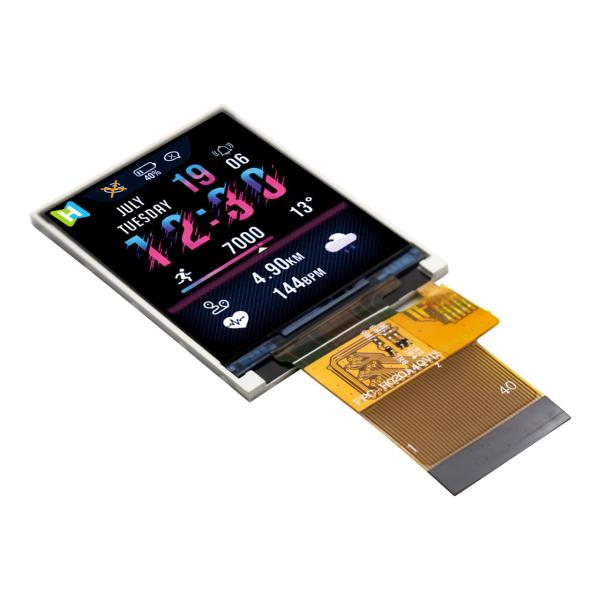

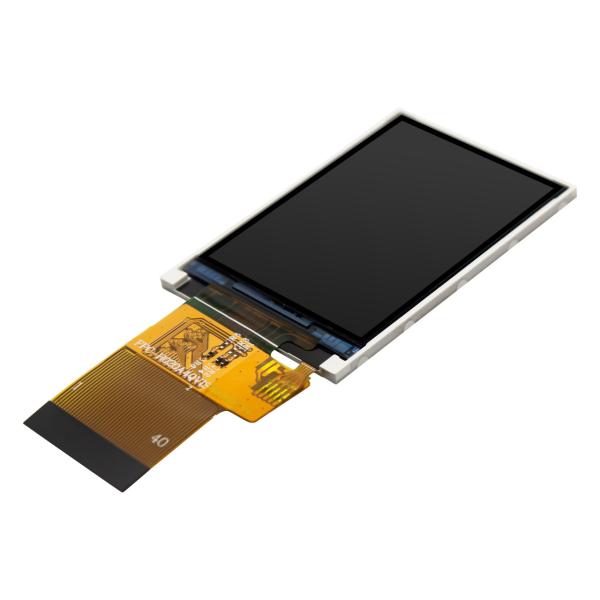

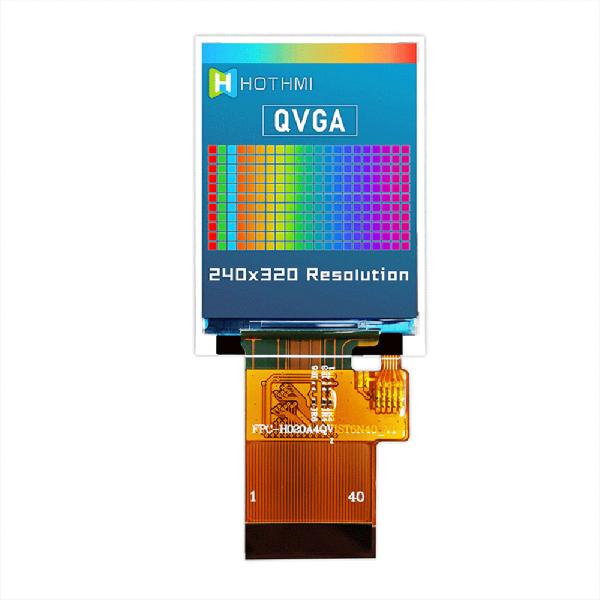

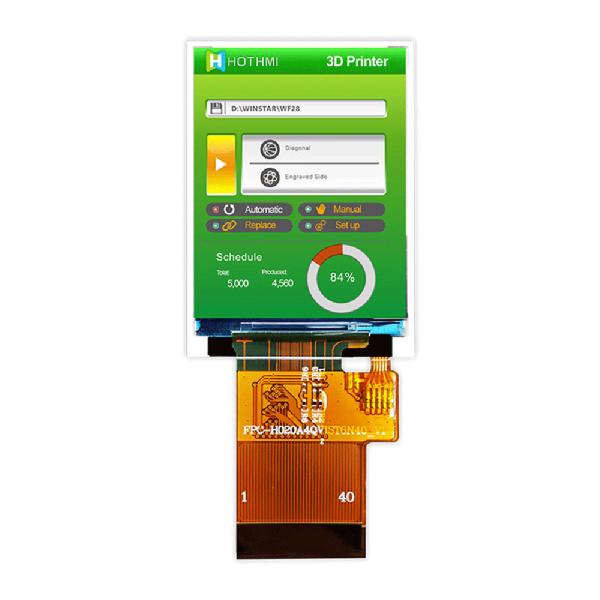

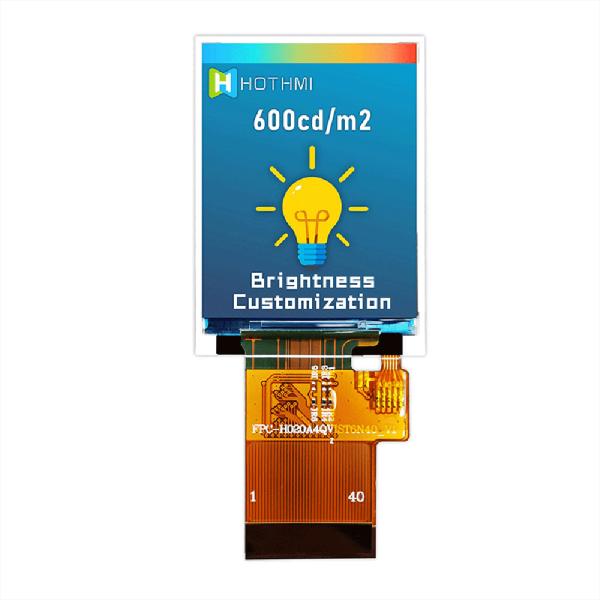

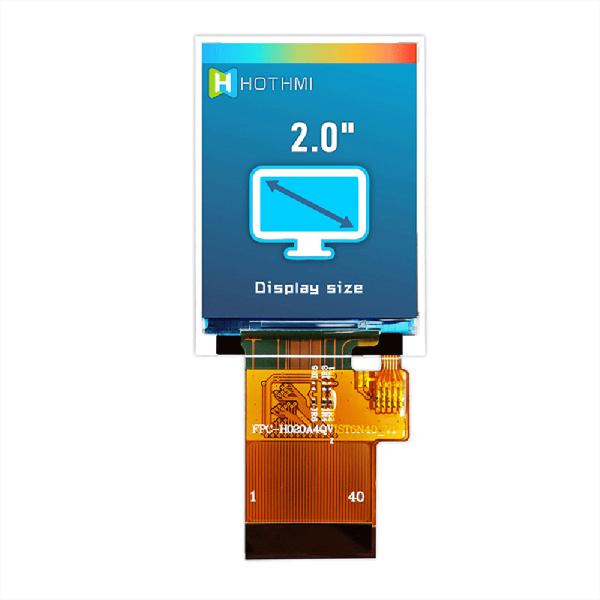

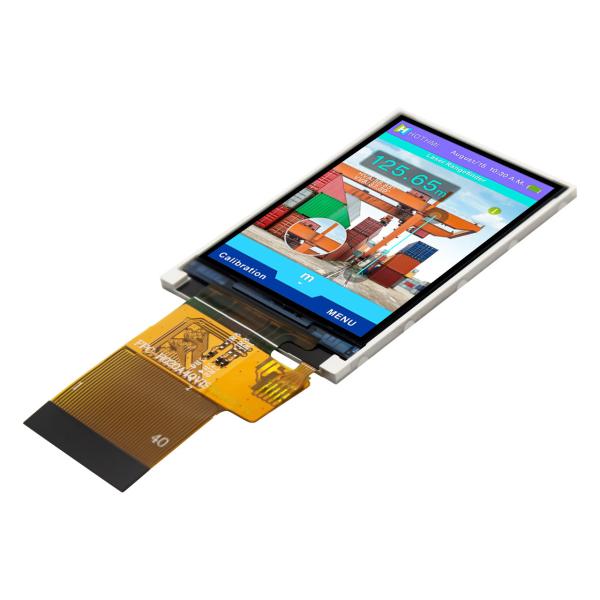

This 2.0-inch TFT display features a resolution of 240x320 pixels, an optimal viewing angle of IPS (Insulator-Based Display) with full viewing angles, and a high-brightness LED with 600 cd/m² brightness. This transmissive LCD boasts a compact size, full IPS viewing angles, and moderate brightness, resulting in a high-quality image.

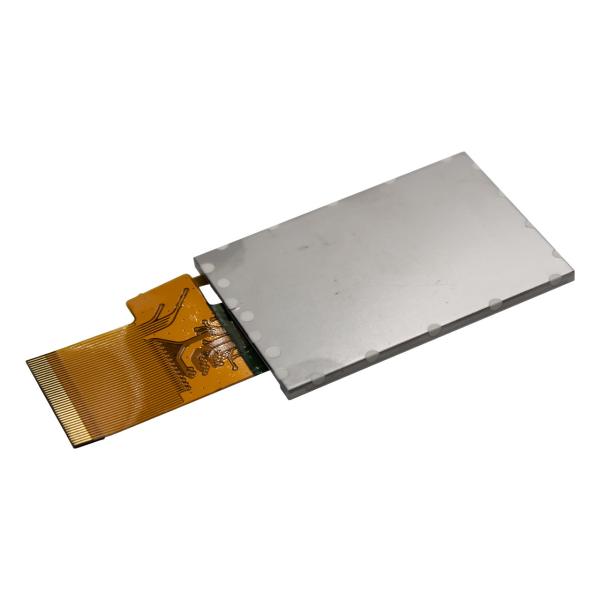

This TFT LCD is powered by an ST7789V controller, delivering exceptional performance and reliability. This controller optimizes display functionality, ensuring smooth operation and accurate rendering of images and graphics. An MCU communication interface ensures efficient and stable information transmission. This model includes a flexible FPC cable that can be bent to suit specific needs, allowing users to easily connect the display to the driver board via plug-in or soldering. Custom cables are also available for custom cable shapes and lengths.

This model is available without a touchscreen, but we can also customize capacitive or resistive touchscreens. The display's cover glass can be customized with various features, including color, shape, and surface finish (AG/AR/AF). For the same size, users can also choose the 2-inch 176x220 resolution TFT-H020B5QCTST2N20 version, or the 2.0-inch 170x320 TFT LCD.

Our monitors are RoHS compliant and adhere to strict environmental and safety standards.

ITEM PARAMETER DESCRIPTION UNIT
TFT series TFT-H020A4QVIST6N40
Diagonal size 2.0” Inch
Resolution 240x320 Dot
Dimensions 35.7x51.2x2.3 mm
Active area (AA) 94.2x150.72 mm
LCD type 2.0” TFT Module mm
Display viewing angle Full View
Aspect ratio 2:3
Backlight type LED white
TFT driver IC ST7789V
Brightness 600cd/m2 cd/m2
Operating temperature -30~85℃ ℃
Storage temperature -30~85℃ ℃
