Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H011A1QCIFT5N15
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Display content :
135×240 dots
Dimensions (mm) :
17.60x31.0x1.65
Field of view window size :
Full View
Backlight brightness :
500cd/m2
driver chip :
JD9852
Interface :
MIPI
Operating Temperature: :
-20~70℃
Description

1.1 inch bar TFT LCD display module | 135x240 IPS MIPI LCD Display | JD9852 Controller

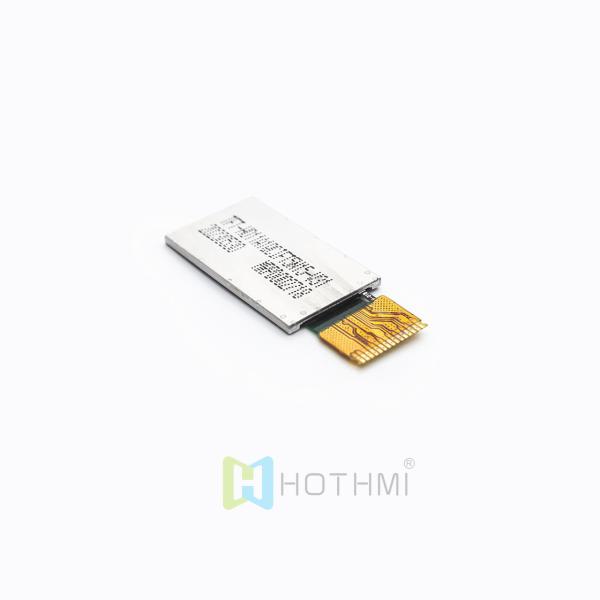

This 1.1 inch bar TFT LCD display module TFT-H011A1QCIFT5N15 is a 1.1 inch IPS TFT bar LCD screen with a resolution of 135x240, built-in JD9852 controller, optional touch screen, high picture quality, IPS wide viewing angle, MIPI interface, 65K/262K true color, FPC connection (optional connector), 1.8V~2.8V voltage, and vertical display support. All materials meet environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for 8051 PIC, AVR, ARDUINO, ARM, Raspberry Pi, Android motherboard, RK motherboard and other single-chip development platforms.

Compared with other models in the same series, this 1.1 inch bar TFT LCD display model has a MIPI interface, supports larger data transmission, and has a brightness of 500nit, which can be seen in the sun. If the user needs, we can also provide customized FPC. This model of 1.1-inch bar TFT LCD screen does not have a driver board. At the same time, we also provide users with the same series of driver module combination HTM-H011A1-SPI-V0, and the same size model TFT-H011A1QCIST3N10with SPI interface.

project Parameter Description unit
TFT series Standard TFT
Diagonal size 1.14” Inch
Resolution 135 × RGB × 240 (TFT) dots
Dimensions 17.60x31.0x1.65 mm
Effective area (AA) 14.8635x24.9120 mm
LCD type Strip TFT
Display perspective 80/80/80/80 (IPS)
Aspect ratio 3:5
Backlight type LED, white
TFT driver IC JD9852
Touch panel None
Surface Glossy
Brightness 500 cd/㎡
Operating temperature -20~+70 °C
Storage temperature -30~+80 °C
