Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H080A12WSIHX6N50
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Display content :
1024x600
Dimensions (mm) :
192.80x116.90x6.55
Field of view window size :
Full viewing angle
Backlight brightness :
600cd/m2
driver chip :
ST7789
Interface :
RGB
Operating Temperature: :
-20~70℃
Description

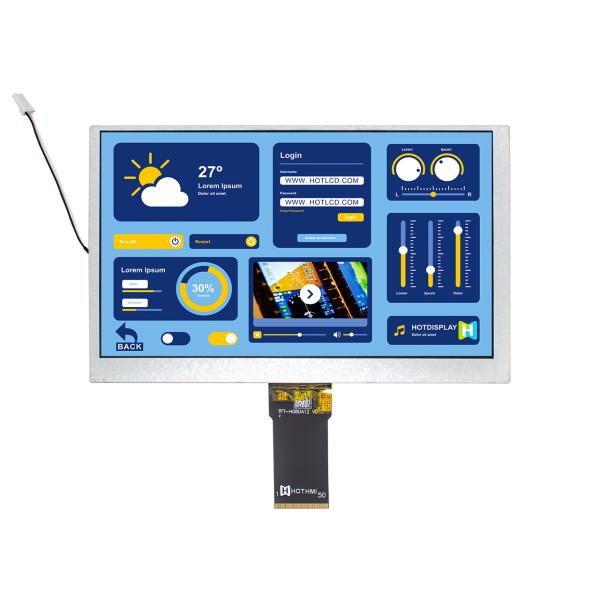

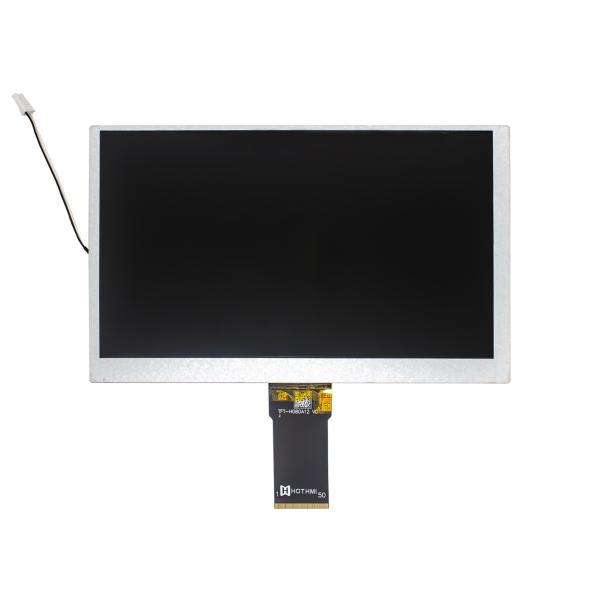

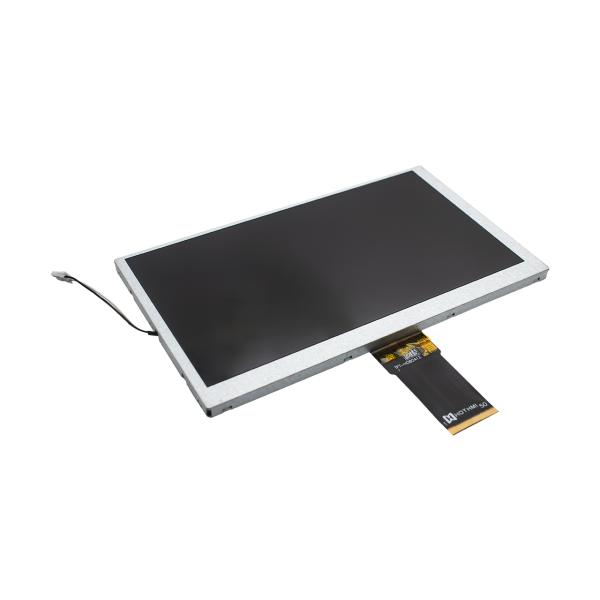

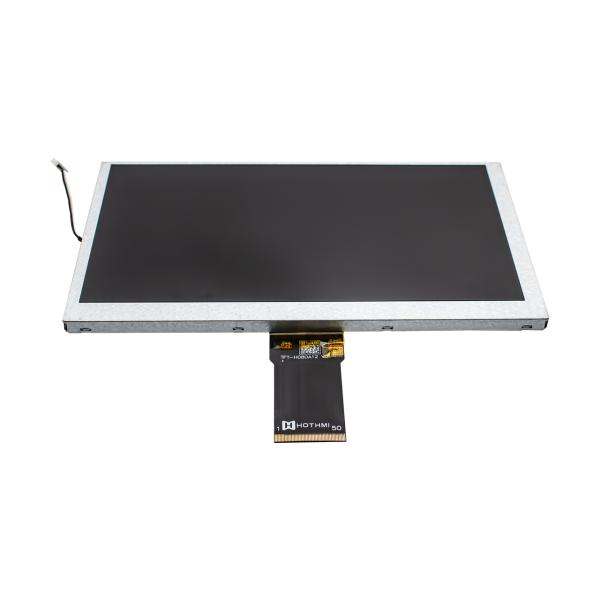

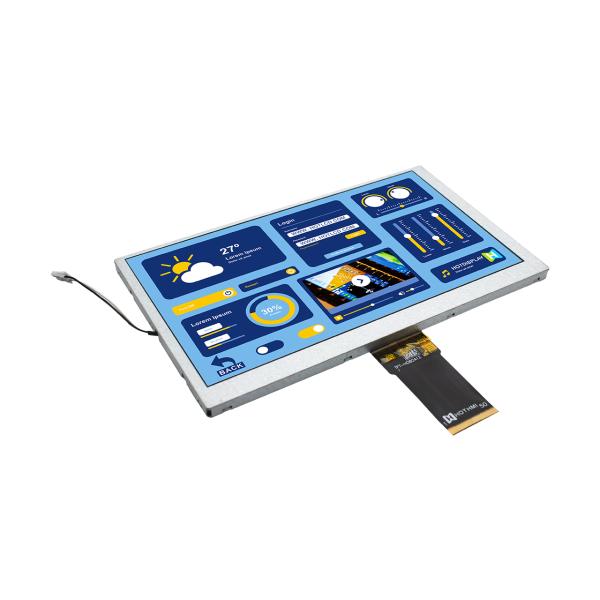

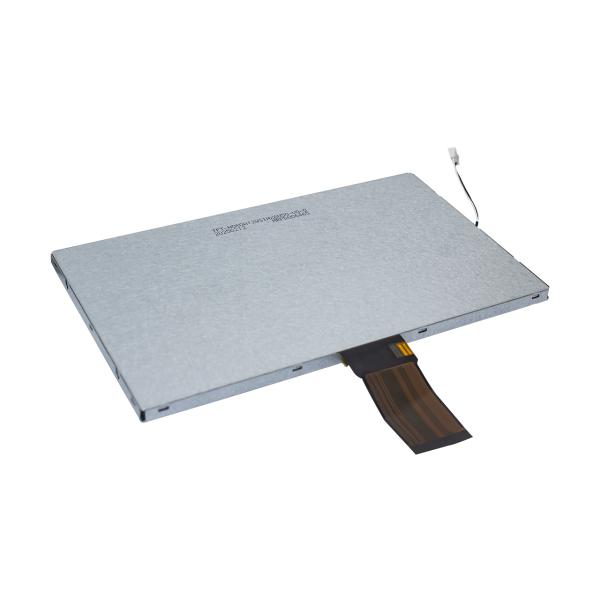

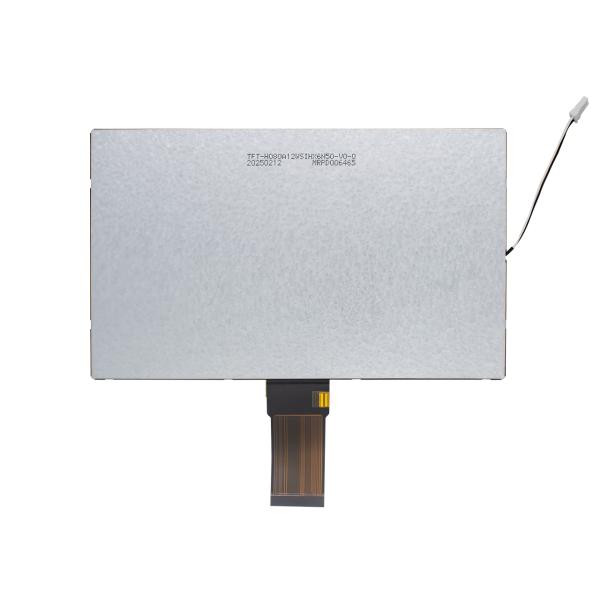

8.0 inch 1024x600 TFT LCD Display with RGB Interface
This 8.0-inch 1024x600 RGB interface TFT LCD display module adopts a high-definition resolution of 1024 (RGB) × 600 pixels, with an effective display area of 176.64mm × 99.36mm. With a 24-bit parallel RGB interface, it can present rich and delicate color performance, with a color gamut coverage of 67% (CIE1931 standard), meeting applications with high requirements for image quality.

This 8.0-inch 1024x600 RGB interface TFT LCD display product supports capacitive touch screen (CTP), with a surface hardness of 6H pencil hardness and a light transmittance of more than 80%, providing a sensitive and accurate touch experience. Its wide viewing angle characteristics (typical values: left/right 75°, top 70°, bottom 75°) ensure clear viewing at different angles, with a typical contrast ratio of 700:1. The module's operating temperature range covers -30℃ to +80℃, and the storage temperature is also -30℃~+80℃. It has passed strict environmental reliability tests (including high temperature and humidity, shock vibration and ESD protection) to adapt to harsh industrial environments.

The backlight system uses a high-efficiency LED solution with a typical brightness of 600cd/m² (with touch screen) and an LED life of up to 30,000 hours at 25℃. This brightness can be smoothly read by viewers in the sun. At the same time, this model's display is IPS full-viewing angle, and users can view the displayed content from different directions and angles.

ITEM PARAMETER DESCRIPTION UNIT
TFT series TFT-H080A12WSIHX6N50

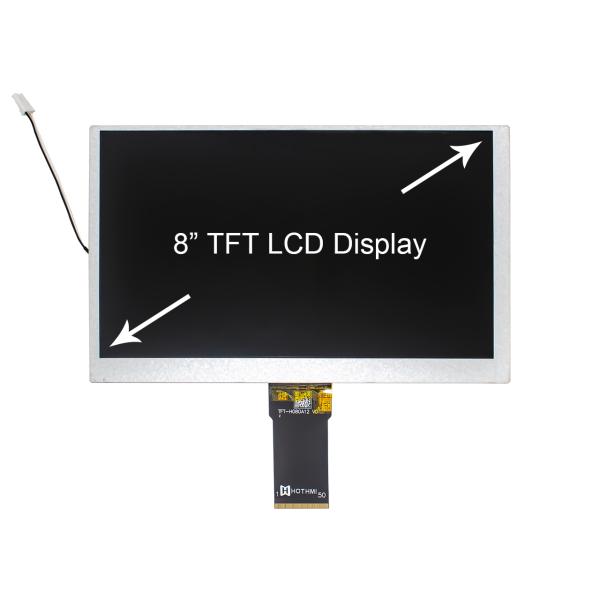

Diagonal size 8.0” Inch
Resolution 1080x600 Dot

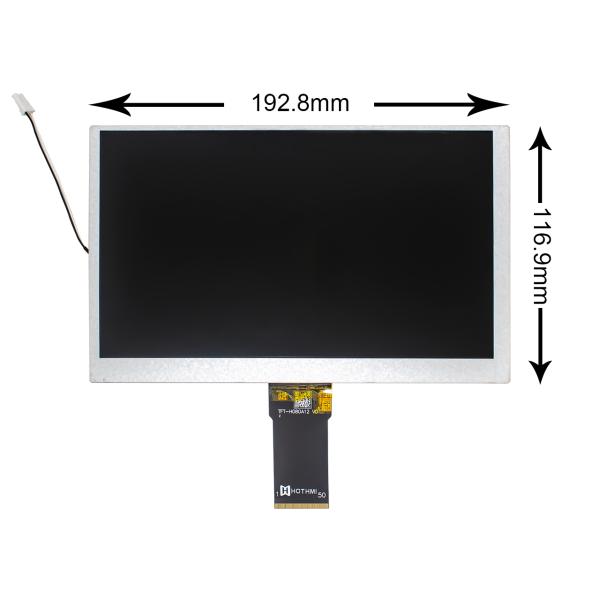

Dimensions 192.80x116.90x6.55 mm
Active area (AA) 176.64x99.36 mm
LCD type 8.0” TFT Module mm
Display viewing angle Full View
Aspect ratio 2:1
Backlight type LED white
TFT driver IC -
Brightness 600cd/m2 cd/m2
Operating temperature -30~80℃ ℃
Storage temperature -30~80℃ ℃
