Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H050A1SVISTKC40
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Display content :
800x1280 Px
Dimensions (mm) :
142.9x228.5x2.67
Field of view window size :
IPS(U80/D80/L80/R80)
Backlight brightness :
500cd/m2
Interface :
LVDS
Operating Temperature: :
-20~70℃
Driver IC :
NV3051F
Description

TFT-H050A1SVISTKC40 | 5.0 inch TFT wide temperature LCD screen | TTL 24 bit (RGB mode) interface | 800x480 dot matrix LCD screen | capacitive touch | wide temperature | readable in sunlight | high brightness | compatible with STM32/RK series

TFT-H050A1SVISTKC40 is a 5.0-inch TFT wide temperature LCD screen that supports TTL interface, with a resolution of 800x480, built-in ST7262<TFT>, GT911<CTP>controller, optional touch screen, high image quality, brightness up to 1500nits, IPS full view angle, supports TTL 24 bit (RGB Mode) interface, 65K/262K true color, FPC connection (optional connector), 3.3V voltage. All materials comply with environmental requirements and RoHS standards. This module is widely used in various instruments, intelligent devices, etc., and is suitable for STM32/RK series microcontroller development platforms.

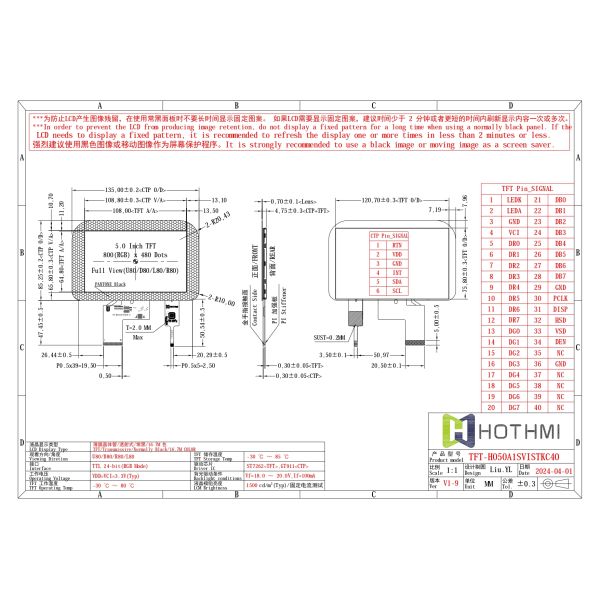

parameter Parameter Description unit
TFT LCD Standard TFT
Diagonal inches 5.0” Inch
resolution 800 × RGB × 480 (TFT) dots
Dimensions 135x85.25x4.75 mm
Size (AA) area 108x64.8 mm
LCD specifications TFT, white, transmissive
Display perspective IPS(U80/D80/L80/R80)
aspect ratio 3:2
Backlight specifications LED, white
TFT driver chip ST7262<TFT>, GT911<CTP>
Touch glass type Capacitive touch (CTP)
surface Anti-glare/glossy
Display brightness 1500 cd/㎡
Operating temperature -30~+80 °C
Storage temperature -30~+85 °C
