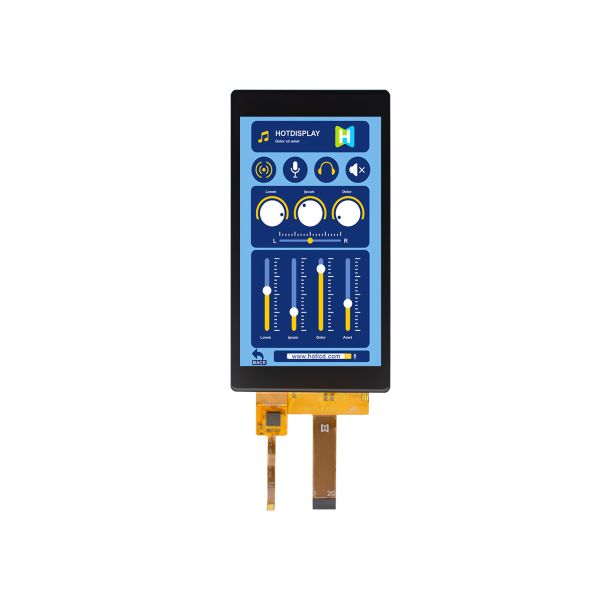

5.0 inch TFT LCD With Capacitive Touch Panel
5.0 inch TFT LCD With Capacitive Touch Panel
5.0 inch TFT LCD With Capacitive Touch Panel
5.0 inch TFT LCD With Capacitive Touch Panel
5.0 inch TFT LCD With Capacitive Touch Panel
5.0 inch TFT LCD With Capacitive Touch Panel
5.0 inch TFT LCD With Capacitive Touch Panel
5.0 inch TFT LCD With Capacitive Touch Panel
5.0 inch TFT LCD With Capacitive Touch Panel
5.0 inch TFT LCD With Capacitive Touch Panel
5.0 inch TFT LCD With Capacitive Touch Panel
5.0 inch TFT LCD With Capacitive Touch Panel
Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H050A11FWIST5C20-V0-3
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Display content :
480x854 Px
Dimensions (mm) :
68.5x133.0x4.2
Field of view window size :
IPS(U80/D80/L80/R80)
Backlight brightness :
500cd/m2
Interface :
MIPI
Operating Temperature: :
-20~70℃
Driver IC :
ST7701S
Description

TFT-H050A11FWIST5C20 | 5.0-inch TFT LCD display with capacitive touch panel | 5-inch optically bonded capacitive touchscreen display

Harness the power and clarity of this 5.0-inch TFT LCD for your next-generation instrumentation and portable electronic devices. While our other models feature higher resolutions, this robust 5.0-inch TFT LCD delivers reliable performance with a 320x480 (HVGA) pixel array, driven by an ST7365P IC and a versatile MCU interface. The display's exceptional 500 cd/m² brightness and IPS full viewing angle technology ensure a clear, vibrant image from any perspective, even in challenging lighting conditions.

Engineered for durability, this 5.0-inch TFT LCD is built to withstand an operating temperature range of -20°C to +70°C and features ESD protection up to 8kV. It coupled with a 40-pin FPC connection and a low 3.3V supply voltage, make it an ideal, space-saving solution. For projects demanding a proven and resilient display, this specific 5.0-inch TFT LCD offers outstanding value and performance. Discover the ideal blend of durability and visual quality with this versatile 5.0-inch TFT LCD.

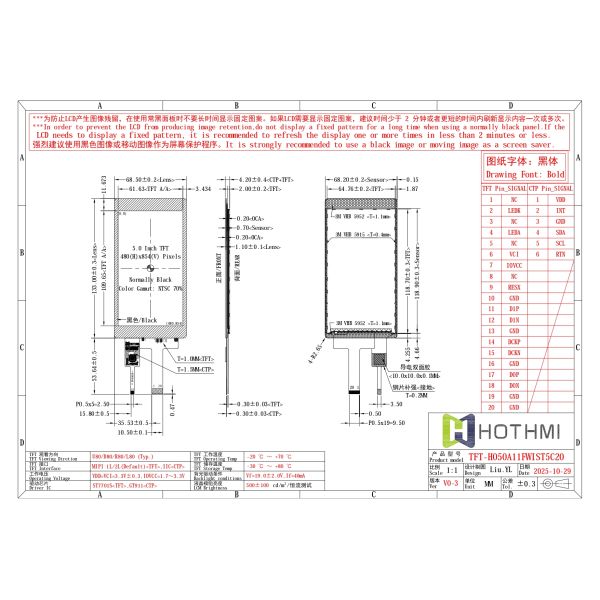

ITEM PARAMETER DESCRIPTION UNIT
TFT series TFT-H050A11FWIST5C20
Diagonal size 5.0” Inch
Resolution 480x854 Dot
Dimensions 68.5x133.0x4.2 mm
Active area (AA) 61.63x109.65 mm
LCD type 5.0” TFT Module mm
Display viewing angle Full View
Aspect ratio 1:2
Backlight type LED white
TFT driver IC ST7701S
Brightness 500cd/m2 cd/m2
Operating temperature -20~70℃ ℃
Storage temperature -30~80℃ ℃
