Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H028A17QVTST2N37
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Product Type :
TFT Module
Display content :
240x320 dots
Dimensions (mm) :
50.00(H) x 69.20(V) x 2.30(D)
Backlight type or brightness :
250cd/m2
Interface :
8080 MCU8-Bit
Driver chip model :
ST7789V
Description

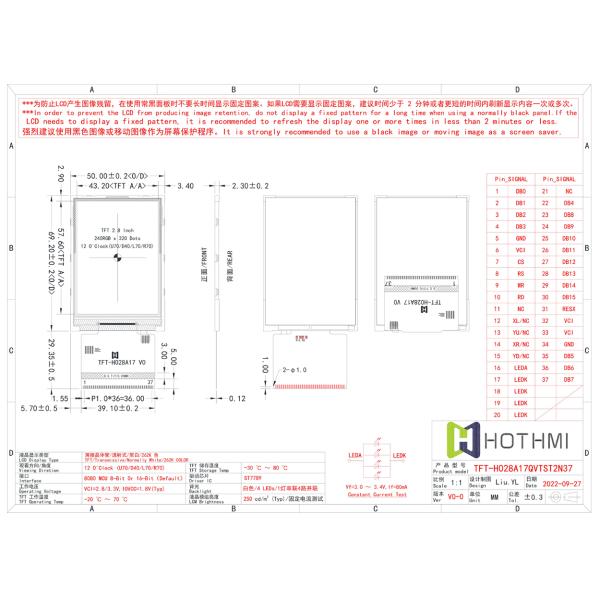

2.8 Inch 240x320 Dots MCU TFT LCD Display IC ST7789/TFT-H028A17QVTST2N37

Product parameters
Field of view window size (mm) - 2.8 inch
Display size (mm) - 2.8 inch
Effective Dimensions mm - 43.20(H) x 57.60(V)
Product Application - Outdoor Instrumentation
Viewing angle - 12H viewing angle
Connection method PIN number - 37PIN
Working temperature - -20~70℃
Supply voltage - 3.3V

ITEM PARAMETER DESCRIPTION UNIT
TFT series TFT-H028A17QVTST2N37
Diagonal size 2.8” Inch
Resolution 240X320 Dot
Dimensions 50.0*69.2*2.3 mm
Active area (AA) 43.2*57.6 mm
LCD type TFT LCD Display mm
Display viewing angle U70/D40/R70/L70
Aspect ratio 3:4
Backlight type LED white
TFT driver IC ST7789
Brightness 250 cd/m2
Operating temperature -20~70℃ ℃
Storage temperature -30~80℃ ℃

Search keyword: ili9341 tft display, tft 2.8", 2.8 tft lcd, 2.8" tft lcd, 2.8 inch tft lcd, tft lcd 2.8, 2.8 tft display, 2.8" tft display, 2.8 inch tft display, tft display 2.8, tft display 2.8"

Low Cost 2.8 inch TFT LCD Display With MCU Interface

Low Cost 2.8 inch TFT LCD Display With MCU InterfaceLow Cost 2.8 inch TFT LCD Display With MCU InterfaceLow Cost 2.8 inch TFT LCD Display With MCU InterfaceLow Cost 2.8 inch TFT LCD Display With MCU Interface

Low Cost 2.8 inch TFT LCD Display With MCU Interface

TFT-H028A17.pdf
