11.6 Inch IPS 1920x1080 Wide Temperature TFT Display eDP interface
11.6 Inch IPS 1920x1080 Wide Temperature TFT Display eDP interface
11.6 Inch IPS 1920x1080 Wide Temperature TFT Display eDP interface
11.6 Inch IPS 1920x1080 Wide Temperature TFT Display eDP interface
11.6 Inch IPS 1920x1080 Wide Temperature TFT Display eDP interface
11.6 Inch IPS 1920x1080 Wide Temperature TFT Display eDP interface
11.6 Inch IPS 1920x1080 Wide Temperature TFT Display eDP interface
11.6 Inch IPS 1920x1080 Wide Temperature TFT Display eDP interface
Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H116D01FHIWZKN30
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Display content :
1920x1080 dots
Dimensions (mm) :
267.72x164.42
Field of view window size :
Full View
Backlight brightness :
1000cd/m2
driver chip :
TBD
Interface :
EDP 2-Lane
Operating Temperature: :
-20°C~70 °C
Description

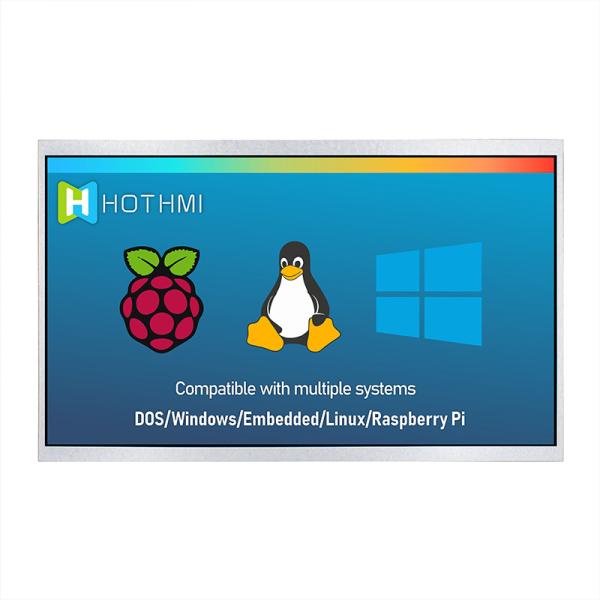

11.6 Inch IPS 1920x1080 Wide Temperature TFT Display Sunlight Readable

TFT-H116D01FHIWZKN30 | 11.6" IPS TFT LCD Display | TFT LCD Display Manufacturer | 1920x1080 HD resolution | -20℃~70℃ | For industrial computer | Interface EDP 2-Lane | Wide Temperature | Sunlight Readable

Product Description: The TFT-H116D01FHIWZKN30 is a high-performance 11.6-inch IPS TFT LCD display designed for industrial computers, catering to the demands of various harsh environmental conditions. Its outstanding features make it an ideal choice for industrial applications.

Key Features:

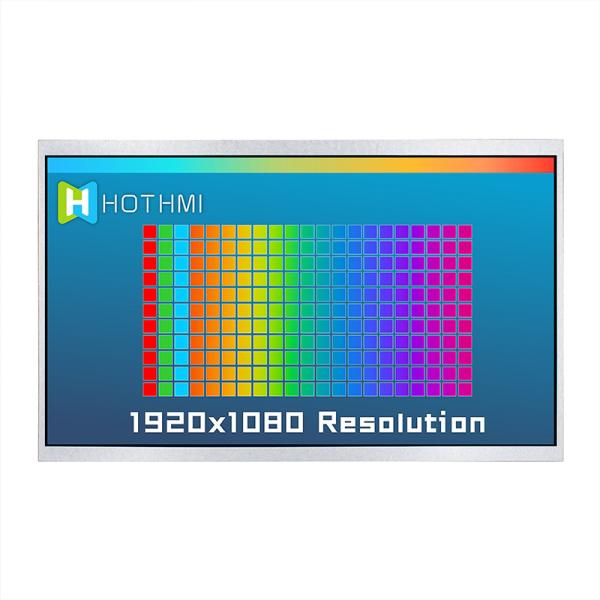

  1. High Resolution: Supports a 1920x1080 high-definition resolution, delivering excellent image quality and clarity suitable for a range of applications.

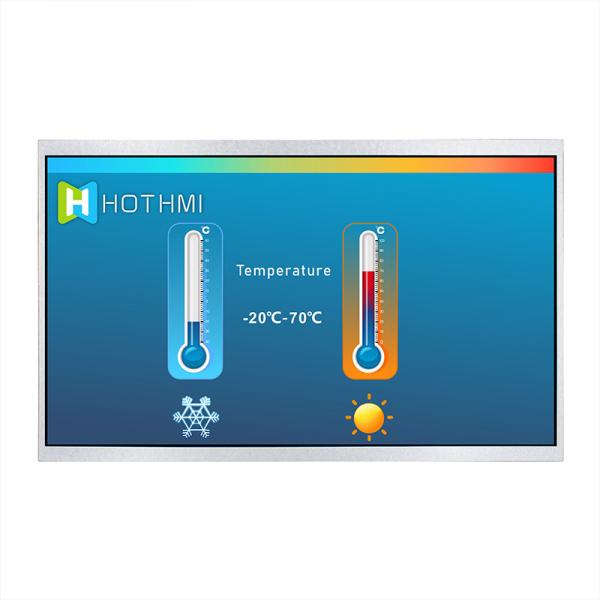

  2. Wide Temperature Range: Impressive operating temperature range from -20℃ to 70℃ ensures stable and reliable performance in extreme weather conditions.

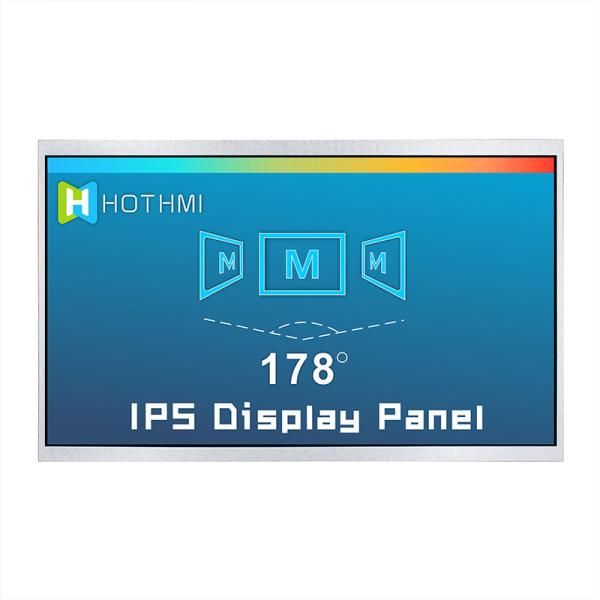

  3. IPS Panel Technology: Utilizes IPS panel technology, offering wide viewing angles and color accuracy for exceptional visibility from different angles.

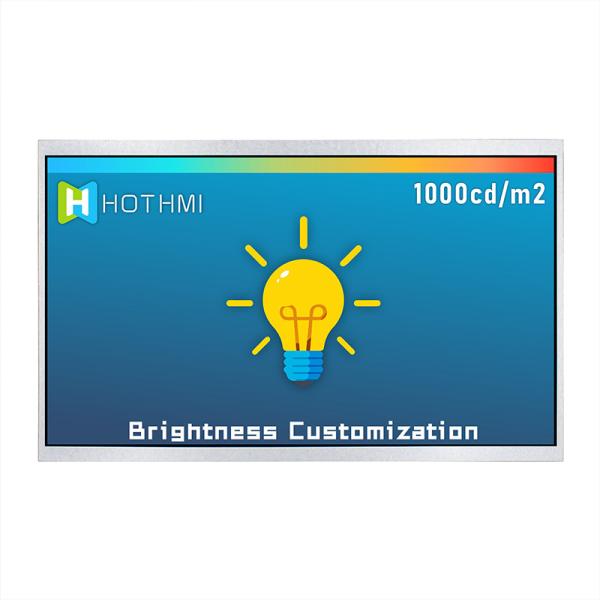

  4. Sunlight Readability: High brightness design ensures clear visibility even in direct sunlight, providing outstanding readability for outdoor and sunlight-exposed applications.

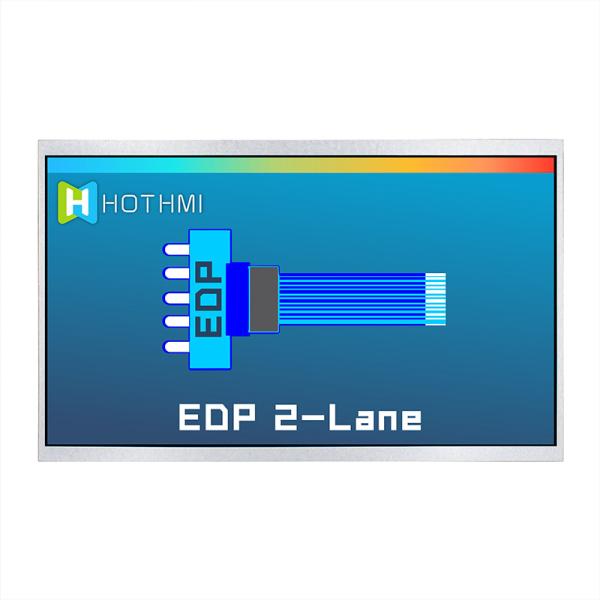

  5. Flexible Interface: Supports EDP 2-Lane interface, offering versatile connectivity options for various industrial computers and control systems.

The TFT-H116D01FHIWZKN30 finds wide applications in industrial automation, outdoor displays, traffic control, medical equipment, and military applications, renowned for its exceptional performance and durability. This display is a reliable industrial-grade solution capable of operating steadily in a variety of harsh environments and ensuring easy readability of screen content under varying lighting conditions.


General Feature

project Parameter Description unit
TFT series Standard TFT module

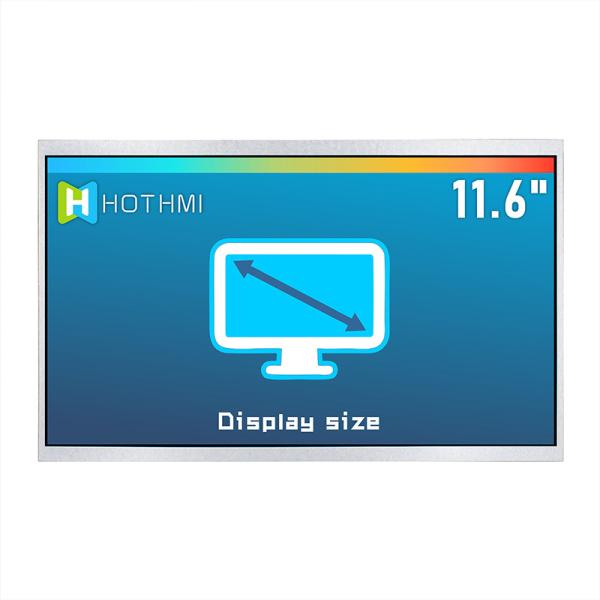

Diagonal size 11.6 " Inch
Resolution 1920 x RGB x 1080 (TFT) dots
Dimensions 267.72x164.42x6.15 mm
Effective area (AA) 256.32x144.18 mm
LCD type Horizontal TFT module
Display perspective 85/85/85/85 (IPS)
Aspect ratio 1.1:2
Backlight type LED, white

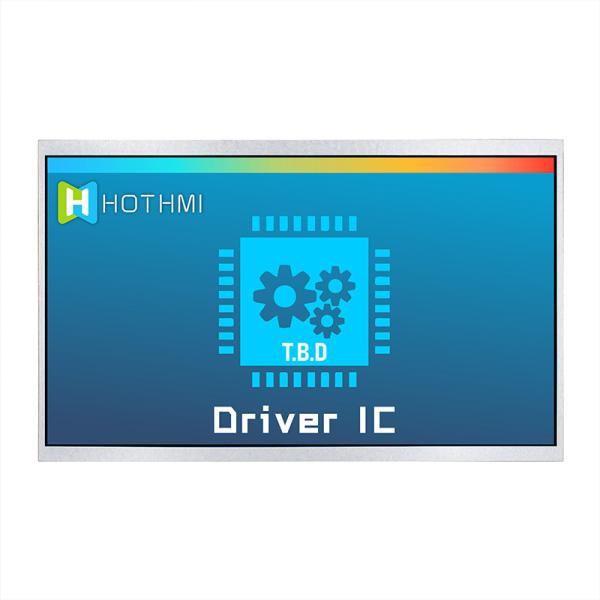

TFT driver IC T.B.D
Touch panel nothing
Surface Bright surface
Brightness one thousand cd/㎡
Operating temperature -20~+70 °C
Storage temperature -30~+80 °C

Search keyword: tft 11.6, tft 11.6", 11.6 tft lcd, 11.6" tft 11.6, 11.6 inch tft lcd, tft lcd 11.6, 11.6 tft display, 11.6" tft display, 11.6 inch tft display, tft display 11.6, tft display 11.6", 11.6 lcd module

11.6 Inch IPS 1920x1080 Wide Temperature TFT Display eDP interface
11.6 Inch IPS 1920x1080 Wide Temperature TFT Display eDP interface11.6 Inch IPS 1920x1080 Wide Temperature TFT Display eDP interface11.6 Inch IPS 1920x1080 Wide Temperature TFT Display eDP interface11.6 Inch IPS 1920x1080 Wide Temperature TFT Display eDP interface11.6 Inch IPS 1920x1080 Wide Temperature TFT Display eDP interface11.6 Inch IPS 1920x1080 Wide Temperature TFT Display eDP interface11.6 Inch IPS 1920x1080 Wide Temperature TFT Display eDP interface11.6 Inch IPS 1920x1080 Wide Temperature TFT Display eDP interface11.6 Inch IPS 1920x1080 Wide Temperature TFT Display eDP interface11.6 Inch IPS 1920x1080 Wide Temperature TFT Display eDP interface


11.6 Inch IPS 1920x1080 Wide Temperature TFT Display eDP interface
TFT-H116D01FHIWZKN30_V0-0.pdf
