Specifications
Supply Ability :
300PCS/MONTH
material :
stainless steel, PU
Model Number :
JYK-B703
Height adjustment (up/down) :
700-1000mm
MOQ :
1
Delivery Time :
2-4weeks
Payment Terms :
L/C,D/A,D/P,T/T,
leg support :
2pcs
Leg plate (up/down) :
0/90 degree
Price :
1750USD-2200USD
backrest :
0-45degree
Brand Name :
JYK
Certification :
ISO13485
Place of Origin :
CHINA
Packaging Details :
carton
Description

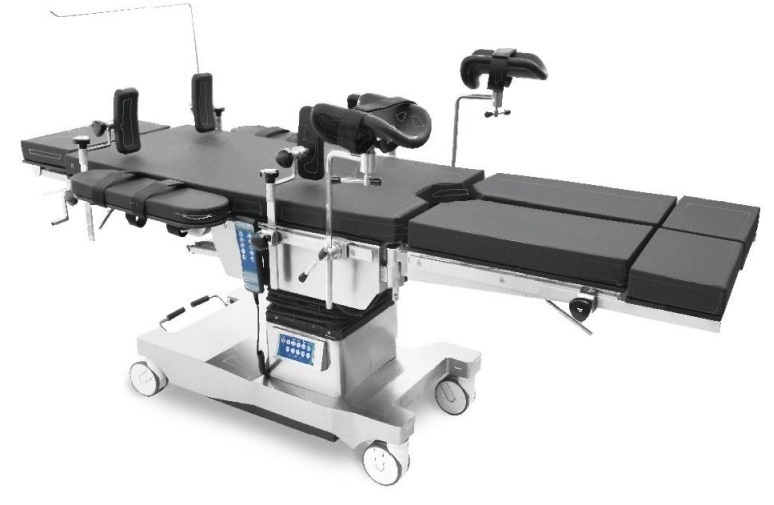

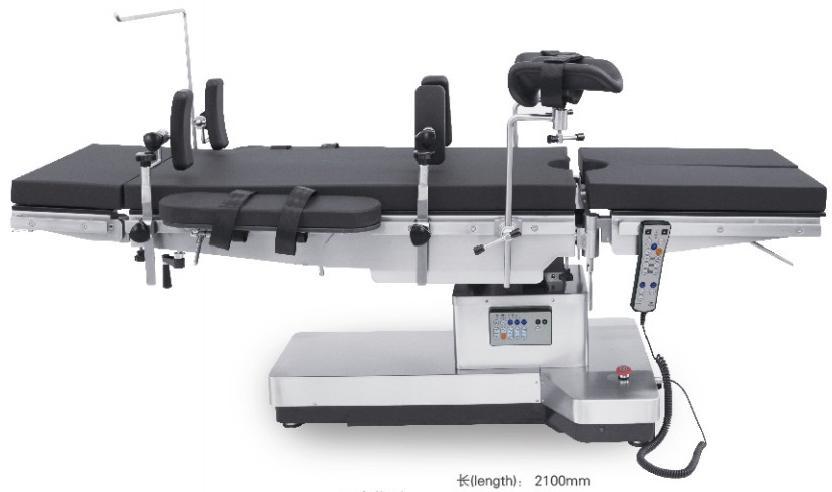

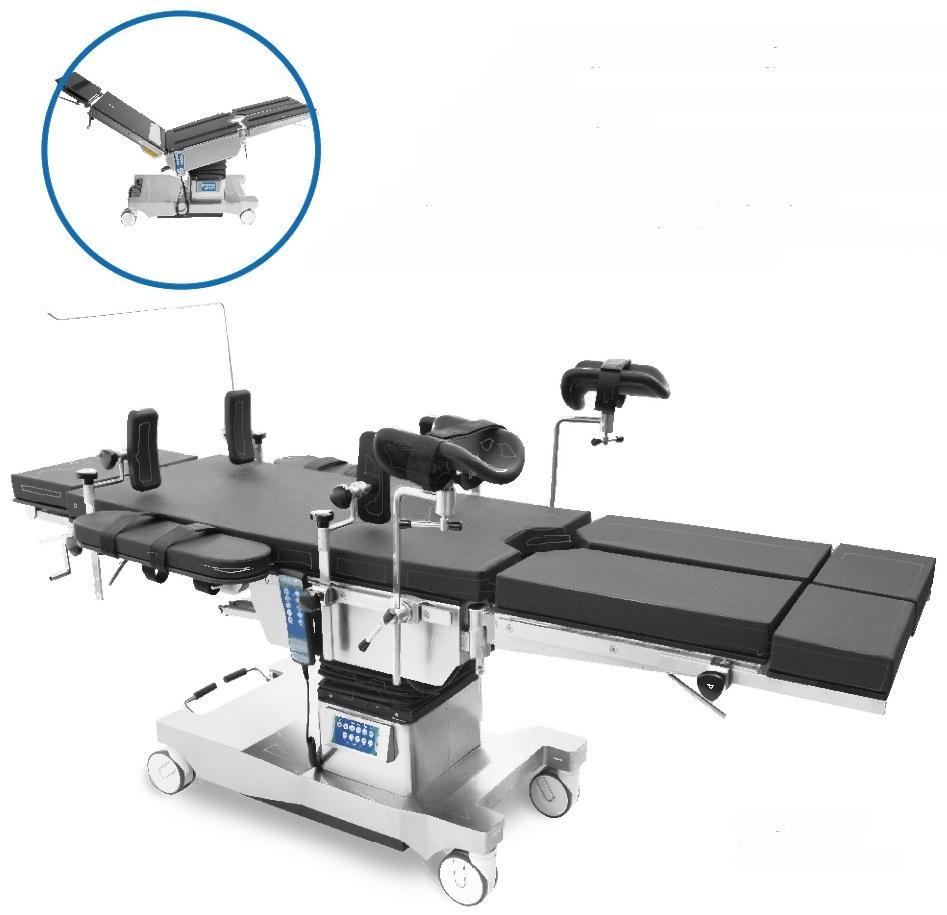

Adjustable Electric Medical Operation Table OT Surgical table With Kidney Leg Support Backrest
Product Overview

Electric operation table for surgery JYK-B703. This surgical table is designed for various medical procedures including chest,abdomen ,ophthalmology,obstetrics,and urology,etc

  • The board can shift longitudinally and it can be X-rayed with C-ARM even to take photos

  • All posture adjustment,including thetable height adjustment,forward and backward and left and right titling are all controlled by keys operation and fueled by the electro-push rod device.The folding of the back section and the leg board is motivated by the force of the spring and gravity.

  • The manipulator used with 24V DC is easy to operate,safe and reliable

  • The leg board is dismantable.It is manual rotation and could be outreached with the force from the spring and gravity,convenient for urology surgery.

Technical Specifications
Length/Width 2100mm/550mm
Height Adjustment (Up/Down) 700mm/1000mm
Trendelenburg/Reverse Trendelenburg 25°/25°
Lateral Tilt 20°/20°
Longitudinal Movement 400mm
Head Rest (Up/Down) 45°/90°
Back Section 0°/45°
Leg Plate (Up/Down) 0°/90°
Kidney Bridge Elevation 100mm, swiveling of leg plate: 90°
Standard Accessories
  • 1 screen
  • 2 shoulder rests
  • 2 arm supports
  • 2 waist supports
  • 2 knee crutches
  • 2 leg boards
Packaging Information
  • Package: 1 piece per box
  • Measurements: 1220×740×1040mm
  • Gross/Net Weight: 280kg/225kg
