Adjustable Electric Medical Operation Table
Adjustable Electric Medical Operation Table
Adjustable Electric Medical Operation Table
Adjustable Electric Medical Operation Table
Adjustable Electric Medical Operation Table
Adjustable Electric Medical Operation Table
Specifications
Supply Ability :
300PCS/MONTH
Model Number :
JYK-B704
leg support :
2pcs
Price :
3800USD-4500USD
Certification :
ISO13485
backrest :
0-45degree
MOQ :
1
Delivery Time :
2-4weeks
Leg plate (up/down) :
0/90 degree
Payment Terms :
L/C,D/A,D/P,T/T
Brand Name :
JYK
material :
stainless steel, PU
Place of Origin :
CHINA
Height adjustment (up/down) :
750-1000mm
Packaging Details :
carton
Description

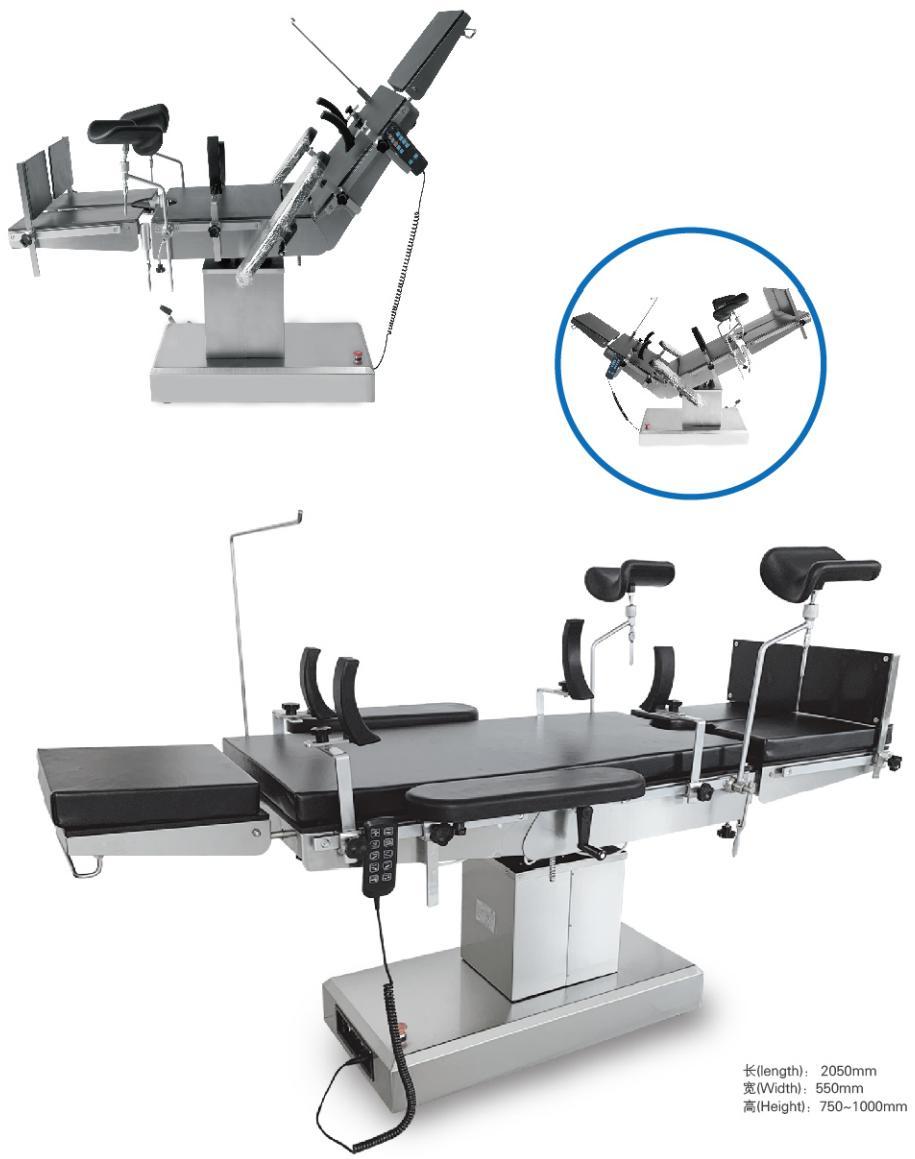

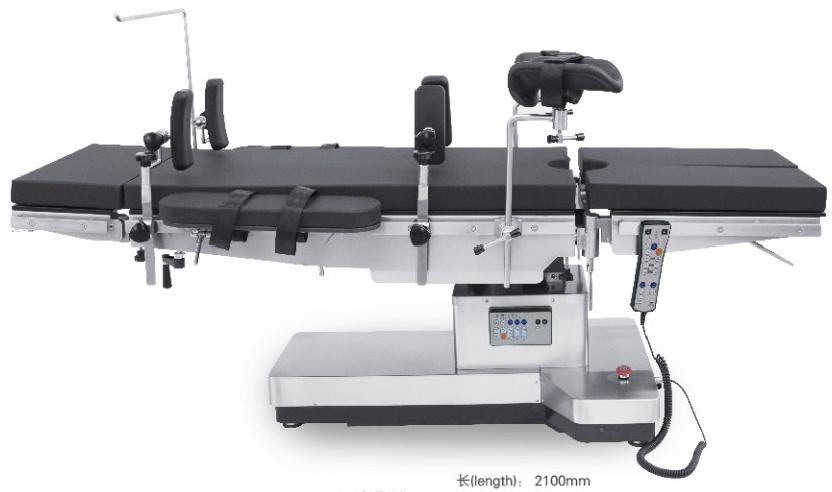

Adjustable Electric Medical Operation Table
Product Overview
Electric operation table for surgery JYK-B704. This product is used for the surgeries of head,neck,chest abdomen,perineum,limbs,obstetrics,ophthalmology,otolaryngology and orthopedics,etc.The controlled by electric hydraulic system easy and flexible.The floor is made of syntheticboard with good-quality and can be used with C-ARM.


Key Features

  • The tabletop is made up of high-strength and transparent materials with a ultra-long vertical translation distance, which can facilitate the medical examination by cooperation with C-shaped arm machine

  • All posture adjustment, including the table height adjustment, forward and backward, and tabletop vertical translation are all controlled by keys operation and fueled by the electro-hydraulic cylinder.
  • The hand-holding manipulator adopts 24V direct current voltage to make sure its simple and safe operation, and it will automatically lock if there is no any operation for 30 seconds.
  • the oil pump, hand -holding manipulator, and oil cylinder are all brand products to ensure its low noise, stable performance, and simple operation.
  • With the lock nut loosened , the leg board can be extended out by manual rotation and the gas spring structure enables it to be folded at any angle with simple operation. The leg board is detachable, which is especially convenient for urological operations.
  • This product is equipped with the interchange function between the headboard and the leg board.
  • The equipment is designed with the one-key horizontal resetting and one-key buckling (V) and reverse buckling (A) functions.
  • All motions electrically powered for flexibility, safety, and reliability
Technical Specifications
Length/Width 2050mm/550mm
Height Adjustment (Up/Down) 750mm/1000mm
Trendelenburg/Reverse Trendelenburg 25°/25°
Lateral Tilt 20°/20°
Longitudinal Movement 400mm
Head Rest (Up/Down) 45°/90°
Back Section 0°/45°
Leg Plate (Up/Down) 0°/90°
Kidney Bridge Elevation 100mm, swiveling of leg plate: 90°
Standard Accessories
  • 1 screen
  • 2 shoulder rests
  • 2 arm supports
  • 2 waist supports
  • 2 knee crutches
  • 2 leg boards
Packaging Information
  • Package: 1 piece per box
  • Measurements: 1220×740×1040mm
  • Gross/Net Weight: 280kg/225kg
Product Images

Adjustable Electric Medical Operation Table
Adjustable Electric Medical Operation Table
Adjustable Electric Medical Operation Table
