Portable Hydraulic Hose Crimper with 980T Crimping Force, 14-167mm Crimping Range, and 31.5Mpa System Pressure
Portable Hydraulic Hose Crimper with 980T Crimping Force, 14-167mm Crimping Range, and 31.5Mpa System Pressure
Portable Hydraulic Hose Crimper with 980T Crimping Force, 14-167mm Crimping Range, and 31.5Mpa System Pressure
Portable Hydraulic Hose Crimper with 980T Crimping Force, 14-167mm Crimping Range, and 31.5Mpa System Pressure
Portable Hydraulic Hose Crimper with 980T Crimping Force, 14-167mm Crimping Range, and 31.5Mpa System Pressure
Portable Hydraulic Hose Crimper with 980T Crimping Force, 14-167mm Crimping Range, and 31.5Mpa System Pressure
Specifications
Brand Name :
MENSION
Model Number :
MS-E180
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Price :
Contact Us
Crimping Range :
14 - 167mm
Hose Size :
1/4 - 4inch
Die Sets :
18
Color :
Grey and Blue
Max. Opening :
45mm
Crimping Force :
980T
Product Name :
E180 Portable Hydraulic Hose Crimper
Application :
Production
System Pressure :
31.5Mpa
Power :
7.5KW
Size :
800*650*880mm
Weight :
510Kg
Description
Portable Hydraulic Hose Crimper High Pressure Hose Crimping Machine Hose Swage

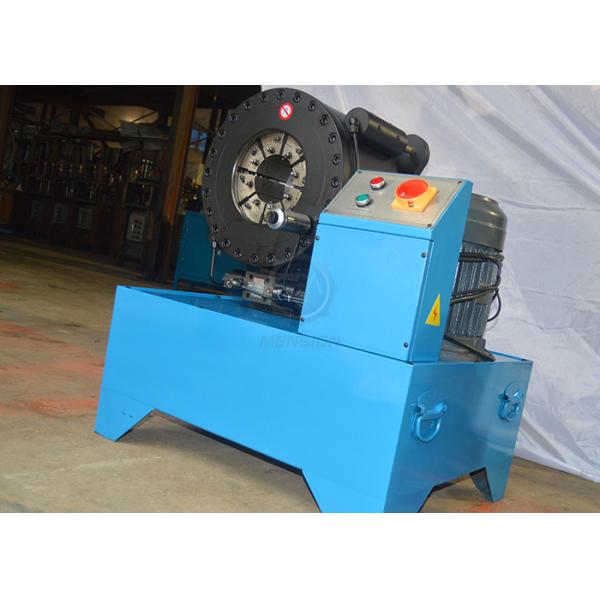

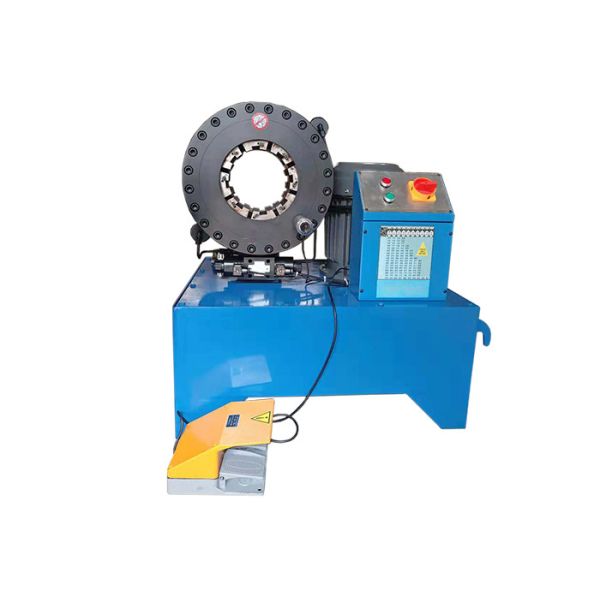

4 INCH BIG HYDRAULIC HOSE CRIMPER MS-E180

MS-E180 hydraulic hose crimping machine is famous for its large crimping range. It is the ideal choice for large hydraulic or industrial hose assembly making.
MAIN FEATURES
  • Big foot pedal switch, more convenient
  • Aluminium shell copper wire motor, more stable
  • Finn power micrometer, more accurate
TECHNICAL DATA
Model MS-E180 Portable Hydraulic Hose Crimper
Crimping Range 14 - 167 (mm)
Crimping Force 980 (T)
Hose Size 1/4 - 4 (inch)
Max. Opening 45 (mm)
Die Sets 18
Die Set Type 32 180
System Pressure 31.5 (Mpa)
Accuracy 0.01 (mm)
Control MS
Standard Voltage 380 (V)
Motor Power 7.5 (KW)
Length 800 (mm)
Width 650 (mm)
Height 880 (mm)
Weight 510 (KG)
Portable Hydraulic Hose Crimper with 980T Crimping Force, 14-167mm Crimping Range, and 31.5Mpa System Pressure
E180 CRIMPER DIE SETS
Die No. Crimping Range Length
6* 6 - 8mm 55
8* 8 - 10mm 55
10* 10 - 12mm 55
12* 12 - 15mm 55
15 15 - 18mm 55
18 18 - 21mm 55
21 21 - 24mm 55
24 24 - 27mm 55
27 27 - 33mm 55
33 33 - 39mm 75
39 39 - 45mm 75
45 45-51mm 90
51 51 - 57mm 90
57 57 - 66mm 100
66 66 - 73mm 110
73 73 - 90mm 110
90 90 - 96mm 120
96 96 - 102mm 120
102 102 - 108mm 120
108 108 - 114mm 120
114 114 - 123mm 120
123 123 - 136mm 120
NOTE
  • * for non standard die sets
  • Customized die sets are available
  • Special voltage 110V, 208V, 240V, 415V are available
Portable Hydraulic Hose Crimper with 980T Crimping Force, 14-167mm Crimping Range, and 31.5Mpa System Pressure Portable Hydraulic Hose Crimper with 980T Crimping Force, 14-167mm Crimping Range, and 31.5Mpa System Pressure Portable Hydraulic Hose Crimper with 980T Crimping Force, 14-167mm Crimping Range, and 31.5Mpa System Pressure
