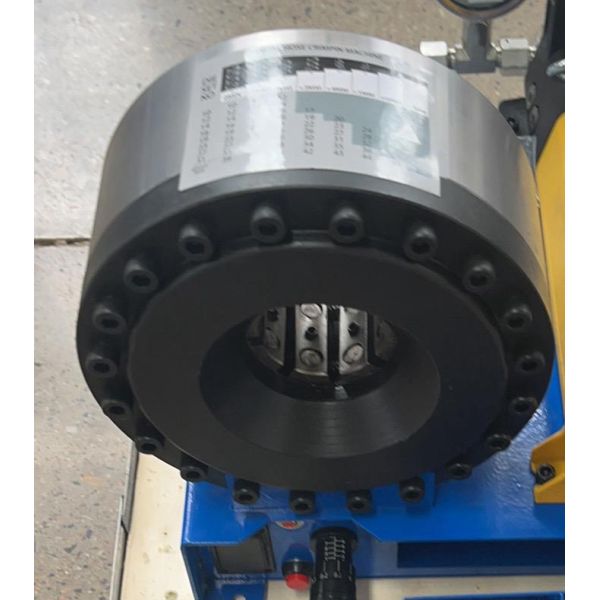

1 Inch Portable Hydraulic Hose Crimper with Manual Operate and 150T Crimping Force for High Pressure Hose
1 Inch Portable Hydraulic Hose Crimper with Manual Operate and 150T Crimping Force for High Pressure Hose
1 Inch Portable Hydraulic Hose Crimper with Manual Operate and 150T Crimping Force for High Pressure Hose
1 Inch Portable Hydraulic Hose Crimper with Manual Operate and 150T Crimping Force for High Pressure Hose
1 Inch Portable Hydraulic Hose Crimper with Manual Operate and 150T Crimping Force for High Pressure Hose
1 Inch Portable Hydraulic Hose Crimper with Manual Operate and 150T Crimping Force for High Pressure Hose
Specifications
Brand Name :
MENSION
Model Number :
MS-P16
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range :
14 - 45mm
Hose Size :
1/4 - 1inch
Die Sets :
7
Color :
Blue
Max. Opening :
20mm
Crimping Force :
150T
Product Name :
P16 Hose Crimping Machine
Application :
Workshop
System Pressure :
31.5Mpa
Power :
Hand Pump
Size :
400*320*300mm
Weight :
32Kg
Description
1 Inch Portable Hydraulic Hose Crimper Finn Power P16HP Manual Hose Crimping Tool
1 Inch Portable Hydraulic Hose Crimper P16 Hose Crimping Machine
1 INCH PORTABLE HOSE CRIMPING MACHINE MS-P16

DESCRIPTION
MS-P16 hose crimper is suitable for hydraulic hose with high pressure from 1/4" to 1" crimping. This compact crimping machine features a hand pump for manual operation, eliminating the need for electricity supply. It is the ideal choice for hose pressing applications where power supply is unavailable. With its lightweight design, it is easy to transport and operate.
ADVANTAGES
  • High-quality manual pump from reputable manufacturer
  • Consistent crimping without size variations
  • High accuracy diameter control
  • Features renowned brand hydraulic pump
TECHNICAL DATA
Model P16 Portable Hose Crimper
Crimping Range 14 - 47 (mm)
Crimping Force 150 (T)
Hose Size 1/4 - 1 (inch)
Max. Opening 20 (mm)
Die Sets 7
Die Set Type P16
System Pressure 31.5 (Mpa)
Accuracy 0.01 (mm)
Control MS
Standard Voltage Manual Pump
Motor Power Manual Pump
Length 400 (mm)
Width 320 (mm)
Height 300 (mm)
Weight 32 (KG)
1 Inch Portable Hydraulic Hose Crimper with Manual Operate and 150T Crimping Force for High Pressure Hose
P16 HOSE CRIMPER DIE SETS
Die No. Crimping Range Length
6* 6 - 8 mm 55
8* 8 - 10 mm 55
10* 10 - 12 mm 55
12* 12 - 14 mm 55
14 14 - 16 mm 55
16 16 - 19 mm 55
19 19 - 23 mm 55
23 23 - 27 mm 55
27 27 - 31 mm 55
31 31 - 35 mm 65
35 35 - 41 mm 65
NOTE
  • * indicates non-standard die sets
  • Customized die sets are available upon request
  • Maximum opening refers to the stroke between die sets when fully closed and fully opened
OPTIONAL ACCESSORIES
  • Quick Change Tool
  • Quick Change Die Set Rack
  • UC Control System
P16 CRIMPING MACHINE APPLICATIONS
1 Inch Portable Hydraulic Hose Crimper with Manual Operate and 150T Crimping Force for High Pressure Hose

1 Inch Portable Hydraulic Hose Crimper with Manual Operate and 150T Crimping Force for High Pressure Hose
1 Inch Portable Hydraulic Hose Crimper with Manual Operate and 150T Crimping Force for High Pressure Hose

1 Inch Portable Hydraulic Hose Crimper with Manual Operate and 150T Crimping Force for High Pressure Hose
