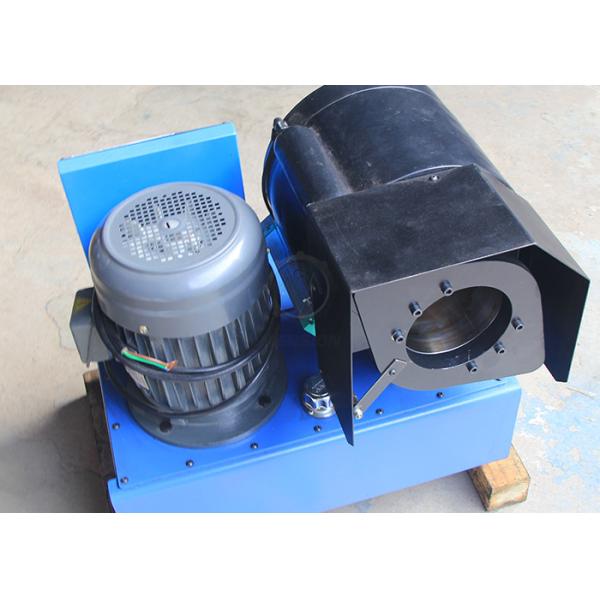

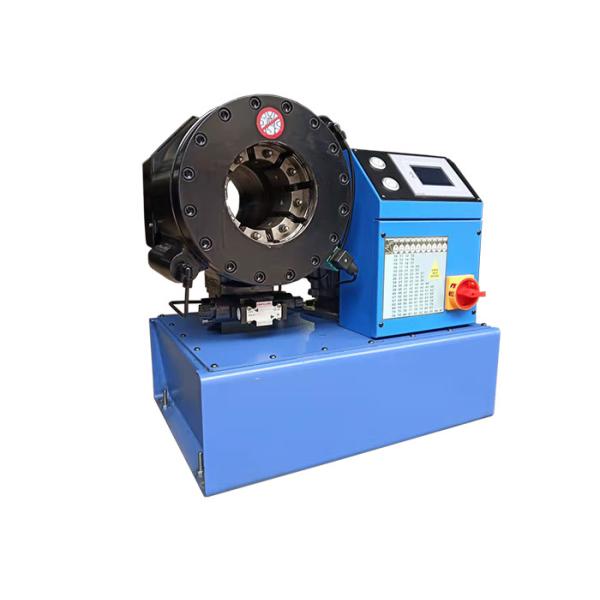

MS-NC130 Portable Hydraulic Hose Crimper with 650T Crimping Force, 14-87mm Range, and 31.5Mpa Pressure
MS-NC130 Portable Hydraulic Hose Crimper with 650T Crimping Force, 14-87mm Range, and 31.5Mpa Pressure
MS-NC130 Portable Hydraulic Hose Crimper with 650T Crimping Force, 14-87mm Range, and 31.5Mpa Pressure
MS-NC130 Portable Hydraulic Hose Crimper with 650T Crimping Force, 14-87mm Range, and 31.5Mpa Pressure
MS-NC130 Portable Hydraulic Hose Crimper with 650T Crimping Force, 14-87mm Range, and 31.5Mpa Pressure
MS-NC130 Portable Hydraulic Hose Crimper with 650T Crimping Force, 14-87mm Range, and 31.5Mpa Pressure
Specifications
Brand Name :
MENSION
Model Number :
MS-NC130
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Price :
Contact Us
Crimping Range :
14 - 87mm
Hose Size :
1/4 - 2.5inch
Die Sets :
13
Color :
Blue
Max. Opening :
31mm
Crimping Force :
650T
Product Name :
NC130 Portable Hydraulic Hose Crimper
Application :
Workshop
System Pressure :
31.5Mpa
Power :
3.75KW
Size :
650*550*650mm
Weight :
240Kg
Description
Hydraulic Fitting Crimping Tool Portable Hydraulic Hose Crimping Machine
PORTABLE HYDRAULIC HOSE CRIMPER MS-NC130
DESCRIPTION

MS-NC130 portable hydraulic hose crimping machine is renowned for its intelligent CNC control systems and extensive crimping range. With advanced spare parts, it has become one of the best-selling models in its category.

ADVANTAGES
  • Advanced PLC control for high stability
  • Quick operation speed for large production capacity and high efficiency
  • Unique cylinder manufacturing technology for extended service life
  • High-quality, renowned spare parts
TECHNICAL DATA
Model MS-NC130 Portable Hydraulic Hose Crimper
Crimping Range 14 - 87 (mm)
Crimping Force 650 (T)
Hose Size 1/4 - 2.5 (inch)
Max. Opening 31 (mm)
Die Sets 13
Die Set Type P32
System Pressure 31.5 (Mpa)
Accuracy 0.01 (mm)
Control UC
Standard Voltage 220 (V) / 380 (V)
Motor Power 3.75 (KW)
Length 650 (mm)
Width 550 (mm)
Height 650 (mm)
Weight 240 (KG)
MS-NC130 Portable Hydraulic Hose Crimper with 650T Crimping Force, 14-87mm Range, and 31.5Mpa Pressure
P32 CRIMPER DIE SETS
Die No. Crimping Range Length
6* 6 - 8mm 55
8* 8 - 10mm 55
10* 10 - 12mm 55
12* 12 - 14mm 55
14 14 - 16mm 55
16 16 - 19mm 55
19 19 - 22mm 55
22 22 - 26mm 70
26 26 - 30mm 70
30 30 - 34mm 70
34 34 - 39mm 75
39 39 - 45mm 75
45 45 - 51mm 90
51 51 - 57mm 90
57 57 - 63mm 100
63 63 - 69mm 110
69 69 - 78mm 110
NOTE
  • * indicates non-standard die sets
  • Customized die sets are available
  • Special voltages 110V, 208V, 240V, 415V are available
MS-NC130 Portable Hydraulic Hose Crimper with 650T Crimping Force, 14-87mm Range, and 31.5Mpa Pressure MS-NC130 Portable Hydraulic Hose Crimper with 650T Crimping Force, 14-87mm Range, and 31.5Mpa Pressure MS-NC130 Portable Hydraulic Hose Crimper with 650T Crimping Force, 14-87mm Range, and 31.5Mpa Pressure
MS-NC130 Portable Hydraulic Hose Crimper with 650T Crimping Force, 14-87mm Range, and 31.5Mpa Pressure
