High Pressure Hydraulic Hose Crimping Tool with 380T Crimping Force 14 Die Sets and 31.5Mpa System Pressure
High Pressure Hydraulic Hose Crimping Tool with 380T Crimping Force 14 Die Sets and 31.5Mpa System Pressure
High Pressure Hydraulic Hose Crimping Tool with 380T Crimping Force 14 Die Sets and 31.5Mpa System Pressure
High Pressure Hydraulic Hose Crimping Tool with 380T Crimping Force 14 Die Sets and 31.5Mpa System Pressure
High Pressure Hydraulic Hose Crimping Tool with 380T Crimping Force 14 Die Sets and 31.5Mpa System Pressure
High Pressure Hydraulic Hose Crimping Tool with 380T Crimping Force 14 Die Sets and 31.5Mpa System Pressure
Specifications
Brand Name :
MENSION
Model Number :
MS-P150
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Price :
Contact Us
Crimping Range :
14 - 87mm
Hose Size :
1/4 - 2 1/2inch
Die Sets :
14
Color :
Grey and Orange
Max. Opening :
61mm
Crimping Force :
380T
Product Name :
P150 Hose Pressing Machine
Application :
Workshop
System Pressure :
31.5Mpa
Power :
3.75KW
Size :
720*970*1600mm
Weight :
1020Kg
Description
High Pressure Hydraulic Hose Crimping Tool Finn Power Swager Hydraulic Fitting Crimper

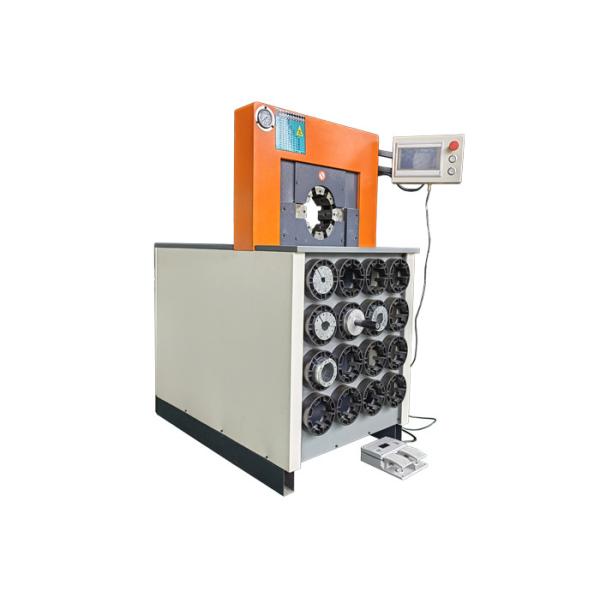

FLEXIBLE HOSE PRESSING MACHINE MS-P150
DESCRIPTION

The MS-P150 hydraulic crimping hose machine is renowned for its large crimping size and substantial feed capacity. It features a super thin crimping head, allowing even bent fittings to be fed in easily.

ADVANTAGES
  • Die sets with high hardness
  • Advanced CNC control system with high stability
  • Quick change for die sets, ensuring high efficiency
TECHNICAL DATA
Model MS-P150 Hose Crimper Machine
Crimping Range 14 - 87 (mm)
Crimping Force 380 (T)
Hose Size 1/4 - 2 1/2 (inch)
Max. Opening 61 (mm)
Die Sets 14
Die Set Type P150
System Pressure 31.5 (Mpa)
Accuracy 0.01 (mm)
Control UC
Standard Voltage 220 (V) / 380 (V)
Motor Power 3.75 (KW)
Length 720 (mm)
Width 970 (mm)
Height 1600 (mm)
Weight 1020 (KG)
High Pressure Hydraulic Hose Crimping Tool with 380T Crimping Force 14 Die Sets and 31.5Mpa System Pressure
P150 HOSE CRIMPER DIE SETS
Die No. Crimping Range Length
6* 6 - 8mm 55
8* 8 - 10mm 55
10* 10 - 12mm 55
12* 12 - 14mm 55
14 14 - 16mm 55
16 16 - 19mm 55
19 19 - 22mm 55
22 22 - 26mm 70
26 26 - 30mm 70
30 30 - 34mm 70
34 34 - 39mm 75
39 39 - 45mm 75
45 45 - 51mm 90
51 51 - 57mm 90
57 57 - 63mm 100
63 63 - 69mm 110
69 69 - 74mm 110
74 74 - 80mm 110
78* 78 - 87mm 110
NOTE
  • * for non standard die sets
  • Customized die sets are available
  • Special voltage 110V, 208V, 240V, 415V are available
High Pressure Hydraulic Hose Crimping Tool with 380T Crimping Force 14 Die Sets and 31.5Mpa System Pressure High Pressure Hydraulic Hose Crimping Tool with 380T Crimping Force 14 Die Sets and 31.5Mpa System Pressure High Pressure Hydraulic Hose Crimping Tool with 380T Crimping Force 14 Die Sets and 31.5Mpa System Pressure
