Industrial Hydraulic Hose Crimping Machine with 780T Crimping Force CNC Control and 14 Die Sets
Industrial Hydraulic Hose Crimping Machine with 780T Crimping Force CNC Control and 14 Die Sets
Industrial Hydraulic Hose Crimping Machine with 780T Crimping Force CNC Control and 14 Die Sets
Industrial Hydraulic Hose Crimping Machine with 780T Crimping Force CNC Control and 14 Die Sets
Industrial Hydraulic Hose Crimping Machine with 780T Crimping Force CNC Control and 14 Die Sets
Industrial Hydraulic Hose Crimping Machine with 780T Crimping Force CNC Control and 14 Die Sets
Specifications
Brand Name :
MENSION
Model Number :
MS-P150
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range :
14 - 87mm
Hose Size :
1/4 - 3inch
Die Sets :
14
Max. Opening :
61mm
Model :
P150 Hose Crimper
Crimping Force :
780T
System Pressure :
31.5Mpa
Power :
4KW
Size :
720*970*1600mm
Weight :
1020Kg
Description
Hydraulic Hose Crimping Machine Industrial Hose Crimper Crimp Hydraulic Fittings
Product Overview
LARGE HYDRAULIC HOSE CRIMPING MACHINE 3 INCH - P150
Description

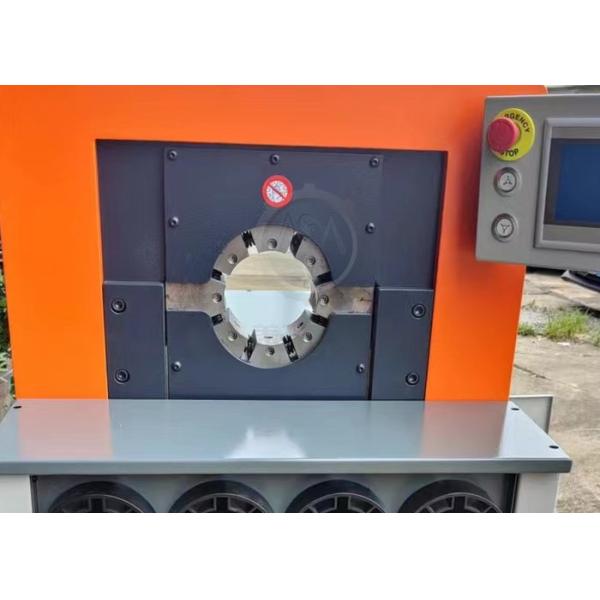

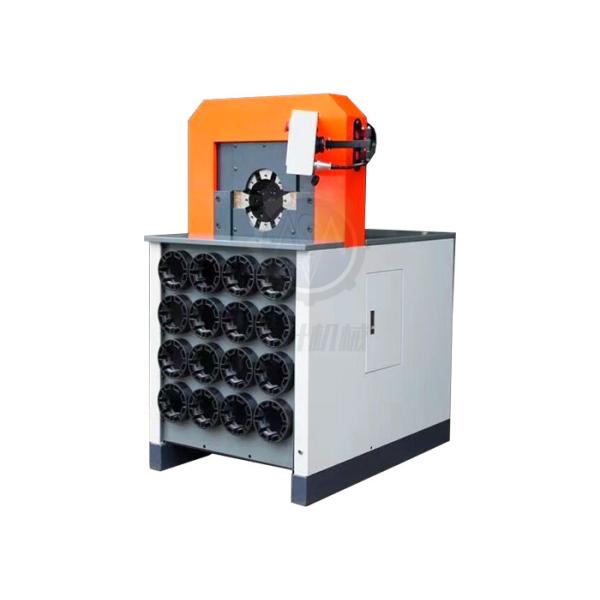

MS-P150 pipe pressing machine is designed for hydraulic hose crimping and fabricating from 1/4 inch to 3 inch. The crimping head is thinner compared to traditional designs, allowing 90-degree fittings to be easily inserted and removed during crimping operations.
This hydraulic hose crimper features dies with vertical movement for easy positioning. Die sets can be quickly changed and installed using the quick-change tool from the die sets rack, significantly improving crimping production efficiency.
The pressing hose machine incorporates CNC control for intelligent and smart operation.
Advantages
  • High quality spare parts enable stable performance for hose crimping
  • Emergency stop device ensures safe hydraulic hose crimping work
  • Big and double use foot pedal provides convenient operation
  • Low noise level for more comfortable working environment
Technical Data
Model MS-P150 Hydraulic Hose Crimping Machine
Crimping Range 14 - 87 (mm)
Crimping Force 780 (T)
Hose Size 1/4 - 3 (inch) 6 Spiral
Max. Opening 61 (mm)
Die Sets 14
Die Set Type P150
System Pressure 31.5 (Mpa)
Accuracy 0.01 (mm)
Control UC
Standard Voltage 380 (V) Three Phase
Motor Power 3.75 (KW)
Length 720 (mm)
Width 970 (mm)
Height 1600 (mm)
Weight 1020 (KG)
Industrial Hydraulic Hose Crimping Machine with 780T Crimping Force CNC Control and 14 Die Sets
P150 Hydraulic Hose Crimper Die Sets
Die No. Crimping Range Length
6 * 6 ... 8mm 55mm
8 * 8 ... 10mm 55mm
10 * 10 ... 12mm 55mm
12 * 12 ... 14mm 55mm
14 14 ... 16mm 55mm
16 16 ... 19mm 55mm
19 19 ... 22mm 55mm
22 22 ... 26mm 70mm
26 26 ... 30mm 70mm
30 30 ... 34mm 70mm
34 34 ... 39mm 75mm
39 39 ... 45mm 75mm
45 45 ... 51mm 90mm
51 51 ... 57mm 90mm
57 57 ... 63mm 100mm
63 63 ... 69mm 110mm
69 69 ... 74mm 110mm
74 74 ... 80mm 110mm
78 * 78 ... 87mm 110mm
  • " * " indicates non-standard mold
  • Crimping range is based on standard mold
  • Customized die sets with different shapes and sizes are available
  • Customized voltage options: 110V, 208V, 220V, 240V, 415V are available
Industrial Hydraulic Hose Crimping Machine with 780T Crimping Force CNC Control and 14 Die Sets
Applications of P150 Hose Pressing Machine
P150 hose crimper machine is suitable for various applications including hydraulic hose fitting assembly fabricating, industrial pipe and cable pressing, wires and ropes swaging, steel tube crimping, automotive components jointing, and cable transfer work in marine environments.
