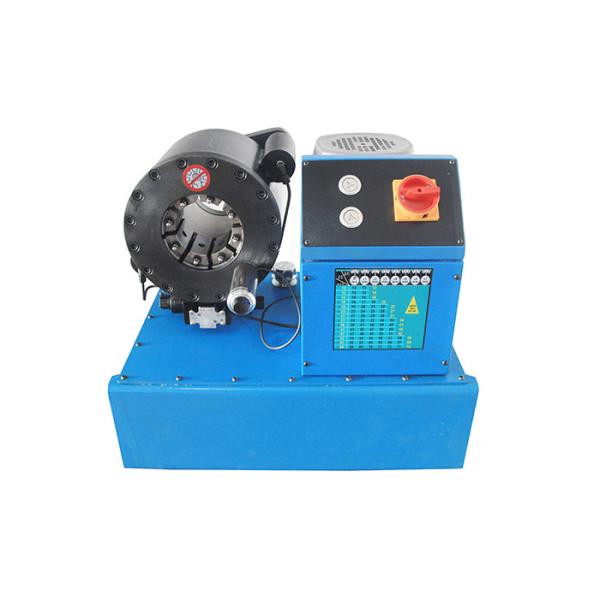

Low Pressure Hose Crimping Machine with 640T Crimping Force 31.5Mpa System Pressure for 2 Inch Hydraulic Hose Press Machine
Low Pressure Hose Crimping Machine with 640T Crimping Force 31.5Mpa System Pressure for 2 Inch Hydraulic Hose Press Machine
Low Pressure Hose Crimping Machine with 640T Crimping Force 31.5Mpa System Pressure for 2 Inch Hydraulic Hose Press Machine
Low Pressure Hose Crimping Machine with 640T Crimping Force 31.5Mpa System Pressure for 2 Inch Hydraulic Hose Press Machine
Low Pressure Hose Crimping Machine with 640T Crimping Force 31.5Mpa System Pressure for 2 Inch Hydraulic Hose Press Machine
Low Pressure Hose Crimping Machine with 640T Crimping Force 31.5Mpa System Pressure for 2 Inch Hydraulic Hose Press Machine
Specifications
Brand Name :
MENSION
Model Number :
MS-E130
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Price :
Contact Us
Crimping Range :
14 - 87mm
Hose Size :
2inch 4SH
Die Sets :
10
Color :
Blue
Max. Opening :
25mm
Crimping Force :
640T
Product Name :
Hose Pressing Machine
Application :
Workshop
System Pressure :
31.5Mpa
Power :
3KW
Size :
630*450*560mm
Weight :
190Kg
Description
Low Pressure Hose Crimping Machine Hydraulic Hose Press Machine Finn Power P32 Manual
EXCAVATOR HOSE PRESSING MACHINE MS-E130

DESCRIPTION

MS-E130 is a high-power hose crimping machine capable of crimping hoses up to 2 inches with four stainless steel braids. It features high accuracy with FINN POWER micrometer technology.

ADVANTAGES
  • Compact structure with powerful force output
  • World-advanced oil channel design
  • User-friendly operating panel
  • Double bevel die base construction
  • High hardness cylinder and crimping unit
TECHNICAL DATA
Model MS-130 Hose Pressing Machine
Crimping Range 14 - 87 (mm)
Crimping Force 640 (T)
Hose Size 1/4 - 2 (inch)
Max. Opening 25 (mm)
Die Sets 10
Die Set Type 130
System Pressure 31.5 (Mpa)
Accuracy 0.01 (mm)
Control MS
Standard Voltage 220 (V) / 380 (V)
Motor Power 3 (KW)
Length 630 (mm)
Width 450 (mm)
Height 560 (mm)
Weight 190 (KG)
Low Pressure Hose Crimping Machine with 640T Crimping Force 31.5Mpa System Pressure for 2 Inch Hydraulic Hose Press Machine
130 SERIES CRIMPER DIE SETS
Die No. Crimping Range Length
6* 6 - 8mm 35
8* 8 - 10mm 35
10* 10 - 12mm 35
12* 12 - 14mm 35
14 14 - 16mm 60
16 16 - 20mm 60
20 20 - 22mm 60
22 22 - 26mm 60
26 26 - 30mm 70
30 30 - 38mm 70
38 38 - 46mm 70
46 46 - 54mm 80
54 54 - 64mm 80
64 64 - 69mm 80
69* 69 - 76mm 100
NOTES
  • Customized die sets are available
  • Special voltage options: 110V, 208V, 240V, 415V are available
  • * indicates non-standard die sets
OPTIONAL ACCESSORIES
  • Quick Change Tool
  • Quick Change Die Set Rack
  • UC control
  • Foot Pedal
  • Pressure Gauge
  • Normal Rack
DOUBLE CONICAL MASTER DIE, HIGH FORCE AND ACCURACY
Low Pressure Hose Crimping Machine with 640T Crimping Force 31.5Mpa System Pressure for 2 Inch Hydraulic Hose Press Machine
SPECIAL DIE SETS AVAILABLE WITH HARDNESS 58-63HRC
Low Pressure Hose Crimping Machine with 640T Crimping Force 31.5Mpa System Pressure for 2 Inch Hydraulic Hose Press Machine
DINGZING OIL SEAL KITS, ANTI WEAR AND LONG SERVING LIFE
Low Pressure Hose Crimping Machine with 640T Crimping Force 31.5Mpa System Pressure for 2 Inch Hydraulic Hose Press Machine

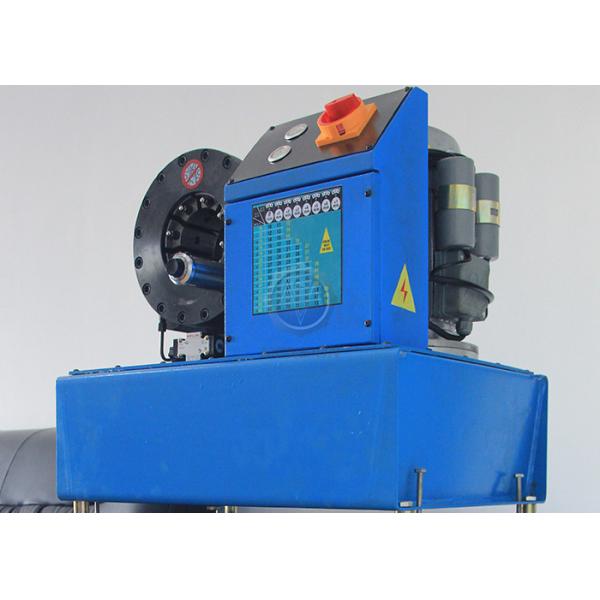

CONVENIENT OPERATE PANEL
Low Pressure Hose Crimping Machine with 640T Crimping Force 31.5Mpa System Pressure for 2 Inch Hydraulic Hose Press Machine
