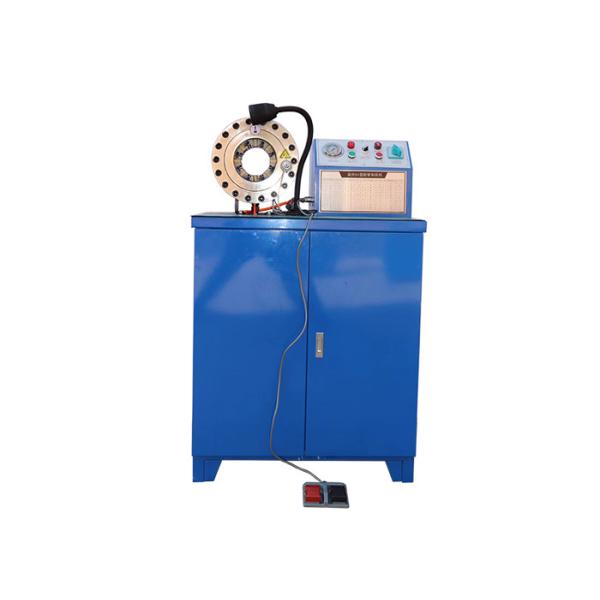

Used Hydraulic Hose Crimping Machine with 500T Crimping Force, 31.5Mpa System Pressure, and 3KW Power
Used Hydraulic Hose Crimping Machine with 500T Crimping Force, 31.5Mpa System Pressure, and 3KW Power
Used Hydraulic Hose Crimping Machine with 500T Crimping Force, 31.5Mpa System Pressure, and 3KW Power
Used Hydraulic Hose Crimping Machine with 500T Crimping Force, 31.5Mpa System Pressure, and 3KW Power
Used Hydraulic Hose Crimping Machine with 500T Crimping Force, 31.5Mpa System Pressure, and 3KW Power
Used Hydraulic Hose Crimping Machine with 500T Crimping Force, 31.5Mpa System Pressure, and 3KW Power
Specifications
Crimping Force :
500T
Color :
Blue
Max. Opening :
30mm
System Pressure :
31.5Mpa
Hose Size :
1/4 - 2inch
Die Sets :
10
Application :
Workshop
Crimping Range :
14 - 87mm
Power :
3KW
Size :
800*640*1300mm
Product Name :
51L Used Hydraulic Hose Crimping Machine
Weight :
320Kg
Brand Name :
MENSION
Model Number :
MS-51L
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Payment Terms :
L/C,D/A,D/P,T/T,,
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Price :
Contact Us
Description
Used Hydraulic Hose Crimping Machine For Sale Finn Power Swage Hose End Crimper
HYDRAULIC HOSE CRIMPING MACHINE MS-51L USED
DESCRIPTION

MS-51L hose crimping machine features ergonomic design with comfortable operator height, reducing fatigue during crimping work. The machine supports both semi-automatic and fully automatic crimping operations.

MAIN ADVANTAGES
  • Simple and compact structure for easy installation and maintenance
  • Foot pedal and button crimping for enhanced convenience
  • Automatic crimping mode significantly improves efficiency
  • Large piston pump delivers high force with low noise operation
TECHNICAL DATA
Model MS-51L Used Hydraulic Hose Crimping Machine
Crimping Range 14 - 87 (mm)
Crimping Force 500 (T)
Hose Size 1/4 - 2 (inch)
Max. Opening 30 (mm)
Die Sets 10
Die Set Type 51
System Pressure 31.5 (Mpa)
Accuracy 0.05 (mm)
Control MS
Standard Voltage 220 (V) / 380 (V)
Motor Power 3 (KW)
Length 800 (mm)
Width 640 (mm)
Height 1300 (mm)
Weight 320 (KG)
Used Hydraulic Hose Crimping Machine with 500T Crimping Force, 31.5Mpa System Pressure, and 3KW Power
51 HOSE CRIMPER DIE SETS
Die No. Crimping Range Length
6* 6 - 8mm 35
8* 8 - 10mm 35
10* 10 - 12mm 35
12* 12 - 15mm 35
15 15 - 19mm 60
19 19 - 23mm 60
23 23 - 26mm 60
26 26 - 31mm 60
31 31 - 36mm 70
36 36 - 41mm 70
41 41 - 47mm 70
47 47 - 55mm 80
55 55 - 63mm 80
63 63 - 69mm 80
69* 69 - 76mm 100
NOTE
  • * indicates non-standard die sets
  • Customized die sets are available
  • Special voltages 110V, 208V, 240V, 415V are available
OPTIONAL
  • Quick Change Tool
  • UC control
Used Hydraulic Hose Crimping Machine with 500T Crimping Force, 31.5Mpa System Pressure, and 3KW Power Used Hydraulic Hose Crimping Machine with 500T Crimping Force, 31.5Mpa System Pressure, and 3KW Power
