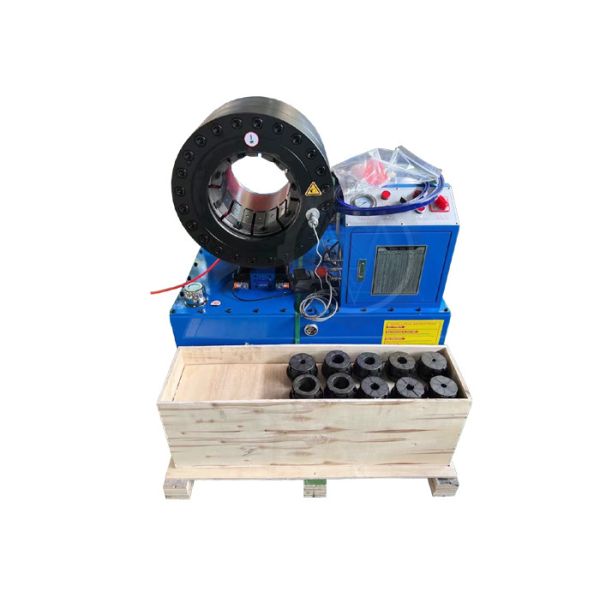

4 Inch Hose Crimping Machine with 1500T Crimping Force and 31.5Mpa System Pressure for Hydraulic Pipe Pressing
4 Inch Hose Crimping Machine with 1500T Crimping Force and 31.5Mpa System Pressure for Hydraulic Pipe Pressing
4 Inch Hose Crimping Machine with 1500T Crimping Force and 31.5Mpa System Pressure for Hydraulic Pipe Pressing
4 Inch Hose Crimping Machine with 1500T Crimping Force and 31.5Mpa System Pressure for Hydraulic Pipe Pressing
4 Inch Hose Crimping Machine with 1500T Crimping Force and 31.5Mpa System Pressure for Hydraulic Pipe Pressing
4 Inch Hose Crimping Machine with 1500T Crimping Force and 31.5Mpa System Pressure for Hydraulic Pipe Pressing
Specifications
Brand Name :
MENSION
Model Number :
MS-S102
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range :
14 - 187mm
Hose Size :
1/4 - 4inch
Die Sets :
16+1
Color :
Blue
Max. Opening :
30mm
Crimping Force :
1500T
Product Name :
S102 AC Hose Crimping Machine
Application :
Production
System Pressure :
31.5Mpa
Power :
3KW
Size :
850*530*980mm
Weight :
500Kg
Description
4 Inch 102mm High Pressure Hose Crimper Hydraulic Pipe Pressing Machine
HYDRAULIC PRESSURE HOSE CRIMPING MACHINE MS - S102

Product Overview

The MS-S102 hydraulic pipe pressing machine is a heavy-duty hose crimper designed for industrial and hydraulic hose assemblies up to 4 inch (102mm) with 6 layers. With adapter dies, it can also crimp smaller hoses down to 1/4 inch size. The crimping size is controlled by a high-precision micrometer for optimal results.

Main Advantages
  • Compatible with hoses from 1/4" to 4"
  • Large pressing force capability
  • Ergonomic design for operator comfort
  • High-quality oil pump system
Technical Specifications
Model MS-S102 Hose Crimping Machine
Crimping Range 14 - 187 (mm)
Crimping Force 1500 (T)
Hose Size 1/4 - 4 (inch) 6 Layers
Max. Opening 30 (mm)
Die Sets 16 + 1
Die Set Type 51 + 102
System Pressure 31.5 (Mpa)
Accuracy 0.05 (mm)
Control MS
Standard Voltage 220 (V) / 380 (V)
Motor Power 4 (KW)
Length 850 (mm)
Width 530 (mm)
Height 980 (mm)
Weight 500 (KG)
4 Inch Hose Crimping Machine with 1500T Crimping Force and 31.5Mpa System Pressure for Hydraulic Pipe Pressing
51 Hose Crimper Die Sets
Die No. Crimping Range Length
6* 6 - 8 mm 35
8* 8 - 10 mm 35
10* 10 - 12 mm 35
12* 12 - 15 mm 35
15 15 - 19 mm 60
19 19 - 23 mm 60
23 23 - 26 mm 60
26 26 - 31 mm 60
31 31 - 36 mm 70
36 36 - 41 mm 70
41 41 - 47 mm 70
47 47 - 55 mm 80
55 55 - 63 mm 80
63 63 - 75 mm 80
75 75 - 87 mm 100
87 87 - 100 mm 120
100 100 - 115 mm 120
115 115 - 130 mm 120
130 130 - 147 mm 120
Important Notes
  • * denotes non-standard die sets
  • Customized die sets are available upon request
  • Special voltage options available: 110V, 208V, 240V, 415V
Optional Accessories
  • Quick Change Tool
  • UC Control System
