Specifications
Brand Name :
MENSION
Model Number :
MS-P150
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Price :
Contact Us
Crimping Range :
14 - 87mm
Hose Size :
1/4 - 2 1/2inch
Die Sets :
14
Color :
Grey and Orange
Max. Opening :
61mm
Crimping Force :
380T
System Pressure :
31.5Mpa
Power :
3.75KW
Size :
720*970*1600mm
Weight :
1020Kg
Description

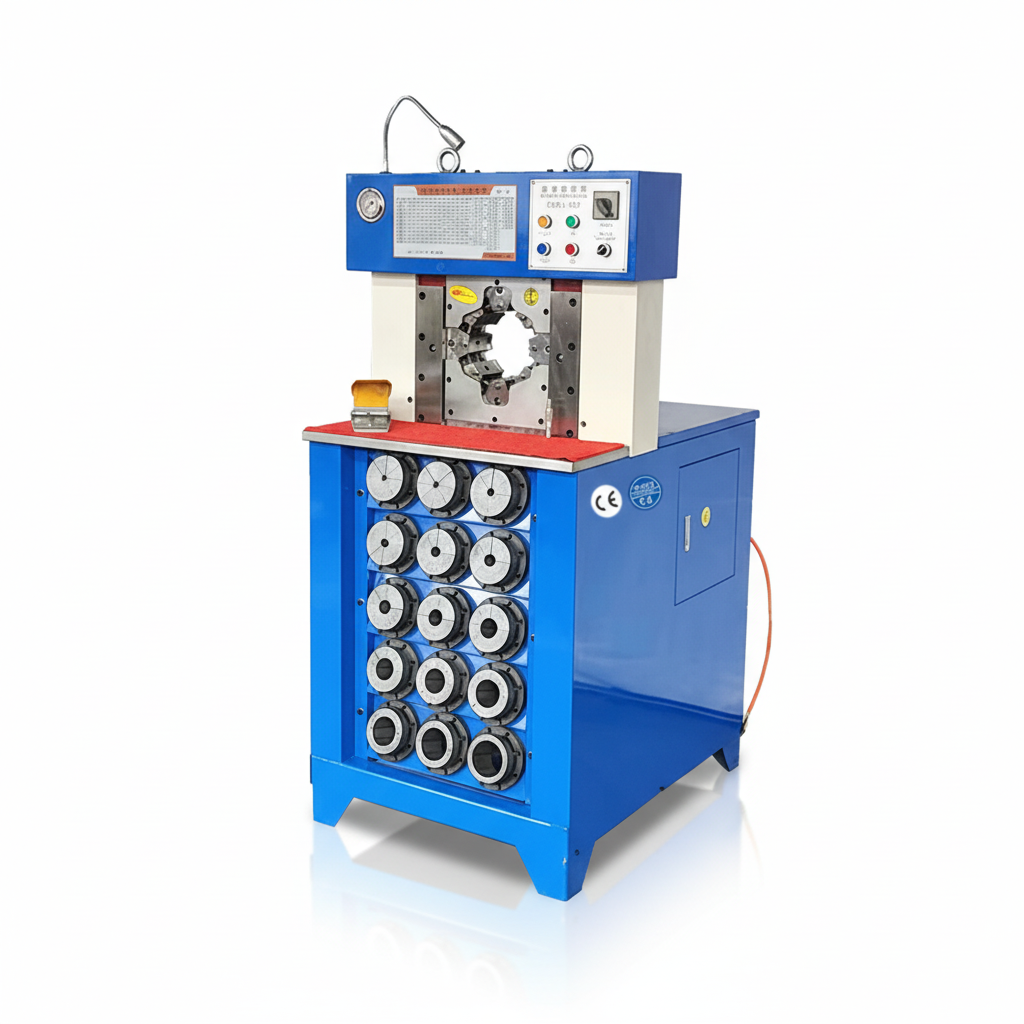

MS-P150 Heavy Duty Hydraulic Hose Crimping Machine
Product Overview
The MS-P150 is an advanced hydraulic hose crimping machine capable of crimping hydraulic hose up to 2½ inches and 2-inch 6SP stainless steel braided hoses. With its super thin crimping head and vertical movement design, it is the ideal choice for elbow fittings and complex crimping applications.
Key Advantages
  • Advanced MS control system for high stability and productivity
  • Quick die installation for easier crimping and time savings
  • Double-use foot pedal design frees both hands for handling large or heavy workpieces
Technical Specifications
Model MS-P150 AC Hose Crimping Machine
Crimping Range 14 - 87 (mm)
Crimping Force 380 (T)
Hose Size 1/4 - 2½ (inch)
Max. Opening 61 (mm)
Die Sets 14
Die Set Type P150
System Pressure 31.5 (Mpa)
Accuracy 0.01 (mm)
Control UC / MS
Standard Voltage 220 (V) / 380 (V)
Motor Power 3.75 (KW)
Length 720 (mm)
Width 970 (mm)
Height 1600 (mm)
Weight 1020 (KG)
2 Inch Hose Press For Sale AC Hose Crimper Hydraulic Hose Fitting Press Machine
P150 Crimper Die Sets
Die No. Crimping Range (mm)
6* 6.0 - 8.0
8* 8.0 - 10.0
10* 10.0 - 12.0
12* 12.0 - 14.0
14 14.0 - 16.0
16 16.0 - 19.0
19 19.0 - 22.0
22 22.0 - 26.0
26 26.0 - 30.0
30 30.0 - 34.0
34 34.0 - 39.0
39 39.0 - 45.0
45 45.0 - 51.0
51 51.0 - 57.0
57 57.0 - 63.0
63 63.0 - 69.0
69 69.0 - 74.0
74 74.0 - 80.0
78* 78.0 - 87.0
* Denotes non-standard mold. Customized die sets are available. Special voltages (110V, 208V, 240V, 415V) are available upon request.
Super Thin Crimping Head
Advanced cylinder technology separates the cylinder from the crimping head, providing a wide working stroke that enables crimping of elbow fittings and irregular tubes with precision.
2 Inch Hose Press For Sale AC Hose Crimper Hydraulic Hose Fitting Press Machine
Comprehensive Die Set Collection
14 die sets covering ranges from 14mm to 74mm, suitable for hoses from 1/4 to 2 inches with six-spiral crimping applications.
2 Inch Hose Press For Sale AC Hose Crimper Hydraulic Hose Fitting Press Machine
Heavy Duty Machine Construction
Built with a large cylinder hydraulic system, this machine is capable of pressing hoses up to 6 spirals for demanding industrial applications.
2 Inch Hose Press For Sale AC Hose Crimper Hydraulic Hose Fitting Press Machine
Ergonomic Foot Pedal Operation
The large double-use foot pedal design frees both of the operator's hands, significantly improving working efficiency and safety.
2 Inch Hose Press For Sale AC Hose Crimper Hydraulic Hose Fitting Press Machine
OEM Services Available
2 Inch Hose Press For Sale AC Hose Crimper Hydraulic Hose Fitting Press Machine
Application Examples
The P150 is specifically designed for large elbow fittings crimping and is widely used in automotive AC hoses, hydraulic oil hoses, air hoses, water pipes, industrial hoses, wires, and cables crimping applications.
2 Inch Hose Press For Sale AC Hose Crimper Hydraulic Hose Fitting Press Machine
