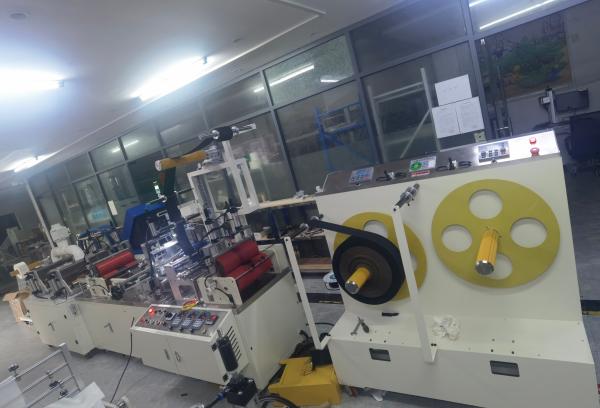

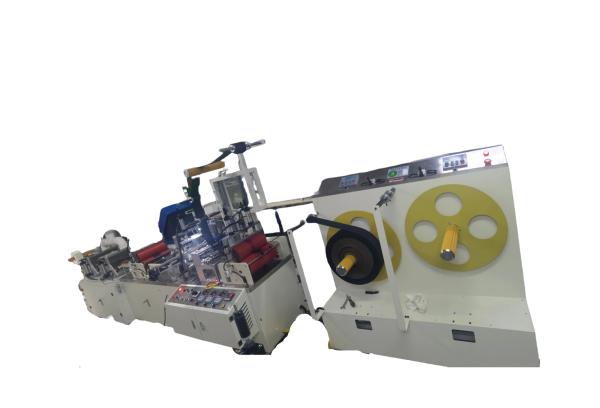

Precision Hot Melt Adhesive Coating Machine 10-50m/Min For Stable Operation
Precision Hot Melt Adhesive Coating Machine 10-50m/Min For Stable Operation
Precision Hot Melt Adhesive Coating Machine 10-50m/Min For Stable Operation
Precision Hot Melt Adhesive Coating Machine 10-50m/Min For Stable Operation
Specifications
Brand Name :
HHD
Place of Origin :
Guangdong Province
MOQ :
1set
Price :
2000–20000USD
Payment Terms :
T/T 50% in advance,50% before shipment
Supply Ability :
150 sets / month
Delivery Time :
Within 20 days after downpayment
Packaging Details :
Export Packaging
Applications :
Apparel, Footwear,Industrial Manufacturing
Automation Level :
Semi-automatic
Control System :
Touch Screen/ Button Operation
Frame Material :
High-Strength Steel
Control Method :
Electronic Control + Manual Adjustment
Noise Level :
≤ 80 dB
Humidity Range :
≤ 85% RH
Description

Precision Hook and Loop Laminating Machine for Stable Operation

The Hook and Loop Backside Hot Melt Adhesive Coating Machine is designed for applying hot melt adhesive to the backside of hook and loop tapes or other strip materials. It is widely used in garment, footwear, luggage, medical, and sports equipment industries. Equipped with precise tension and speed control, length setting, automatic cutting, and torque-controlled winding, this machine delivers fully automated, high-efficiency production, making it one of the most ideal hook and loop adhesive coating machines in the domestic market.

Main Features
  • Accurate Adhesive Coating - Ensures uniform hot melt adhesive application for stable bonding performance.
  • Smart Control System - Automatic tension and speed control for consistent coating quality.
  • Length Setting Function - Adjustable length setting for different production needs.
  • Automatic Cutter - Cuts automatically after coating to improve efficiency and reduce manual work.
  • Torque-Controlled Winding - Ensures smooth and wrinkle-free winding.
  • Energy Efficient - High-efficiency heating with intelligent temperature control to reduce energy consumption.
Main Technical Parameters:
Model: HY-VT220
Linear speed: 10～50m/min
Max.tension of yam: 500N
Tape qty: 1-4pc
Max width: 220mm
Hot melt adhesive capacity: 60kg
Reverse motor: 220v,200w
Pump motor: 380v,0.75*2kw
Tank heating power: 380v,20kw
Spray gun heating power: 3.5kw
Output motor 380v,0.75kw
Winding motor 220v,1.1*2kw
AC 220v,0.75
Control: PLC+Frequency control
Air pressure: 6bar
Usable area: 8*2*2.3m
