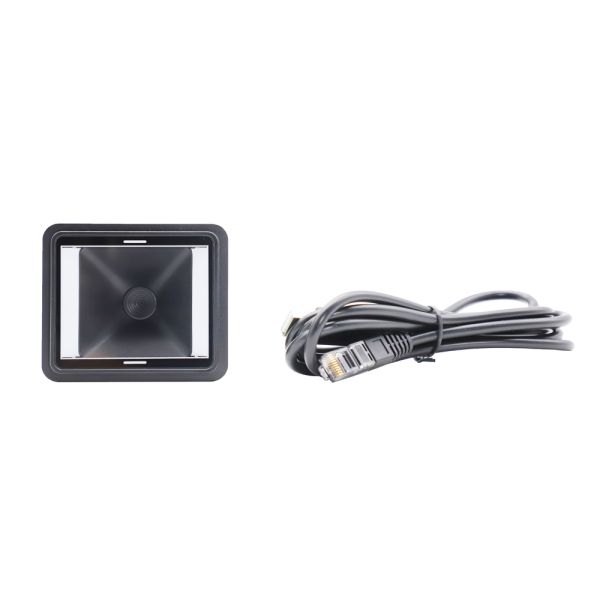

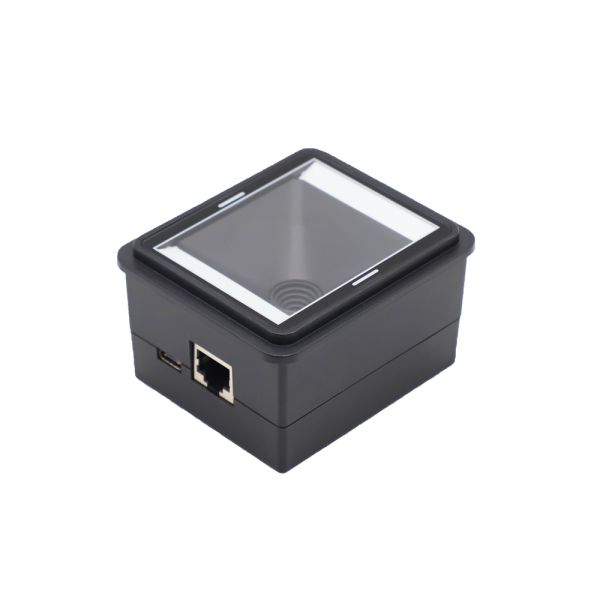

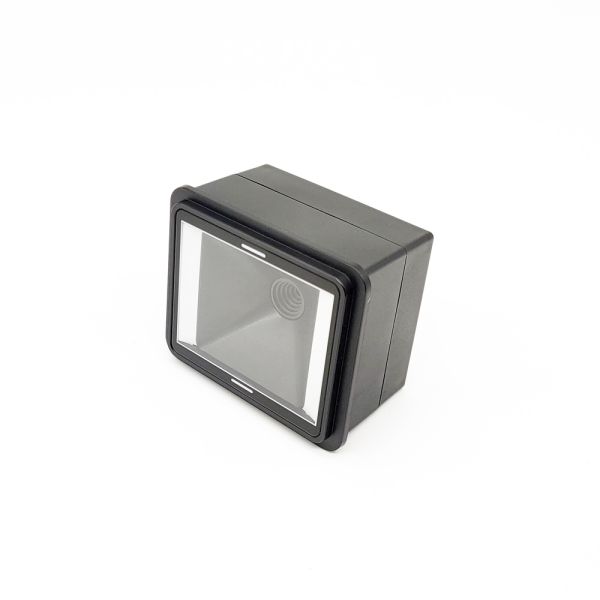

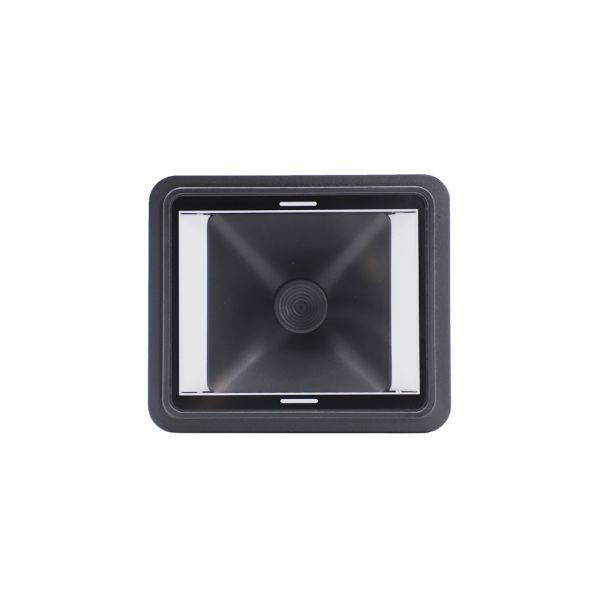

1MP 1280x800 Pixel Barcode Scanner Module 3mil High Density With Global Shutter
1MP 1280x800 Pixel Barcode Scanner Module 3mil High Density With Global Shutter
1MP 1280x800 Pixel Barcode Scanner Module 3mil High Density With Global Shutter
1MP 1280x800 Pixel Barcode Scanner Module 3mil High Density With Global Shutter
1MP 1280x800 Pixel Barcode Scanner Module 3mil High Density With Global Shutter
1MP 1280x800 Pixel Barcode Scanner Module 3mil High Density With Global Shutter
1MP 1280x800 Pixel Barcode Scanner Module 3mil High Density With Global Shutter
1MP 1280x800 Pixel Barcode Scanner Module 3mil High Density With Global Shutter
Specifications
Brand Name :
HONORWAY
Model Number :
HW-1851
Certification :
CE ROHS FCC ISO9001
Place of Origin :
China
MOQ :
2
Price :
$35/pcs
Payment Terms :
T/T
Supply Ability :
10Kpcs/month
Delivery Time :
3-7days
Product Name :
Barcode Reader Module replacing NLS-FM25
Exposure :
Global shutter 120fps
Decoding capacity :
Support paper and screen 1D barcodes+2D QR
Resolution :
1MP 1280*800pixels
Precision :
1D-3mil, 2D-5mil
Dimensions :
77.8(D)*66.4(W)*44.7(H)mm
Working Voltage :
DC 4-6V, default 5V
Application :
Self-service machine
Description
1MP 1280*800 Pixel Resolution 3mil High Density Global Shutter Barcode Scanner Module replacing NLS-FM25
Product Overview

HW-1851 - High-Resolution 1MP Embedded 2D Barcode Scanner with Global Shutter

The HW-1851 is a professional-grade embedded barcode scanner module built around a 1MP global shutter CMOS sensor (1280*800 pixels) and a 32-bit 1GHz CPU. It delivers ultra-fast, precise decoding of 1D/2D barcodes from both paper labels and electronic screens, with a minimum resolution of 3mil for 1D codes - ideal for high-density applications.

Key Features
  • 1MP Global Shutter Sensor - 1280*800 resolution, 120fps capture eliminates motion blur for moving barcodes.
  • High-Speed Decoding - 32-bit 1GHz processor ensures instantaneous read response.
  • Paper & Screen Reading - Reliably decodes QR, PDF417, Data Matrix, Aztec, Hanxin, and all standard 1D symbologies (EAN/UPC, Code128, Code39, Interleaved 2 of 5, Codabar, etc.).
  • Exceptional Sensitivity - Extremely low light contrast requirement (20%) and white LED illumination (6500K) for challenging environments.
  • Multiple Trigger Modes - Manual, auto-sensing, continuous, and host mode for flexible integration.
  • Dual Interface Options - RJ45 connector (USB D+/D-, TTL TX/RX, trigger, reset) and standard USB-C port (4.5-6.5VDC input).
  • Customizable Extras - Optional 13.56MHz NFC (Mifare/ISO14443) and OCR-A/B MRZ reading.
Technical Specifications
Decoding Precision 1D 3mil / 2D 5mil
Field of View 66° (H) * 50° (V)
Scan Angles 360° rotation, ±55° tilt/skew
Typical Depth of Field 25-150mm (10mil Code39), 25-150mm (15mil QR), 20-110mm (8mil Data Matrix)
Power Requirements DC 4-6V (default 5V), 190mA max
Operating Temperature -20℃ to 60℃
Storage Temperature -40℃ to 70℃
Light Immunity 100,000 Lux
Durability 1.8m drop test
Dimensions 77.8*66.4*44.7mm
Weight 70g
Typical Applications
  • Public transport: bus ticket validators, turnstiles
  • Unattended vending machines and kiosks
  • Access control and time attendance terminals
  • Industrial production line data capture
