Specifications
Brand Name :
HONORWAY
Model Number :
HW-1560S
Certification :
CE ROHS FCC ISO9001
Place of Origin :
China
MOQ :
2
Price :
$12
Payment Terms :
T/T
Supply Ability :
10Kpcs per month
Delivery Time :
3-7days
Product Name :
sunlight readable barcode reader module
Light Source :
White LED(semi-transparent)
View Angle :
76.7°(H) x53.4°(V),wide angle
Camera Resolution :
0.3MP 640*480
Anti-sunshine :
Support
Typical DOF :
25-150mm(15mil QR)
Interface :
RS232(DB9), USB(HID, COM),TTL232(UART)
Application :

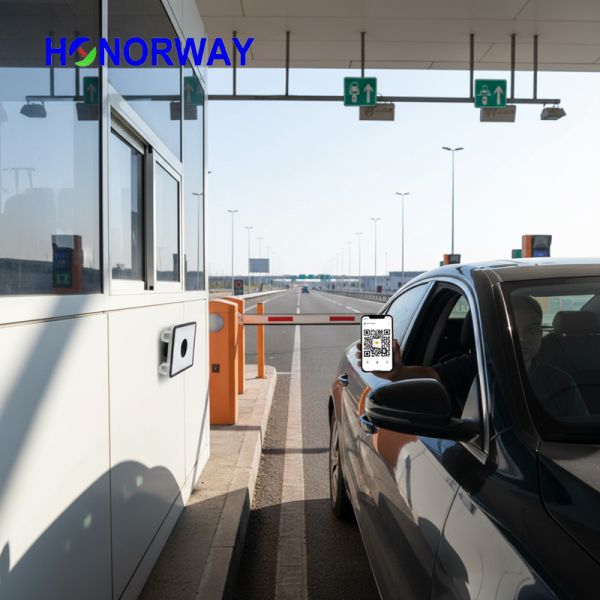

Access control, Parking, Kiosk etc.
Description
HW-1560S Barcode Scanner Module: Ultra-Compact Design with Superior Sunlight Readability
The HW-1560S is a high-value barcode scanner module that supports both 1D and 2D barcode decoding. With compact dimensions of just 56 × 33 × 14 mm, its remarkably low 14 mm profile makes it ideal for integration into tablets and other space-constrained devices. Engineered for reliable performance in diverse lighting conditions, the module excels at reading QR codes from screens—whether indoors or under direct sunlight.
An integrated black plastic light-absorbing component surrounding the camera effectively minimizes reflected light interference, ensuring clean image capture for consistent decoding.
Key Features
  • Image-Based Decoding: Utilizes advanced imaging technology to accurately read both printed and screen-displayed 1D and 2D barcodes
  • Anti-Sunlight Reflection: Delivers dependable screen barcode reading even in bright outdoor environments
  • Wide-Angle Lens & Close-Range Focus: Simplifies user alignment with an extended depth of field, ideal for close-proximity scanning
  • Ultra-Compact Form Factor: Enables seamless integration into space-sensitive devices such as handheld terminals and kiosks
  • Cost-Effective Excellence: Combines robust scanning performance with an accessible price point
Technical Specifications
Image Sensor CMOS
Exposure Roller shutter
Resolution 0.3MP 640×480 pixels
Decoding Capacity Support paper and screen barcodes
2D: QR, PDF417, MICROPDF417, DATAMATRIX, etc.
1D: UPC-A, UPC-E, EAN-13, ISBN10, ISBN13, EAN-8, CODE39, CODE 11, CODE 93, CODE128, INTERLEAVED25, INDUSTRIAL25, MATRIX25, S25, CODE 32, TRIOPTIC39, GS1_128, CODABAR, MSI, CHINA POST, TELEPEN, RSS, GS1_DATABAR, GS1_DATABAR_LIM, GS1_DATABAR_EXP, etc.
Precision 5mil @code39
Light Source LED (630nm±10nm)
View Angle 76.7°(H) × 53.4°(V)
Scan Angle Rotation 360°, tilt ±55°, skew ±55°
Min Contrast 25%
Anti-Sunshine Support
Typical DOF 15-100mm (5mil code39), 15-150mm (10mil code39), 15-110mm (5mil UPCA), 15-120mm (10mil UPCA), 25-150mm (15mil QR), 15-150mm (8mil QR), 12-110mm (5mil PDF417), 11-130mm (8mil Data Matrix)
Performance may be impacted by bar code quality and environmental conditions
Interface RS232 (DB9), USB (HID, COM), TTL232
Working Voltage DC 5V
Current 250mA (Max), 100mA (standby), 1mA (sleep)
Dimensions 56 × 33 × 14 mm
Weight 15g (without cable)
Indication Buzzer & LED
Working Temperature -30°C to 65°C
Storage Temperature -40°C to 70°C
Humidity 5%-95% (Non-condensing)
Light Immunity 0-100,000 Lux
Drop Test 1.3M (6ft)
Target Applications
The HW-1560S is ideally suited for applications requiring reliable screen barcode reading in high-ambient-light environments, compact integration, and strict cost efficiency. It is a particularly strong fit for access control systems, especially in outdoor or brightly lit settings where standard scanners may struggle.
