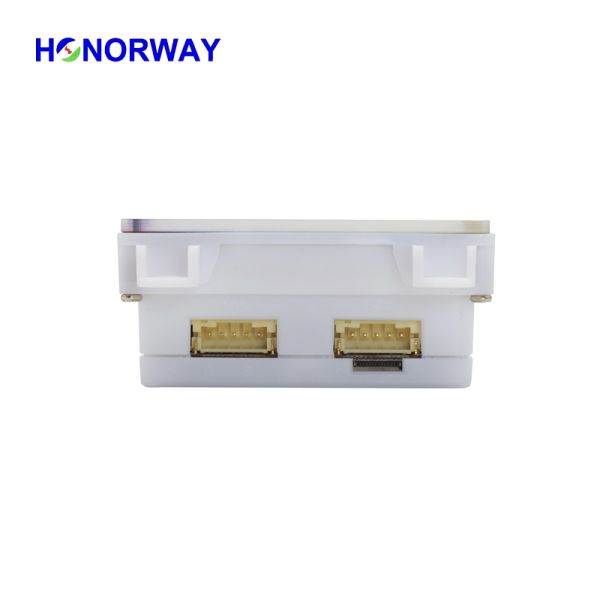

12V Wide Angle Anti Glare Barcode Scanner Module With Wiegand RS485 Interface
12V Wide Angle Anti Glare Barcode Scanner Module With Wiegand RS485 Interface
12V Wide Angle Anti Glare Barcode Scanner Module With Wiegand RS485 Interface
12V Wide Angle Anti Glare Barcode Scanner Module With Wiegand RS485 Interface
12V Wide Angle Anti Glare Barcode Scanner Module With Wiegand RS485 Interface
12V Wide Angle Anti Glare Barcode Scanner Module With Wiegand RS485 Interface
Specifications
Brand Name :
HONORWAY
Model Number :
HW-1930
Certification :
CE ROHS FCC ISO9001
Place of Origin :
China
MOQ :
2
Price :
10
Payment Terms :
T/T
Supply Ability :
10Kpcs/month
Delivery Time :
3-7days
Product Name :
Sunlight readable barcode reader module
Working Tem :
-30~70℃
Dimensions :
65*61*28mm
Weight :
30g(without cable)
Interface :
USB(HID, COM),TTL232; RS232,wiegand,RS485(optional)
Reading Distance :
10-190mm(20mil QR 10bytes)
Working Voltage :
3.3V,5V,12V,16V DC
Features :
NFC,OCR,MRZ is optional
Application :
Subway turnstile, access control system,Vending machine etc.
Description
HW-1930 OEM 12V Wide Angle Anti-glare Barcode Scanner Module
Professional barcode scanner module with Wiegand RS485 interface designed for access control systems and transit gates.
Product Overview
Purpose-built for continuous operation in transit gates and secure entry points, the HW-1930 combines high-speed scanning with exceptional environmental adaptability. Its 0.3MP global shutter sensor captures QR codes from reflective mobile screens without glare interference, even under direct sunlight. A protective acrylic cover shields the optics from dust while maintaining scan clarity.
With support for USB, TTL, RS232, RS485, and Wiegand interfaces, and a wide 3.3V-16V power input, the module simplifies hardware integration across diverse platforms. Optional upgrades include a built-in 13.56MHz RFID reader for hybrid QR + card reading, as well as an OCR variant for passport and ID document MRZ recognition.
Key Advantages
  • Glare-resistant imaging ensures reliable mobile barcode reading in outdoor or brightly lit environments
  • Configurable interface and power options reduce design complexity
  • Available with RFID or OCR functionality for multi-credential applications
  • Proven 24/7 reliability—currently in service on Ho Chi Minh City's first metro line since 2023
  • Optimized for turnstiles, gated entry, and access control systems where uptime is critical
Technical Specifications
Image Sensor CMOS
Exposure Global shutter
Resolution 640*480 pixels at 120fps
Decoding Capacity Supports paper and screen barcodes
2D Code Support QR Code, Data Matrix, PDF417, Hanxin code, Dot code, etc.
1D Code Support UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Industrial 2 of 5, Matrix 25, Standard 25, Codabar, MSI/MSI Plessey, GS1 DataBar, and all normal 1D codes
Precision 4mil
Light Source LED (630nm±10nm)
View Angle 61°(H) * 48°(V)
Scan Angle Rotation 360°, tilt ±60°, skew ±60°
Minimum Contrast 25%
IR Sensing Supported
Typical Depth of Field 10-130mm (5mil Code39), 30-300mm (20mil Code39), 10-140mm (5mil Code128), 10-260mm (100% UPCA), 10-190mm (20mil QR), 10-90mm (5mil PDF417), 10-80mm (10mil Data Matrix)
Performance may be impacted by barcode quality and environmental conditions
Interface USB (HID, COM), TTL232, RS232, Wiegand, RS485 (optional)
Working Voltage 3~3.6V or 3.6~16V, standard 5VDC
Current <200mA (3.3V input), <150mA (5V input), <10mA (standby)
Dimensions 65*61*28mm
Weight 30g (without cable)
Indication Buzzer & LED
Proven Deployment
The HW-1930 was selected for Ho Chi Minh City Metro Line 1 as the primary QR code reader module, operating continuously for over three years without failure. In access control, it is commonly deployed in QR + RFID configurations with 12V DC and Wiegand output, meeting the strict durability and security standards of modern entry systems.
