86x86mm IP65 Waterproof Barcode Scanner Dual Frequency 13.56MHz 125KHz For Access Control
86x86mm IP65 Waterproof Barcode Scanner Dual Frequency 13.56MHz 125KHz For Access Control
86x86mm IP65 Waterproof Barcode Scanner Dual Frequency 13.56MHz 125KHz For Access Control
86x86mm IP65 Waterproof Barcode Scanner Dual Frequency 13.56MHz 125KHz For Access Control
86x86mm IP65 Waterproof Barcode Scanner Dual Frequency 13.56MHz 125KHz For Access Control
86x86mm IP65 Waterproof Barcode Scanner Dual Frequency 13.56MHz 125KHz For Access Control
Specifications
Brand Name :
HONORWAY
Model Number :
HW-1820
Certification :
CE FCC ROHS ISO9001
Place of Origin :
China
MOQ :
1
Price :
$20-28/pcs
Payment Terms :
T/T
Supply Ability :
10kpcs per month
Delivery Time :
1-7days
Packaging Details :
Paper Box
Symbol :
1D Barcode, 2D QR code
Frequency :
Dual,13.56MHz,125KHz optional
Data format :
Editable
Fill light :
White LED
Size :
86*86*18mm
IP protective :
IP65 is optional
Advatage :
Multiple functions, multiple interface
Application scenarios :
Hotel room door, Access control
Description
86×86mm Water Proof IP65 Barcode Scanner 13.56MHz NFC Mifare 125KHz EM Card Dual Frequency QR RFID Reader
Simplify your entrance management with the HW-1820, the intelligent reader that handles every credential type you need. Whether your users prefer physical cards (Mifare, EM) or the convenience of their phones (QR codes and NFC), this powerful device delivers fast, accurate recognition. Designed to cover all access control requirements, it perfectly bridges the gap between permanent user systems and flexible visitor management.
Key Advantages
  • All-in-One Efficiency: Replace clunky multi-device setups with one sleek reader, cutting costs and creating a cleaner, more user-friendly entry point.
  • Never Miss a Credential: Effortlessly read paper barcodes, RFID cards, and smartphone-based digital passes. It's the ultimate tool for hybrid environments.
  • Plug-and-Play Integration: Connect easily to your existing system through a wide selection of industry-standard interfaces including USB, RS485, and Wiegand.
  • Built to Last: Its compact, rugged design withstands heavy use. Custom sealing options provide IP65 waterproof protection for indoor or outdoor installations.
Technical Specifications
Barcode Reading Performance
Image Sensor CMOS
Resolution 0.3MP 640×480 pixels
Decoding Capacity Support paper and screen barcodes
2D: QR, PDF417, Data Matrix code, etc.
1D: UPC-A, UPC-E, EAN-8, EAN-13, Code128, Code39, Code93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, China post, etc.
Barcode Density 8mil
Light Source 624nm Visible red LED
Scan Angle Rotation 360°, tilt ±45°, skew ±45°
Min Contrast 30%
Scanning Speed 200 times/s
Typical DOF 40-180mm (10mil code128)
45-200mm (20mil QR)
Performance may be impacted by barcode quality and environmental conditions
Card Reading Performance
RFID Frequency 13.56MHz 125KHz optional
Card Type EM card or Mifare card
Data Format Default 8 bit Hex (format customized, like 10 bit 10 system, 10 bit Hex)
Reading Distance 0-50mm (depend on card type)
Reading Rate 106K/Bit
Reading Speed 0.1S
Interval 0.5S
Reading Time ≤100ms

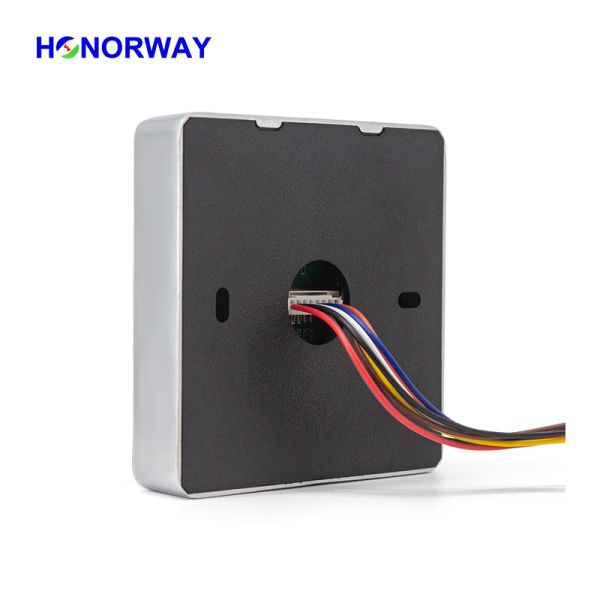

Mechanical and Electrical
Interface USB(COM), RS232, RS485, Wiegand
Working Voltage DC 8-12V
Current 800mA (working)
Dimensions 86mm×86mm×18mm
Weight 150g (NW)
Indication Buzzer & LED
Environment Requirements
Operation System Windows, Android, Mac, Linux
Working Temperature -20~60℃
Storage Temperature -40~70℃
Humidity 5%-95% (Non-condensing)
Light Immunity 0~10,000Lux
Real-World Applications

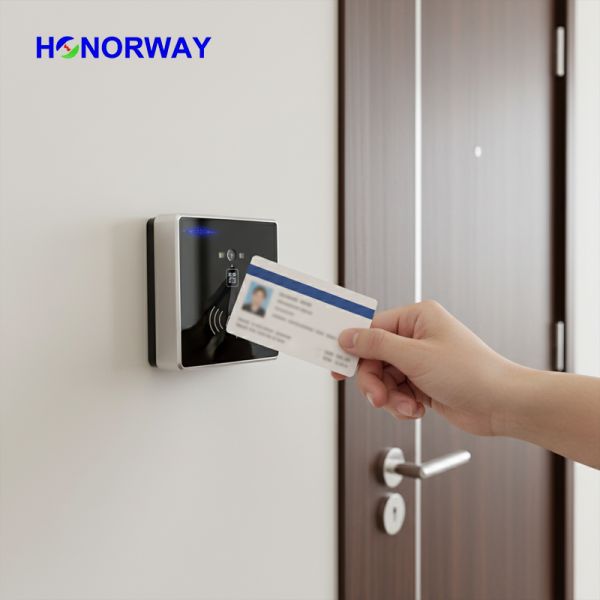

At Corporate Turnstiles: Guide all users—employees with cards and visitors with QR codes—to the same reader for an intuitive, hassle-free entry experience.
For Hotel Guest Access: Offer temporary mobile keys. When a guest is away, authorized visitors can gain room entry via a time-sensitive QR code, elevating service quality.
In Gated Communities: Empower residents with a simple way to grant secure, temporary access to visitors, reducing front-desk bottlenecks and enhancing convenience.
Adaptable, reliable, and comprehensive, the HW-1820 is the forward-thinking solution to modern access challenges, designed to enhance both security and user satisfaction.
