Embedded Ultra Slim NFC EMV QR RFID Reader For Mobile Payment And Access Control
Embedded Ultra Slim NFC EMV QR RFID Reader For Mobile Payment And Access Control
Embedded Ultra Slim NFC EMV QR RFID Reader For Mobile Payment And Access Control
Embedded Ultra Slim NFC EMV QR RFID Reader For Mobile Payment And Access Control
Embedded Ultra Slim NFC EMV QR RFID Reader For Mobile Payment And Access Control
Embedded Ultra Slim NFC EMV QR RFID Reader For Mobile Payment And Access Control
Specifications
Brand Name :
HONORWAY
Model Number :
HW-1522
Certification :
CE ROHS FCC ISO9001
Place of Origin :
China
MOQ :
2
Price :
$26-29/pcs
Supply Ability :
10Kpcs/month
Delivery Time :
3-7days
Product Name :
Embedded QR NFC EMV Reader
Reading Capacity :
1D Barcode, 2D QR, NFC,Mifare,Felica
Supported Protocol :
ISO/IEC 14443 A,ISO/IEC 14443 B, ISO/IEC 18092/NFCIP-1
Camera Parameter :
CMOS,global shutter,100fps
Reading Distance :
QR 35mil --40-200mm, NFC--0-40mm
Dimensions :
54.6×33.4×8.3mm
Interface :
12pin FFC+12pin UART 1.25mm pitch
Application :
Mobile payment, door lock, self-service machine
Description
8.3mm Thickness Embedded ISO14443 NFC EMV Wide Working Voltage QR RFID Reader For Mobile Payment And Access Control

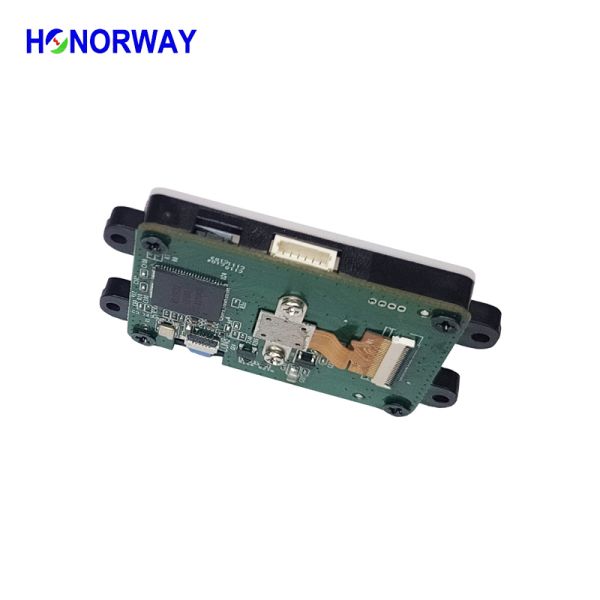

HW-1522 Embedded 2D Barcode & NFC EMV Reader Module

HW-1522 is an ultra-slim embedded scanning module integrating high-performance image scanning and NFC contactless communication. At only 8.3mm thick and 12g weight, it fits easily into space-limited devices. Using advanced CMOS image technology, it supports motion scanning and fast reading of all major 1D/2D barcodes. It fully complies with ISO/IEC 14443 A/B and ISO/IEC 18092 (NFCIP-1) to read mobile payments, ID credentials, MIFARE, FeliCa and NFC cards. It delivers all-in-one data capture for smart devices.

Key Features
  • All-in-one scanning: Reads QR, DM, PDF417, Hanxin, Code128, EAN-13, UPC and NFC cards
  • Ultra-thin & lightweight: 54.6*33.4*8.3mm, 12g, easy to embed
  • High scanning performance: 0.01s capture, motion tolerance, omnidirectional reading, anti-glare up to 100,000 Lux
  • Flexible NFC: Independent serial port, 0-4cm reading distance
  • Rich interfaces: USB, TTL (3.3V/5V), buzzer, LED, trigger
  • Wide voltage & temperature: 3-6V, -30℃ to 70℃
  • Dual connectors: 1.25mm cable & 0.5mm FPC for flexible design
Applications
  • Smart payment terminals
  • Access control & time attendance
  • Intelligent transportation: turnstiles, taximeters, parking
  • Self-service kiosks: vending, ticketing, lockers
  • Industrial IoT: production line, inspection, asset tracking
Why Choose HW-1522
All-in-one design reduces cost and space; industrial-grade durability for harsh environments; developer-friendly for fast integration.
