Highly Sensitive 1D 2D QR Barcode Reader Module Anti Sunshine Barcode Scan Engine
Highly Sensitive 1D 2D QR Barcode Reader Module Anti Sunshine Barcode Scan Engine
Highly Sensitive 1D 2D QR Barcode Reader Module Anti Sunshine Barcode Scan Engine
Highly Sensitive 1D 2D QR Barcode Reader Module Anti Sunshine Barcode Scan Engine
Highly Sensitive 1D 2D QR Barcode Reader Module Anti Sunshine Barcode Scan Engine
Highly Sensitive 1D 2D QR Barcode Reader Module Anti Sunshine Barcode Scan Engine
Specifications
Brand Name :
HONORWAY
Model Number :
HW-1266D
Certification :
CE ROHS FCC ISO9001
Place of Origin :
China
MOQ :
2
Price :
15
Payment Terms :
T/T
Supply Ability :
30Kpcs per month
Delivery Time :
3-7days
Product Name :
Anti-sunshine barcode reader module
Precision :
3mil@code39
Image Sensor :
CMOS global shutter
Light Source :
620nm Visible Red Diode, white LED for illumination(red light is optional)
Working Mode :
Manual, Continuous, Auto sensing, Host Mode etc.
Compatiable OS :
Linux, Widows, Android, Mac, POS, etc.
Indication :
Can trigger external buzzer and LED indicator
Application :
Access control,handheld IOT device, Kiosk etc.
Description

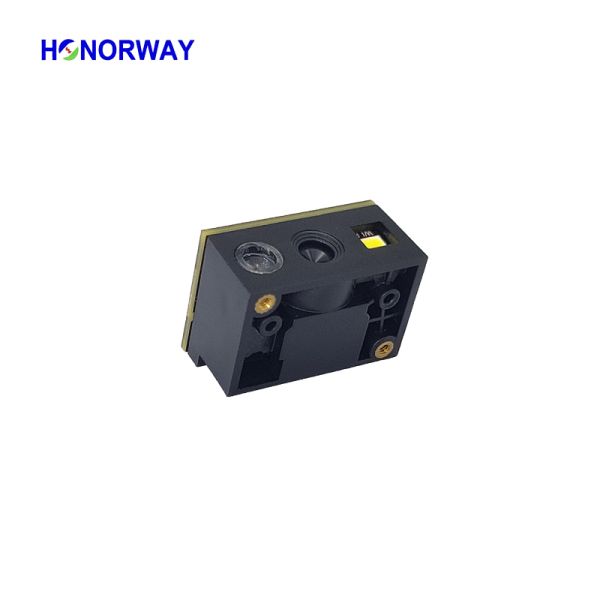

HW-1266D Highly Sensitive 1D 2D QR Barcode Reader Module
The HW-1266D is a compact embedded barcode scan engine that supports accurate decoding of both 1D and 2D barcodes. Equipped with a 0.3MP global-shutter CMOS image sensor and high-speed scanning rate of 60 frames per second, it delivers smooth and efficient scanning performance with stable hardware configuration.
Its core strength lies in the perfect combination of self-developed advanced decoding algorithms and Ingenic processor, offering strong compatibility and stability in various environments. It effectively solves the difficulty of scanning screen codes under strong sunlight reflection, and reliably reads special codes such as Datamatrix inverse codes on Russian cigarette packs and PDF417 codes on wine bottles. Supporting more than 30 languages and special characters, it is compatible with global data formats including UTF-8, GBK, and UNICODE to meet international application requirements.
Key Features
  • Ultra-compact size: Only 21.6(W)×16(D)×12(H) mm, ideal for most embedded integration demands
  • High-density barcode decoding: Capable of reading 3mil Code39, 5mil QR codes up to 1800 bytes, and other high-precision barcodes
  • Wide barcode compatibility: Uses imaging CMOS decoding technology to support both printed and on-screen 1D/2D barcodes
  • Flexible output interfaces: Supports USB, USB COM, and TTL UART via 12-pin FFC cable
  • Open development support: Provides complete SDK and command set for customer secondary development and customization
Technical Specifications
Reading Performance Image Sensor: CMOS global shutter
Resolution: 752×480 pixels, 60fps
Decoding capacity: Support paper and screen barcodes
Supported Barcodes 2D: QR, PDF417, Micro PDF417, Data Matrix, Maxicode, Aztec, Hanxin code, etc.
1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5, etc.
Precision 3mil
Light Source 620nm Visible Red Diode, white LED for illumination
View Angle 66°(H) × 50°(V)
Scan Angle Rotation 360°, tilt ±65°, skew ±65°
Min Contrast 25%
Trigger Mode Manual, Continuous, Motion sensing, Host Mode, etc.
Typical DOF EAN13 (13mil) 50-260mm, Code 39 (5mil) 25-220mm, QR code (20mil) 40-320mm, PDF417 (6.67mil) 30-180mm
Performance may be impacted by barcode quality and environmental conditions
Interface TTL232, USB (KBW/COM) by 12pin FFC flat cable (0.5mm pitch)
Working Voltage DC 3.3V
Current 160mA (working), 20mA (USB standby), 2mA (TTL standby)
Dimensions 21.6(W) × 16(D) × 12(H) mm
Weight 3.5g
Indication LED fill light (can trigger external buzzer and LED indicator)
Working Temperature -20°C to 60°C
Storage Temperature -40°C to 70°C
Humidity 5% to 95% (Non-condensing)
Light Brightness 0-100,000 LUX
Applications
As a key sensing component in the IoT ecosystem, the HW-1266D embedded scan engine is designed for device integration and widely used in various fields:
  • Handheld devices: Wired, wireless, and Bluetooth barcode scanners for retail, logistics, hospitals, industrial manufacturing, and warehouses
  • Self-service equipment: Ticket checkers, vending machines, queuing machines in hospitals and government service centers
Note: For access control systems, our modular scan engines are recommended due to wider scanning area and shorter working distance for better matching.
